Installation Procedure

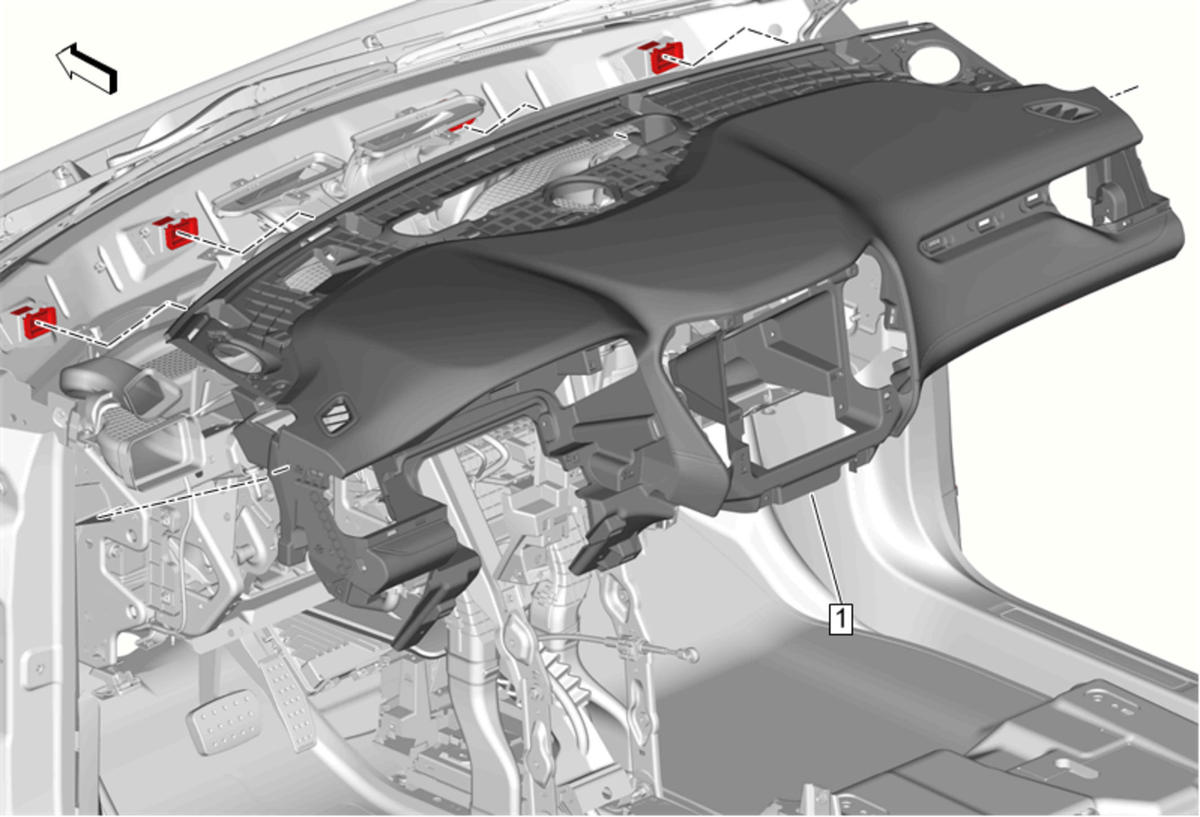

- With the aid of an assistant, load the instrument panel (1) to the instrument panel tie bar to the locator pins.
- Reposition the instrument panel wiring harness into the vehicle position as was noted in the removal and connect the fasteners securing the instrument panel wiring harness to the instrument panel (1).

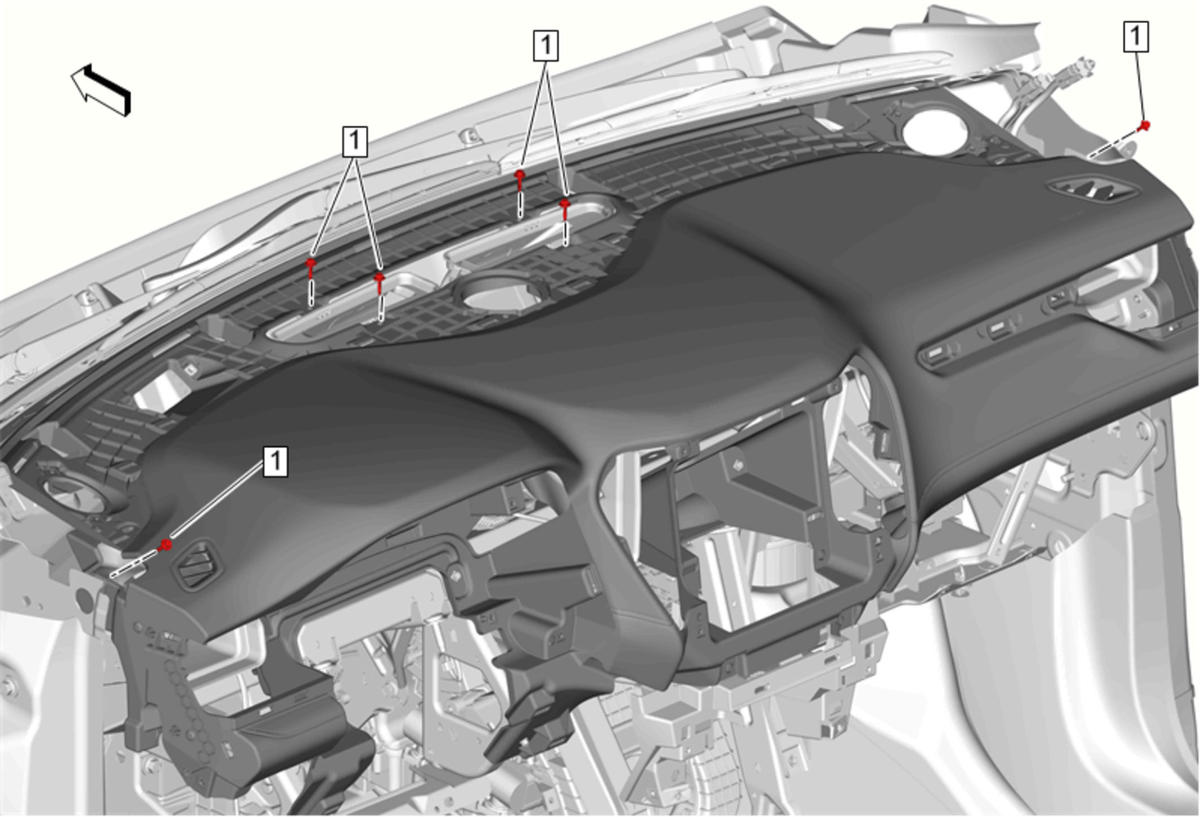

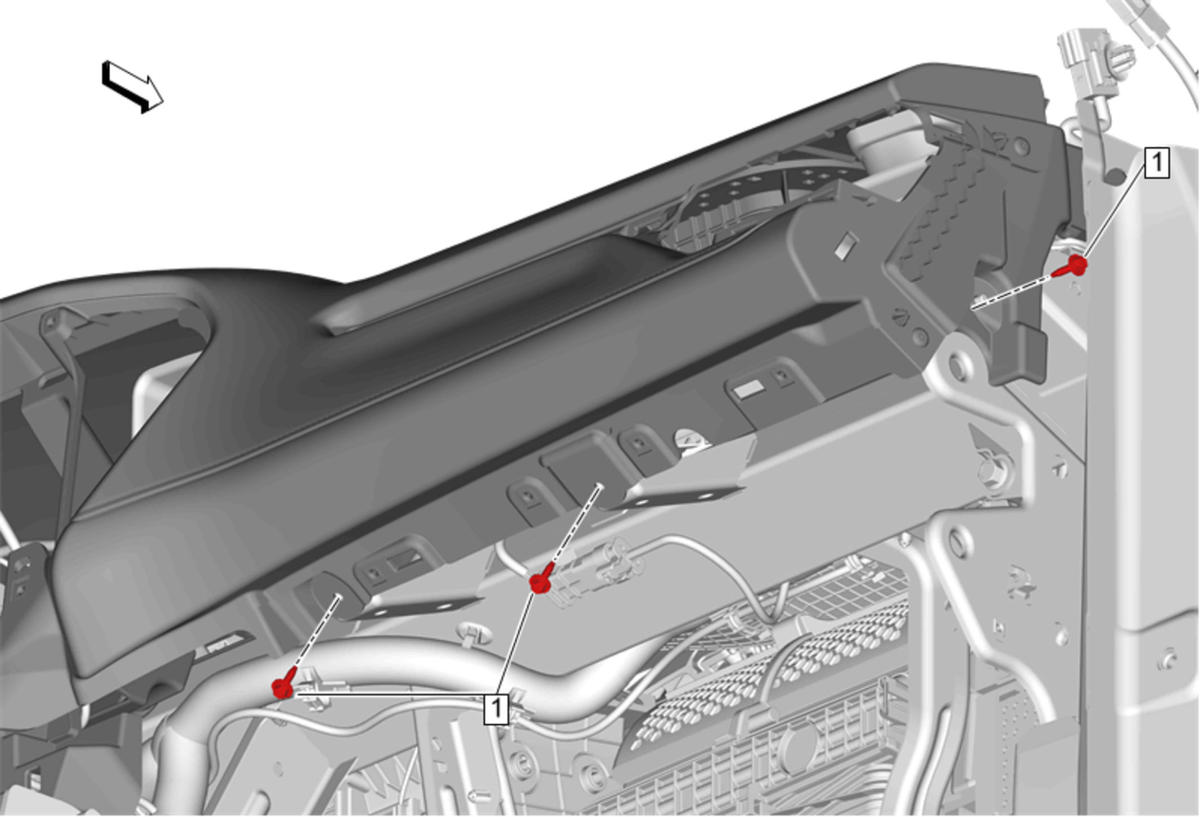

- Instrument Panel Airbag Bolt (1) - Install and tighten [3x] 9 N.m (80 lb in)CAUTION:
Refer to Fastener Caution .

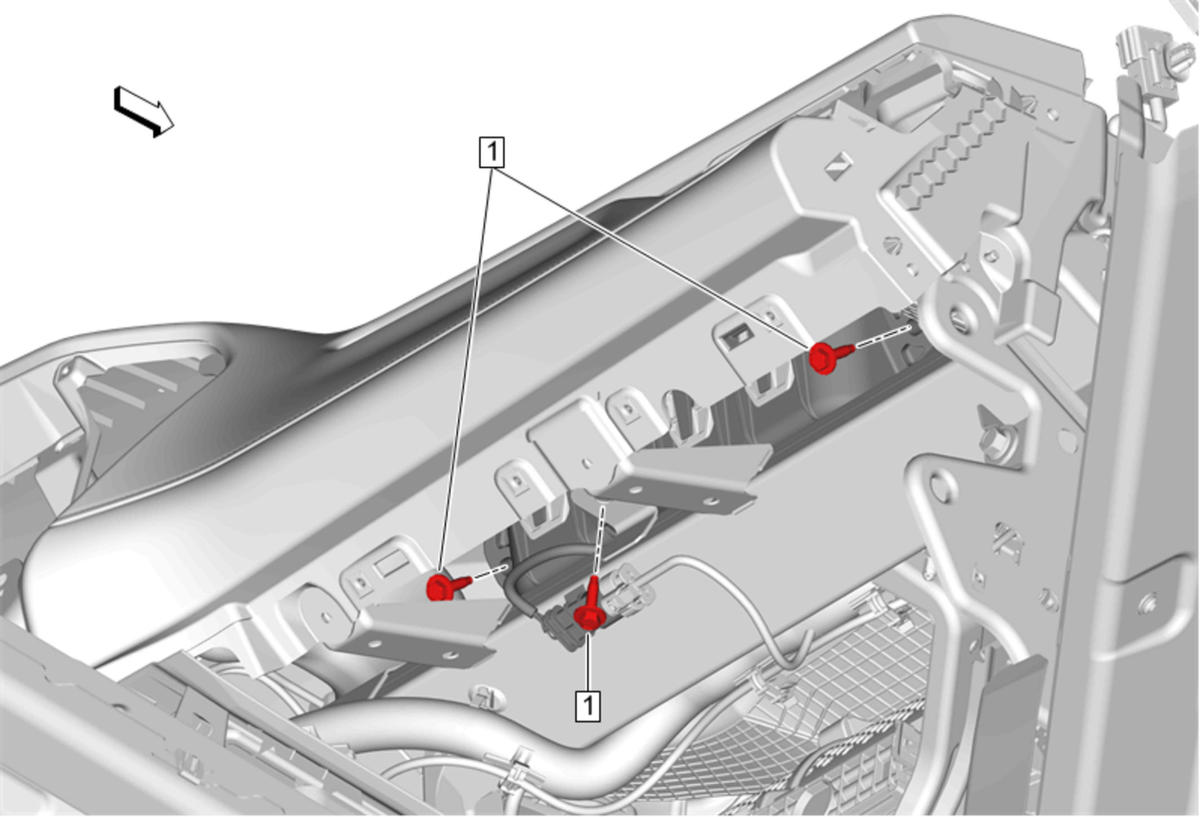

- Instrument Panel Bolt (1) - Install and tighten [3x] 2.5 N.m (22 lb in)

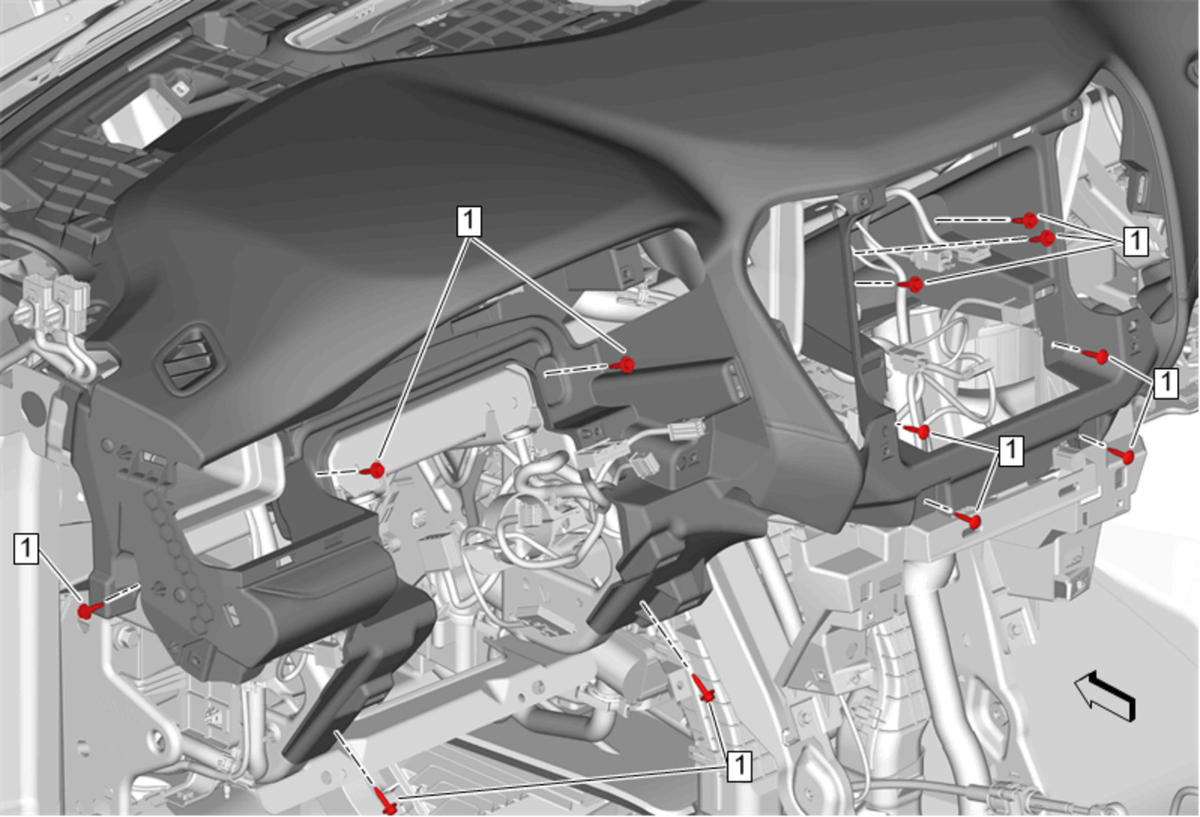

- Instrument Panel Bolt (1) - Install and tighten [12x] 2.5 N.m (22 lb in)
- Instrument Panel Bolt (1) - Install and tighten [6x] 2.5 N.m (22 lb in)

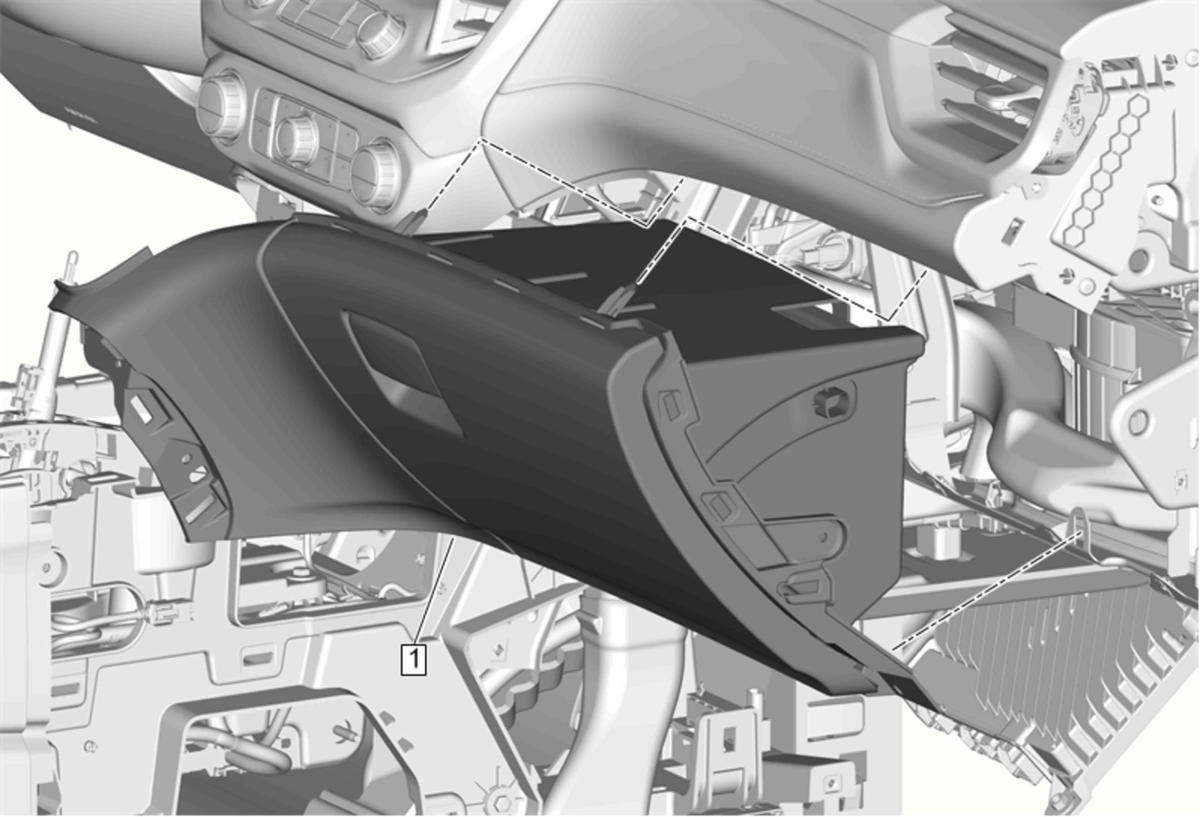

- Instrument Panel Compartment (1) - Install - Instrument Panel Compartment Replacement

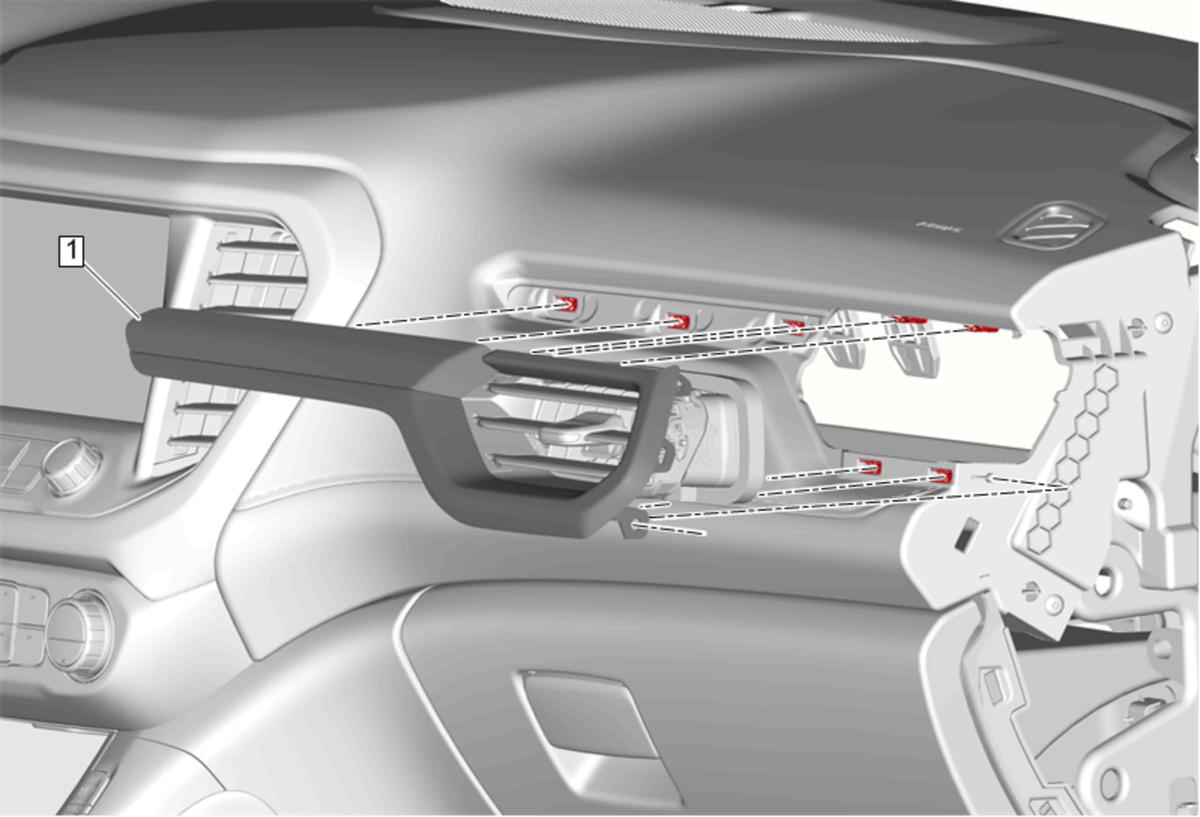

- Instrument Panel Trim Plate Applique (1) - Install - Instrument Panel Trim Plate Applique Replacement

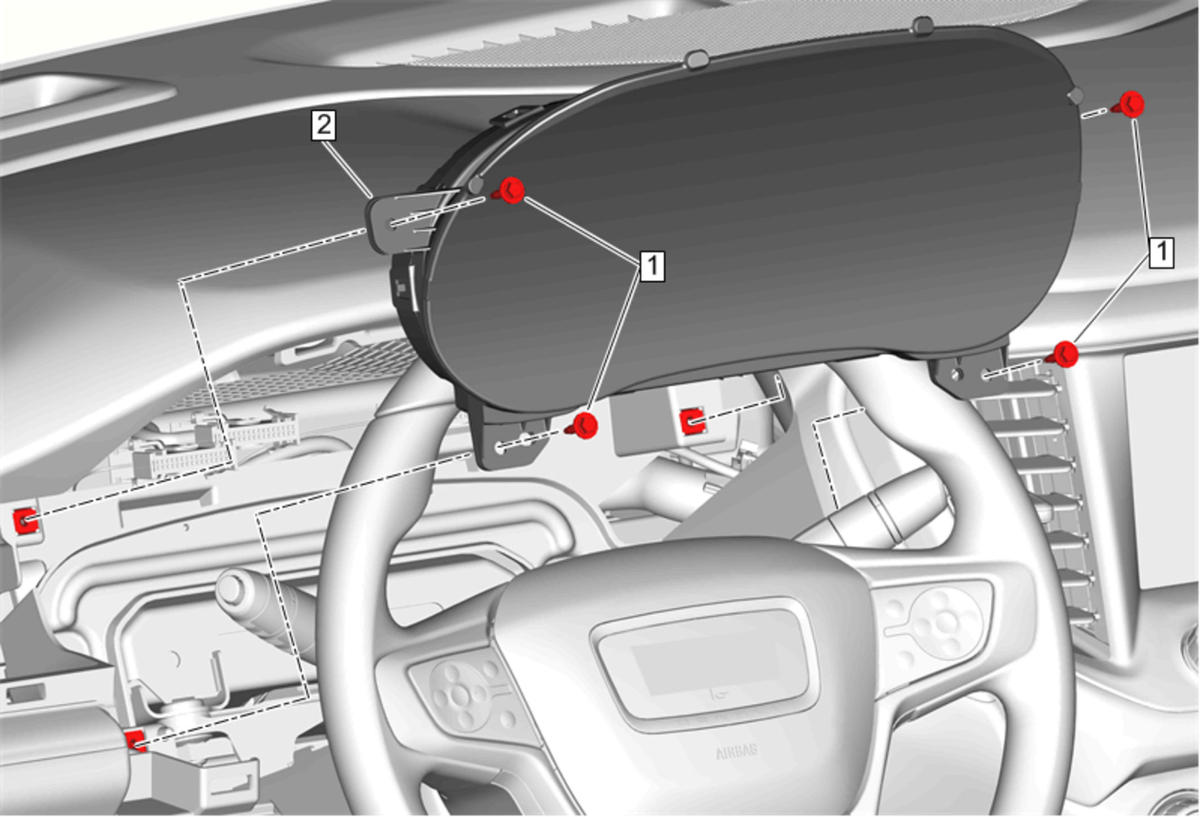

- Instrument Cluster (2) - Install - Instrument Cluster Replacement

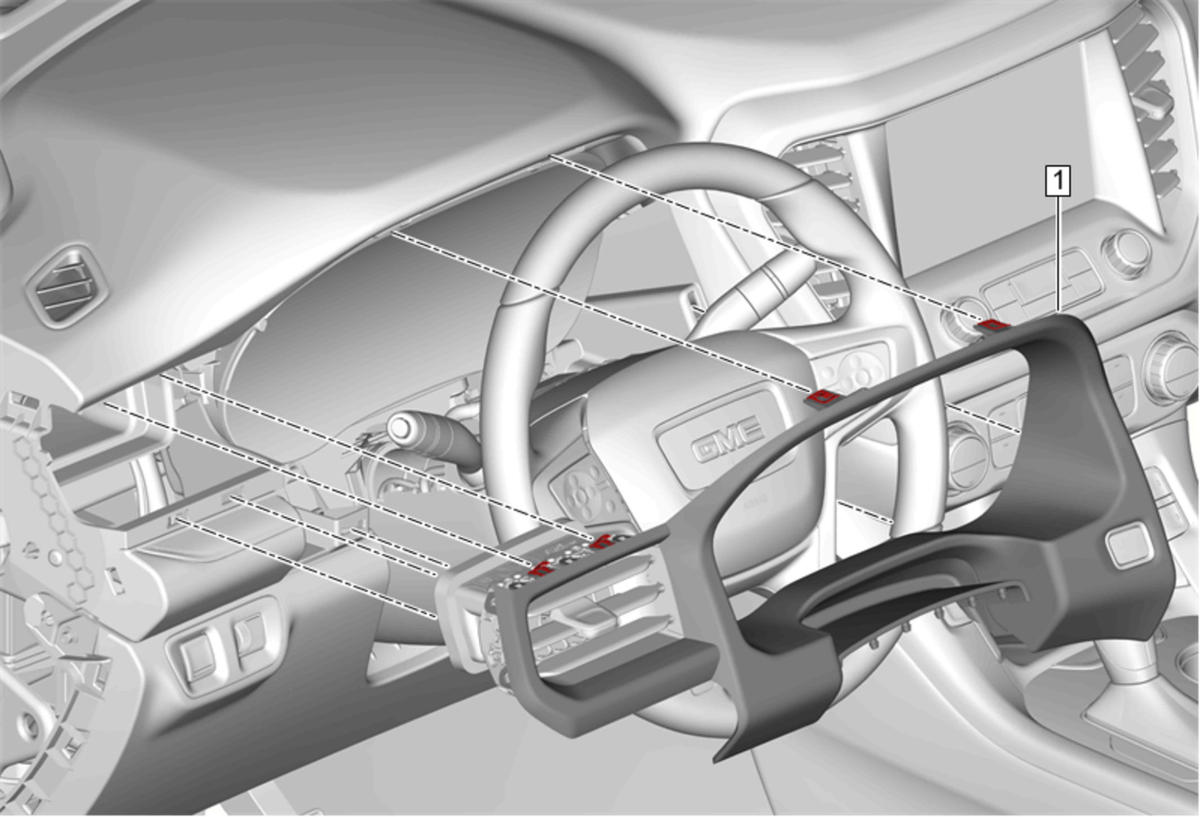

- Instrument Panel Cluster Trim Plate (1) - Install - Instrument Panel Cluster Trim Plate Replacement
- Radio Control Assembly (2) - Install - Radio Control Assembly Replacement

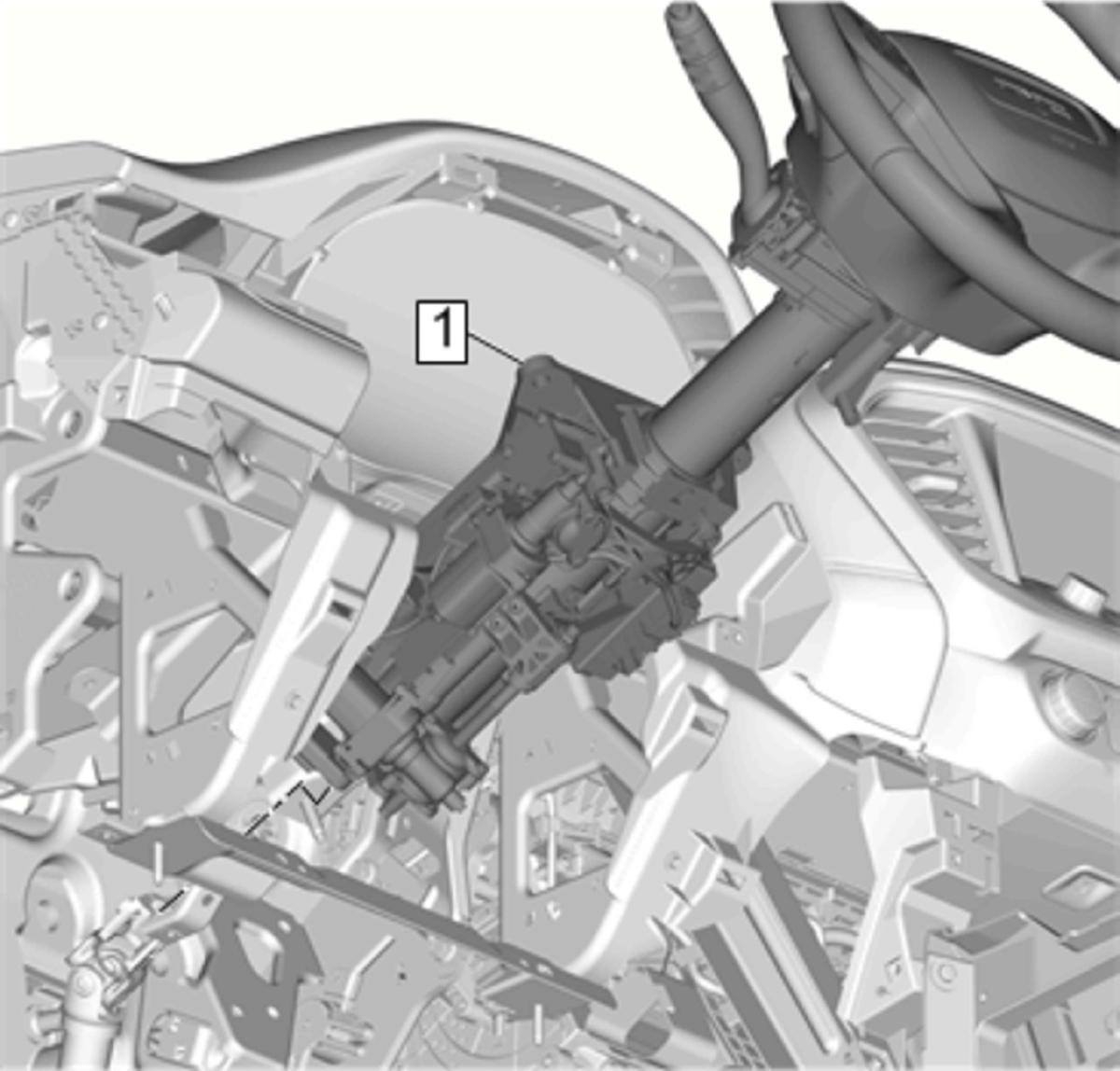

- Steering Column (1) - Install - Steering Column Replacement (N37)
, or Steering Column Replacement (N38)
- {If equipped} Forward Collision Alert Display (2) - Install - Forward Collision Alert Display Replacement

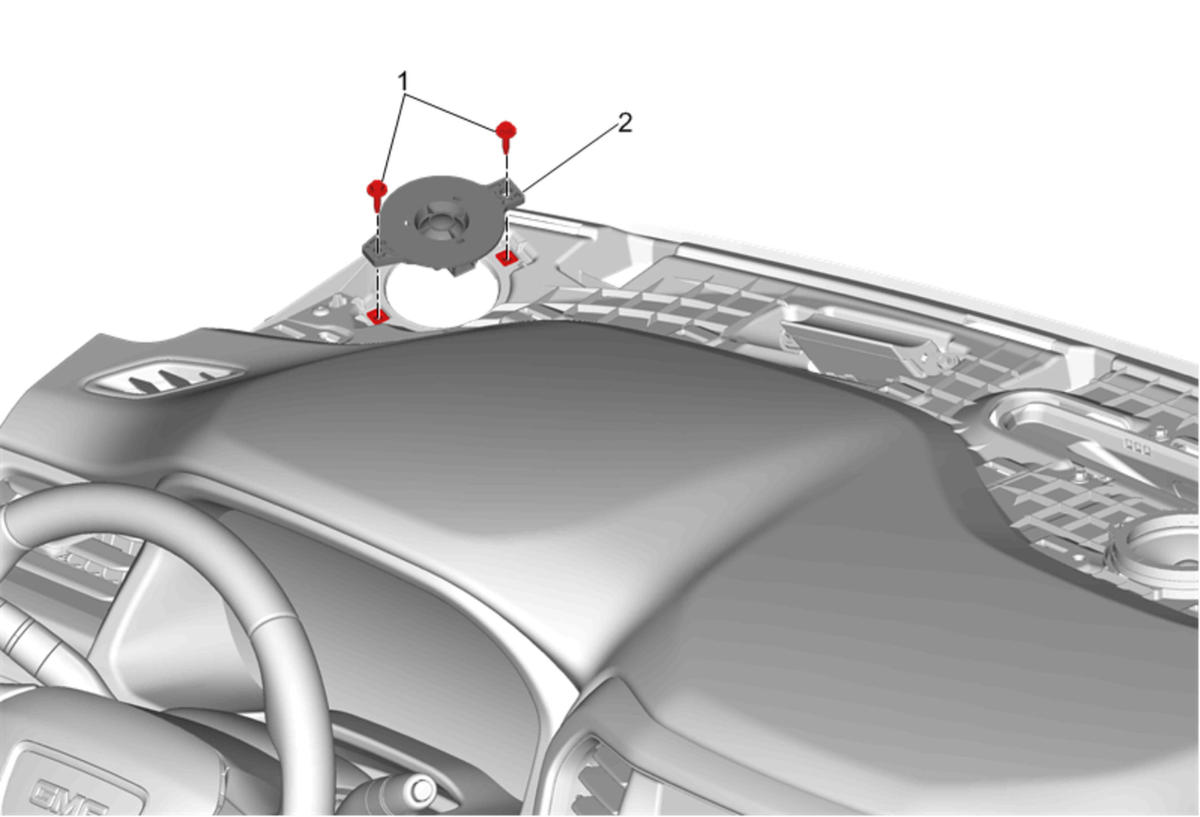

- Radio Front Center Speaker (2) - Install - Radio Front Center Speaker Replacement

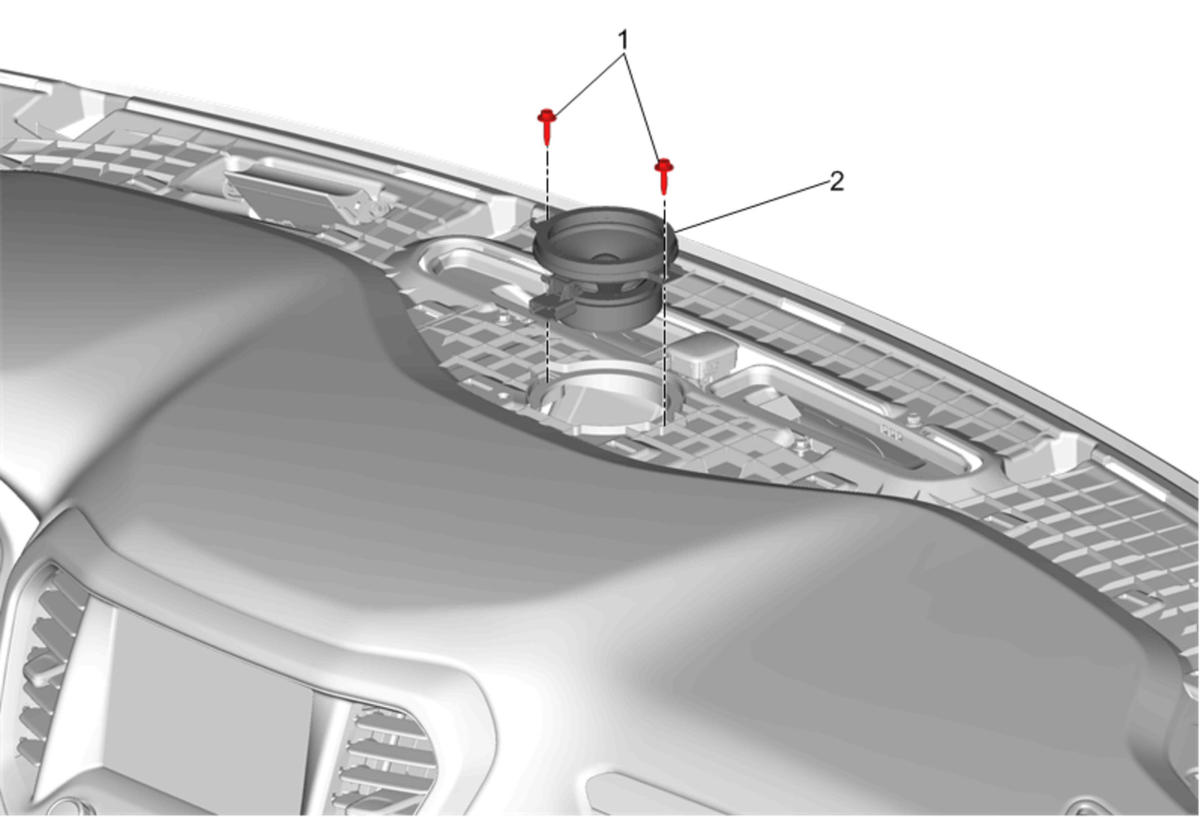

- Radio Front Speaker (2) - Install - Radio Front Speaker Replacement

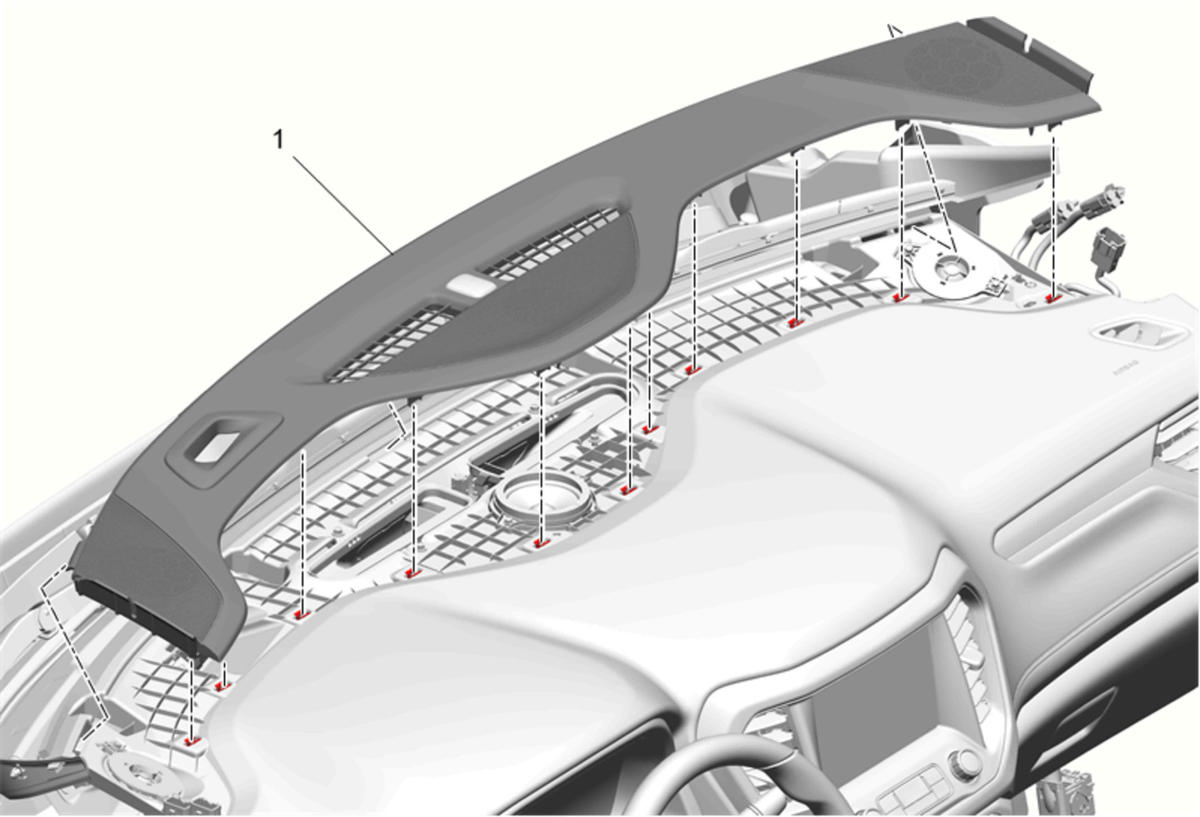

- Instrument Panel Extension (1) - Install - Instrument Panel Extension Replacement

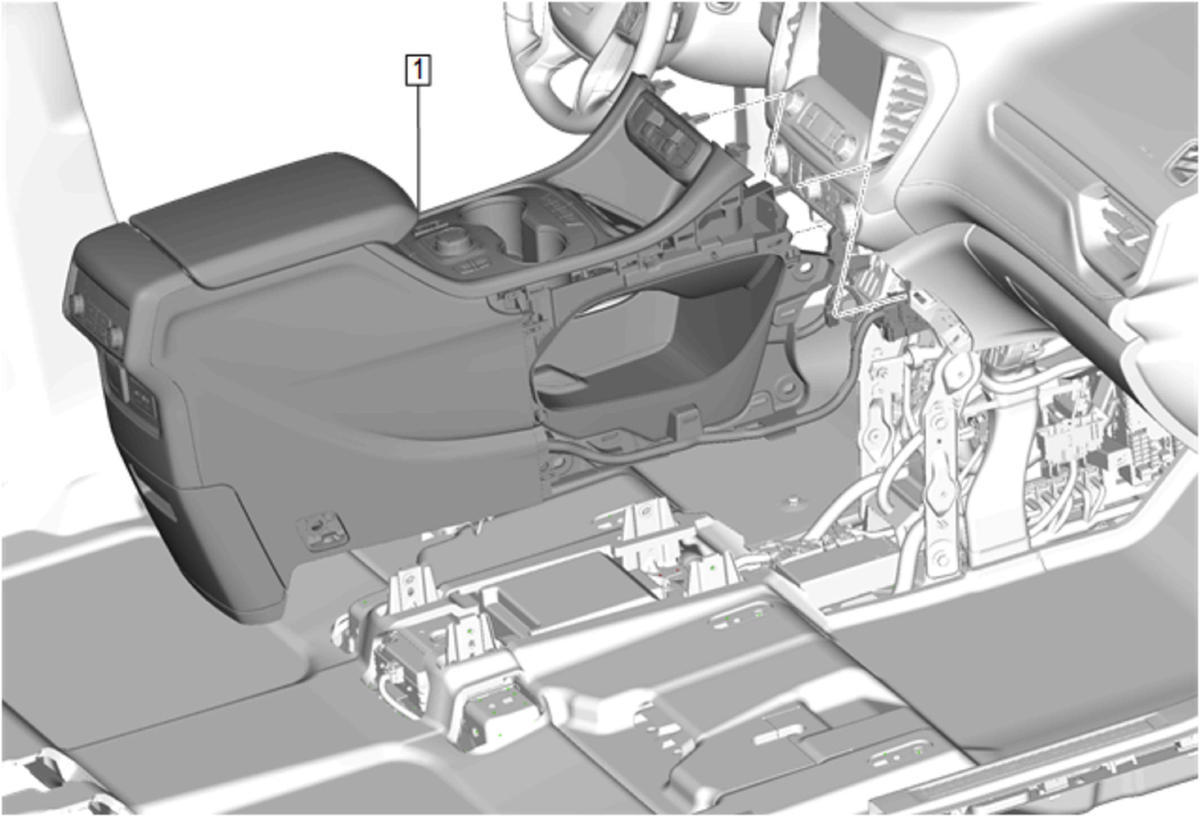

- Front Floor Console (1) - Install - Front Floor Console Removal and Installation

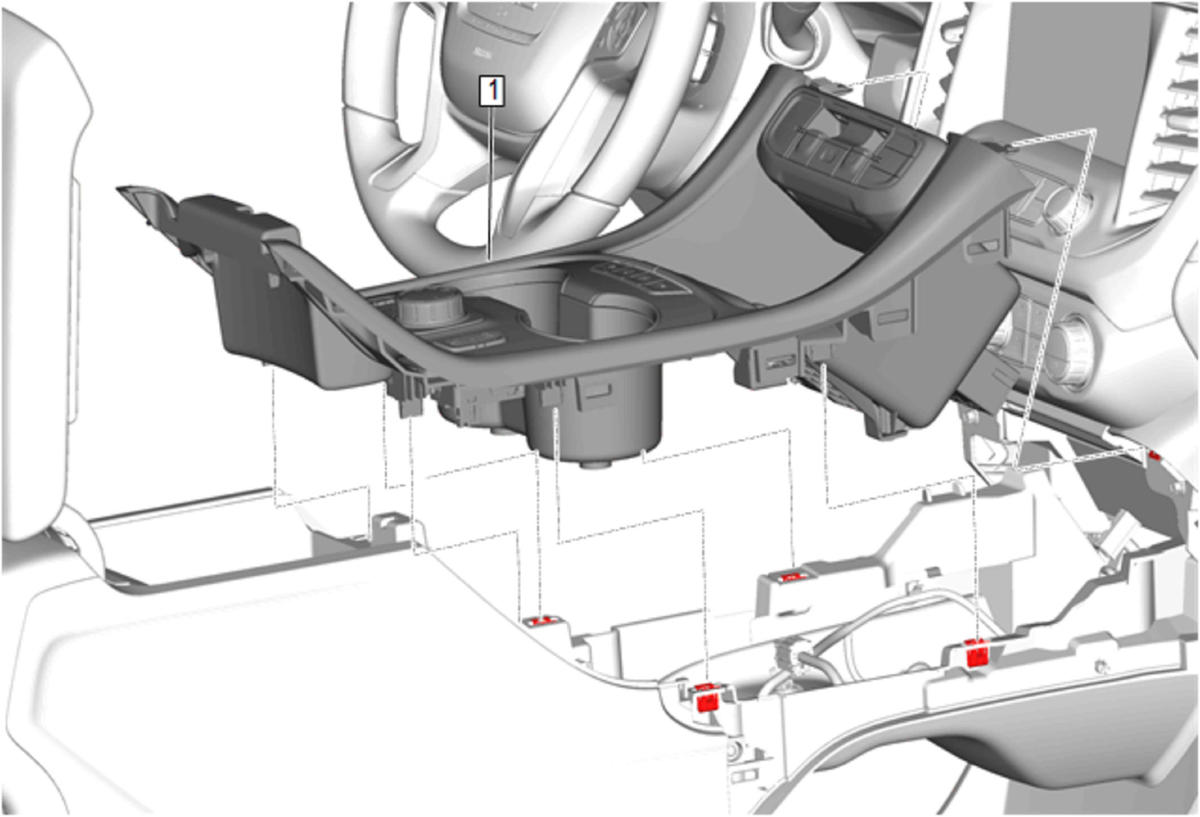

- Front Floor Console Trim Plate (1) - Install - Front Floor Console Trim Plate Replacement

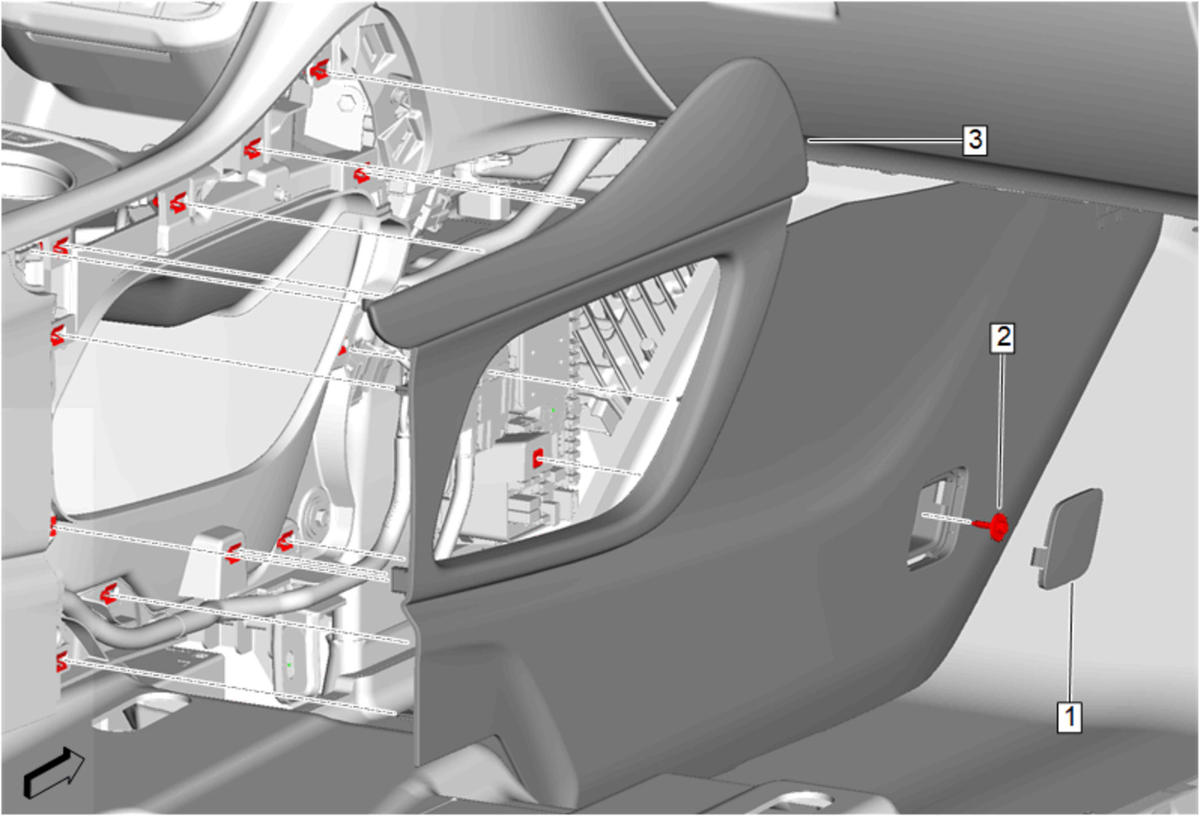

- Front Floor Console Extension Panel - Right Side (3) - Install - Front Floor Console Extension Panel Replacement - Right Side

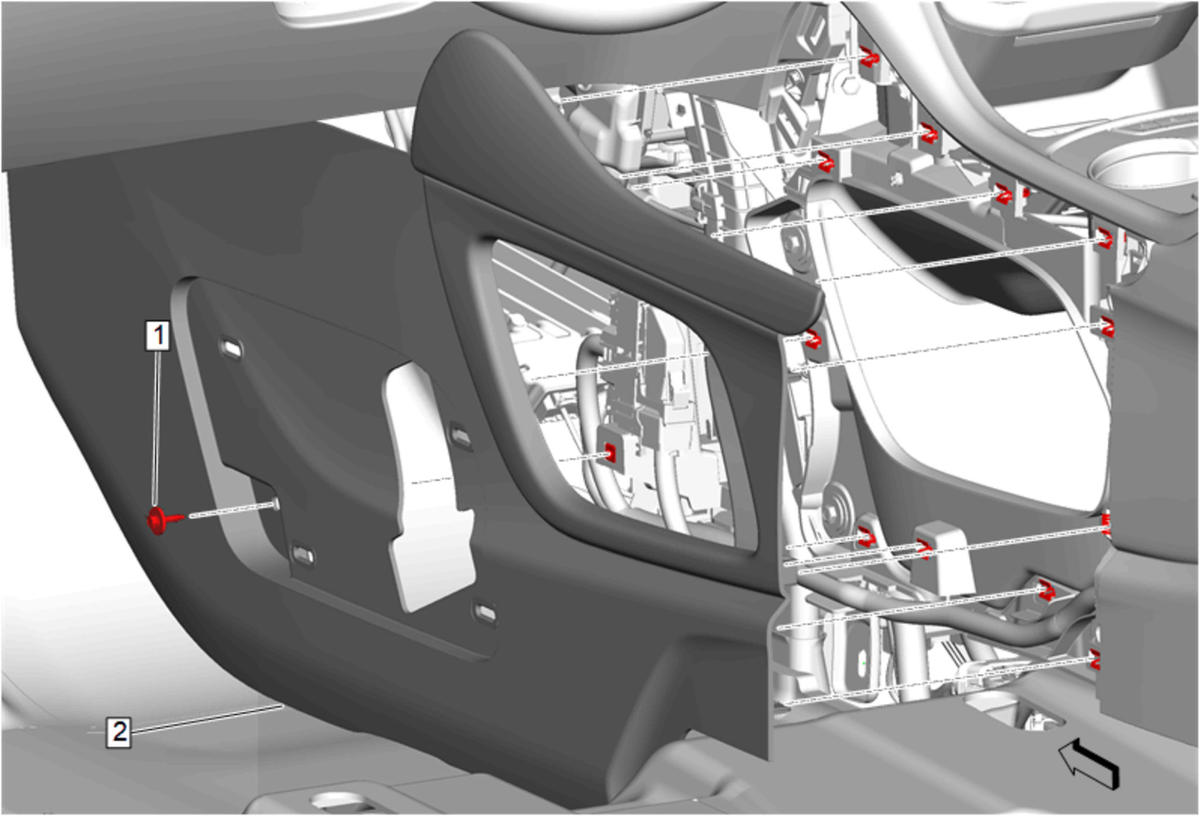

- Front Floor Console Extension Panel - Left Side (2) - Install - Front Floor Console Extension Panel Replacement - Left Side
