Rear Closure Hands Free Module Replacement

Courtesy of GENERAL MOTORS COMPANY

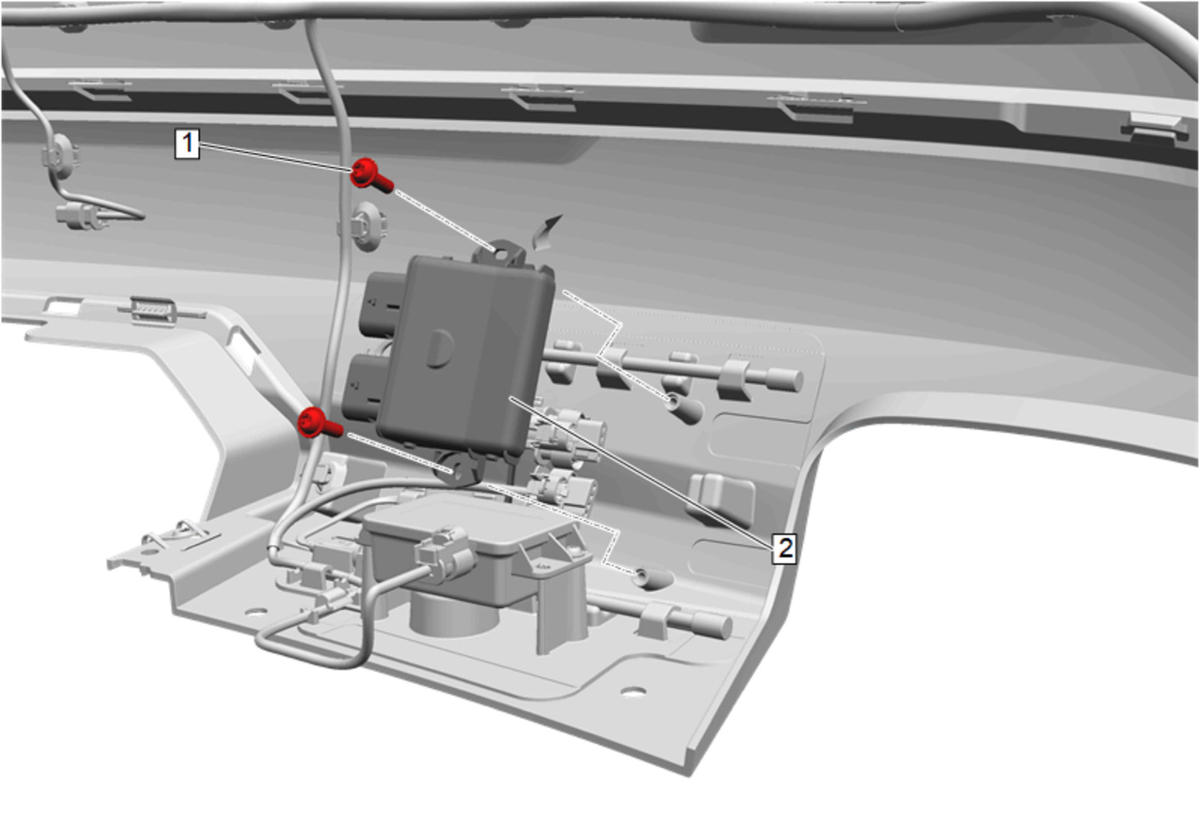

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure  REAR BUMPER UPPER FASCIA REPLACEMENT and/or REAR BUMPER LOWER FASCIA REPLACEMENT
1	Rear Closure Hands Free Module Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb in)
2	Rear Closure Hands Free Module Procedure  Disconnect all electrical connectors.
