Garage Door Opener Transmitter Replacement

Courtesy of GENERAL MOTORS COMPANY

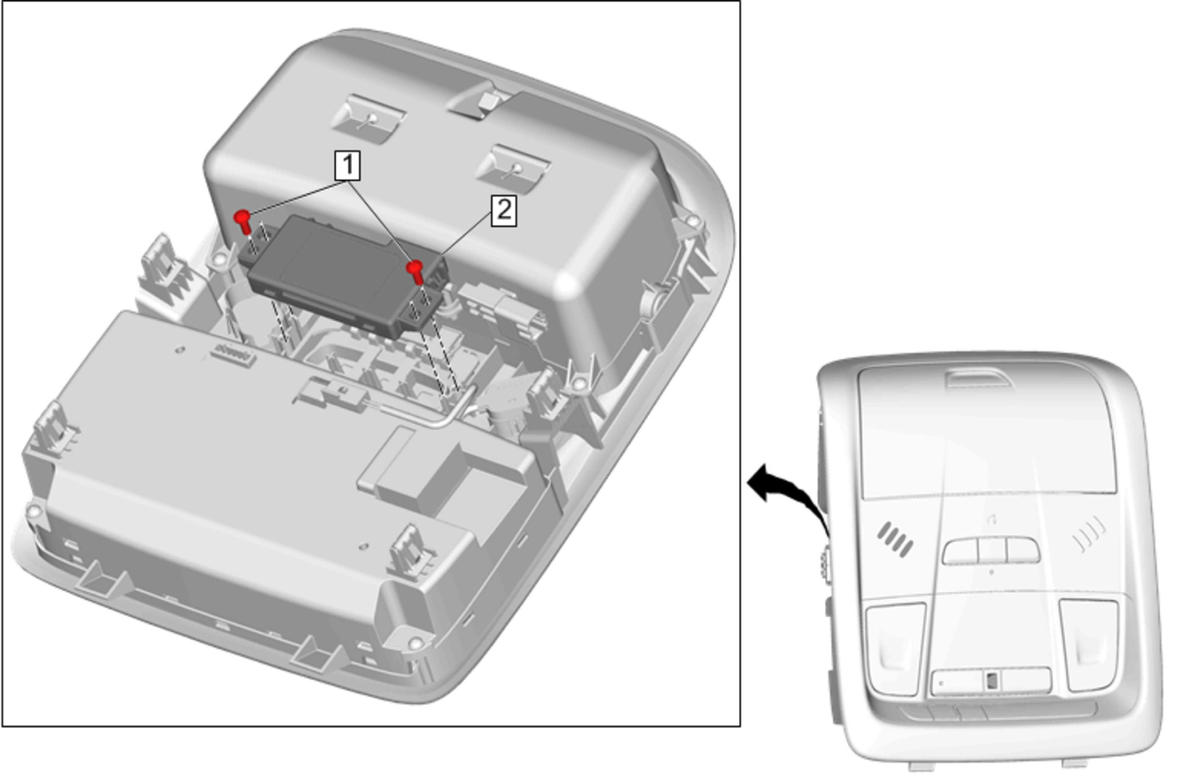

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure  Roof Console Replacement
1	Roof Console Bolt [2x] CAUTION: Fastener Caution Tighten  1.5 N.m (13 lb in)
2	Garage Door Opener Transmitter Procedure  Disconnect the electrical connector.
