Low Frequency Instrument Panel Antenna Replacement

Courtesy of GENERAL MOTORS COMPANY

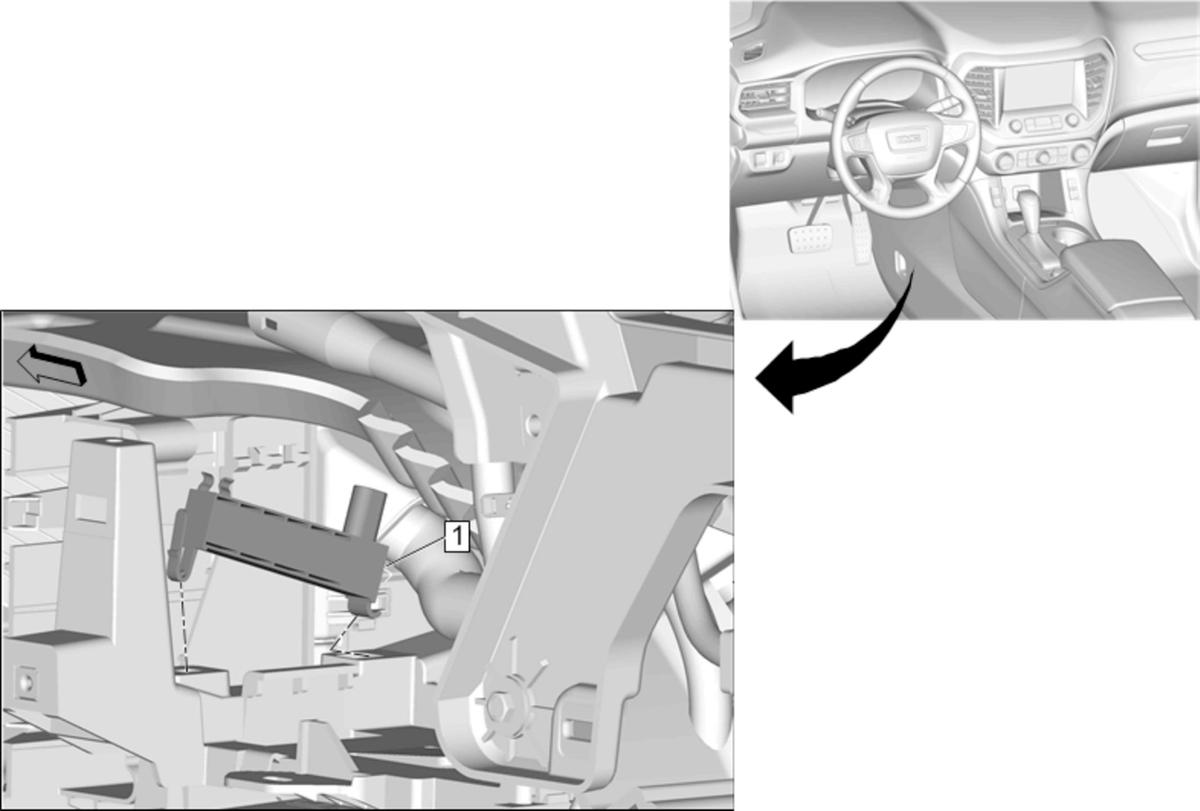

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure Front Floor Console Extension Panel Replacement - Left Side
1	Low Frequency Instrument Panel Antenna Procedure Disconnect the electrical connector. Release the retaining tab.

Callout

Component Name

Low Frequency Instrument Panel Antenna

Procedure
