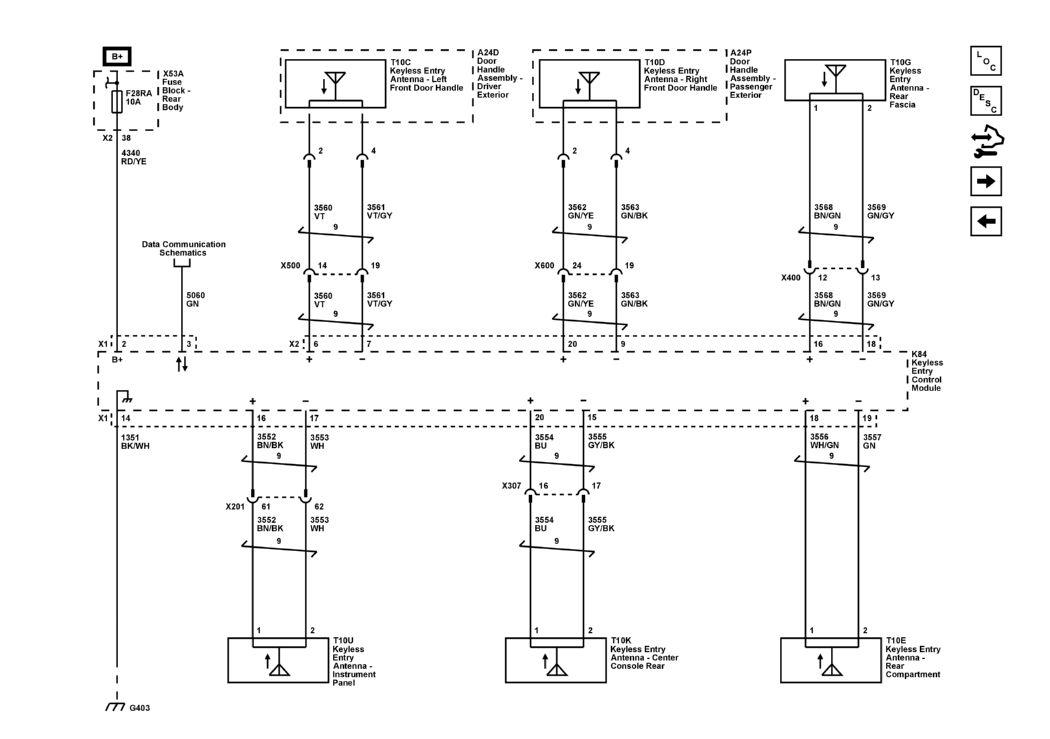

Keyless Entry - Passive and Keyless Start (GMC)
Keyless Entry - Passive and Keyless Start (GMC)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
