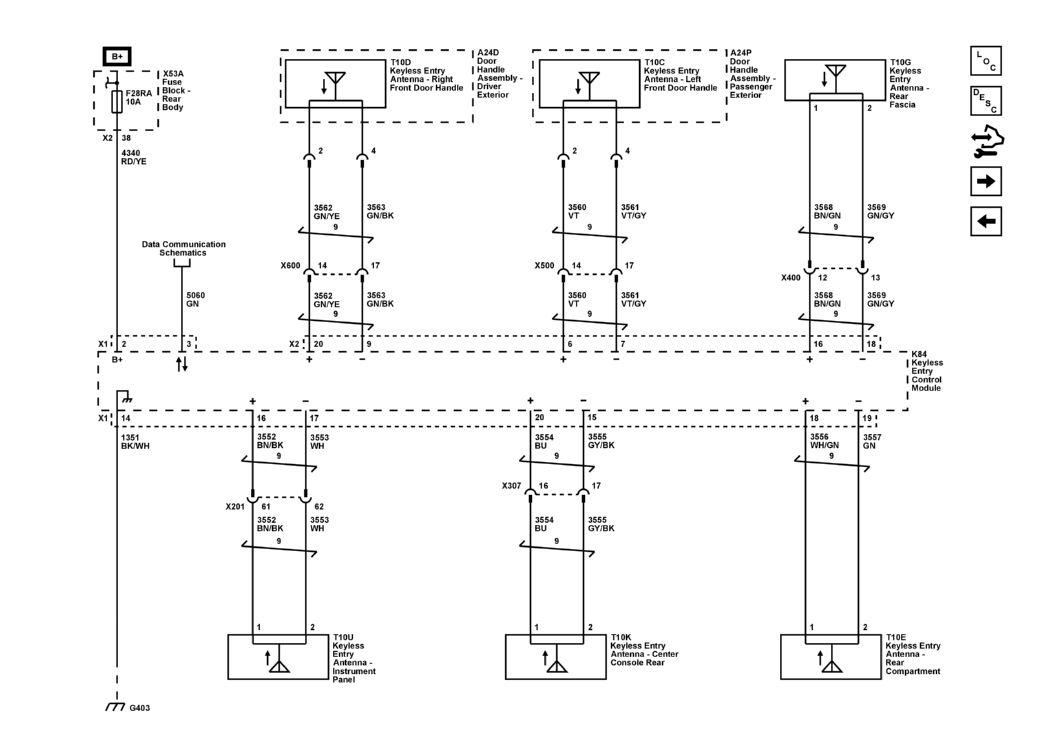

Keyless Entry - Passive and Keyless Start (Holden)
Keyless Entry - Passive and Keyless Start (Holden)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
