Front Seat Adjuster Memory Module Bracket Replacement

Courtesy of GENERAL MOTORS COMPANY

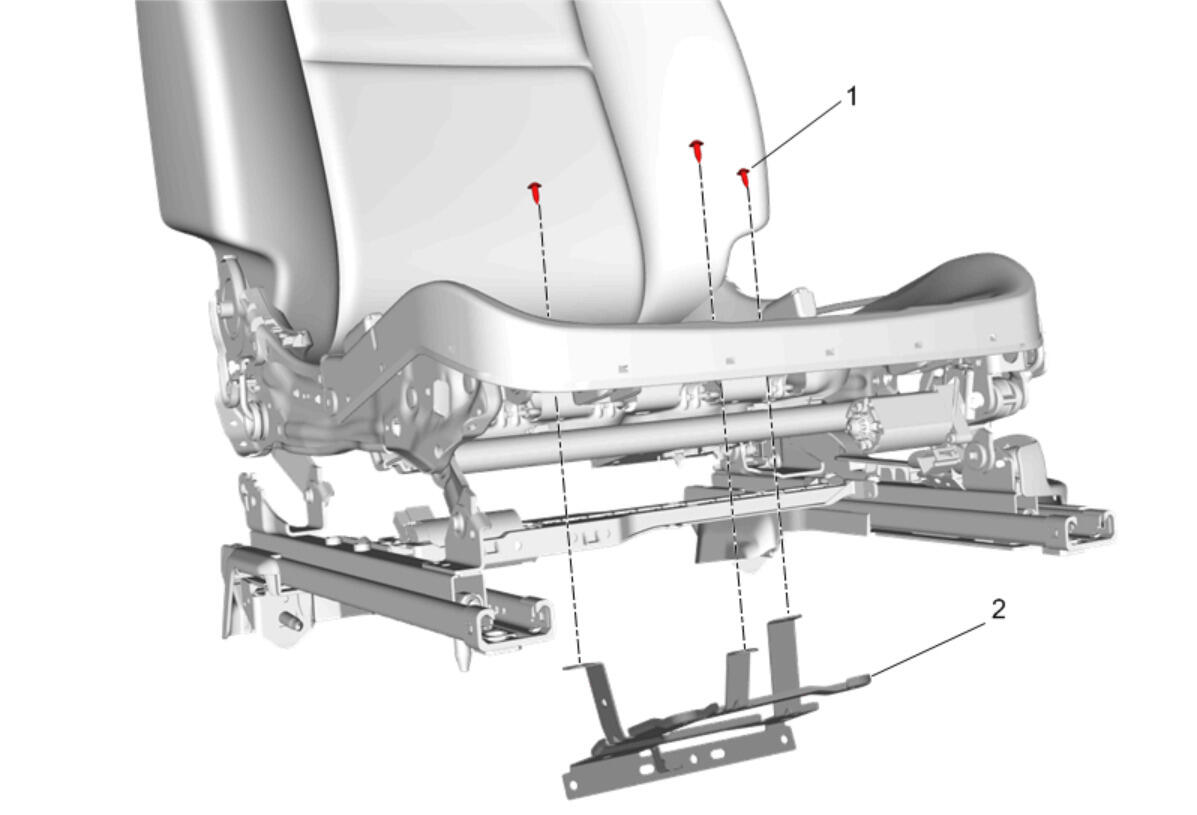

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure Reposition the front seat cover and pad as necessary. Front Seat Cushion Cover and Pad Replacement
1	Front Seat Adjuster Memory Module Bracket Fastener [3x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Front Seat Adjuster Memory Module Bracket Procedure Disconnect the electrical connectors. Transfer components as necessary.

Callout

Component Name

Preliminary Procedure
Reposition the front seat cover and pad as necessary. Front Seat Cushion Cover and Pad Replacement

Front Seat Adjuster Memory Module Bracket Fastener [3x]

CAUTION:

Tighten
2.5 N.m (22 lb in)

Front Seat Adjuster Memory Module Bracket

Procedure
