Installation Procedure

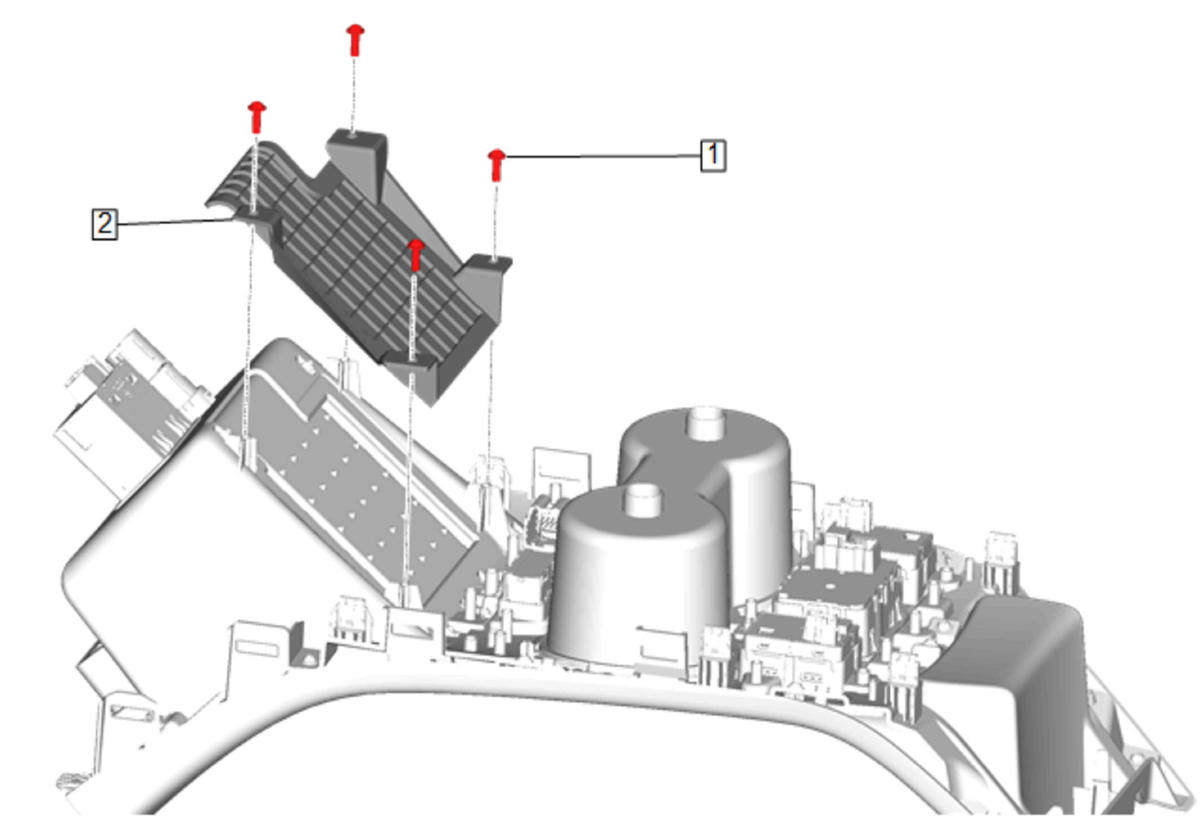

  1. Front Floor Console Front Cover (2) - Install
    GM5359633Courtesy of GENERAL MOTORS COMPANY
    2. CAUTION:

    Refer to Fastener Caution .

  2. Front Floor Console Bolt (1) - Install and tighten [4x] 1.5 N.m (13 lb in)
  3. Front Floor Console Trim Plate (1) - Install - Front Floor Console Trim Plate Replacement
    GM5354386Courtesy of GENERAL MOTORS COMPANY
  4. Front Floor Console Extension Panel - Right Side (3) - Install - Front Floor Console Extension Panel Replacement - Right Side
    GM5346450Courtesy of GENERAL MOTORS COMPANY
  5. Front Floor Console Extension Panel - Left Side (2) - Install - Front Floor Console Extension Panel Replacement - Left Side
    GM5344324Courtesy of GENERAL MOTORS COMPANY

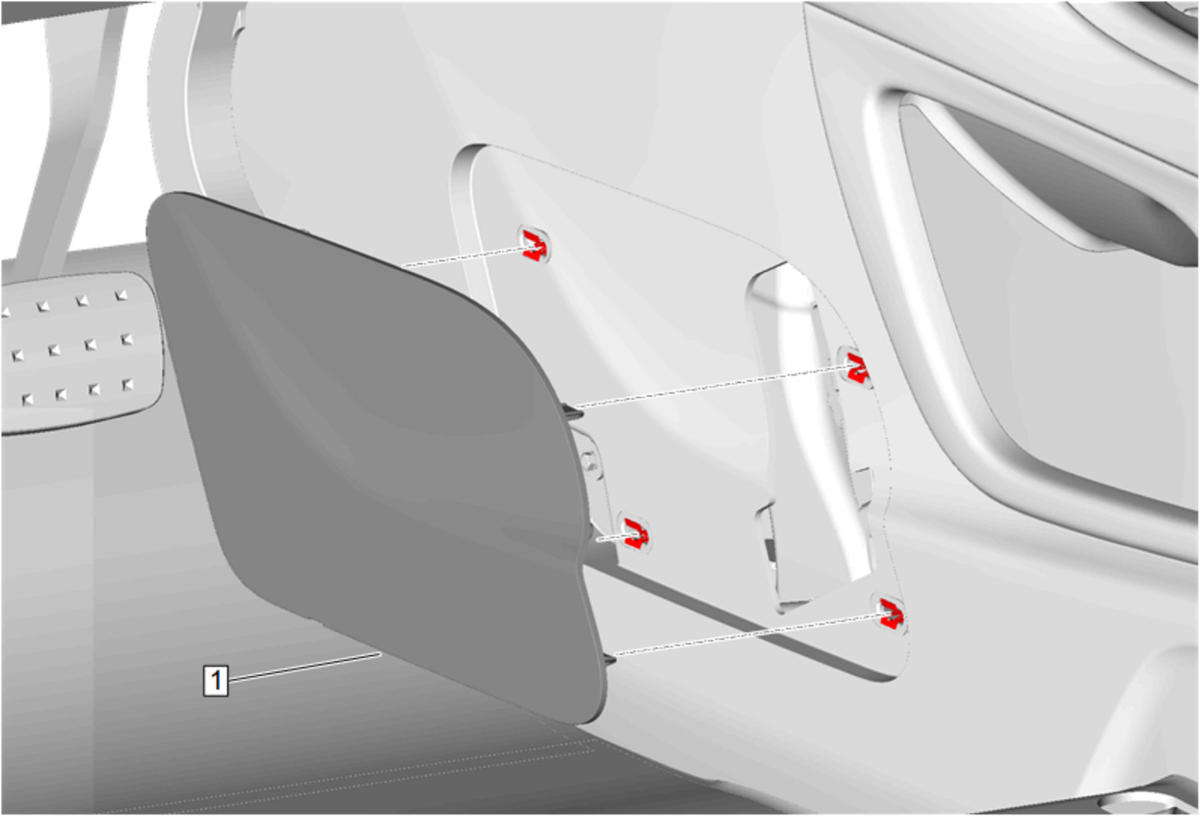

  6. Front Floor Console Side Trim Panel (1) - Install - Front Floor Console Side Trim Panel Replacement
    GM5344321Courtesy of GENERAL MOTORS COMPANY
