Installation Procedure

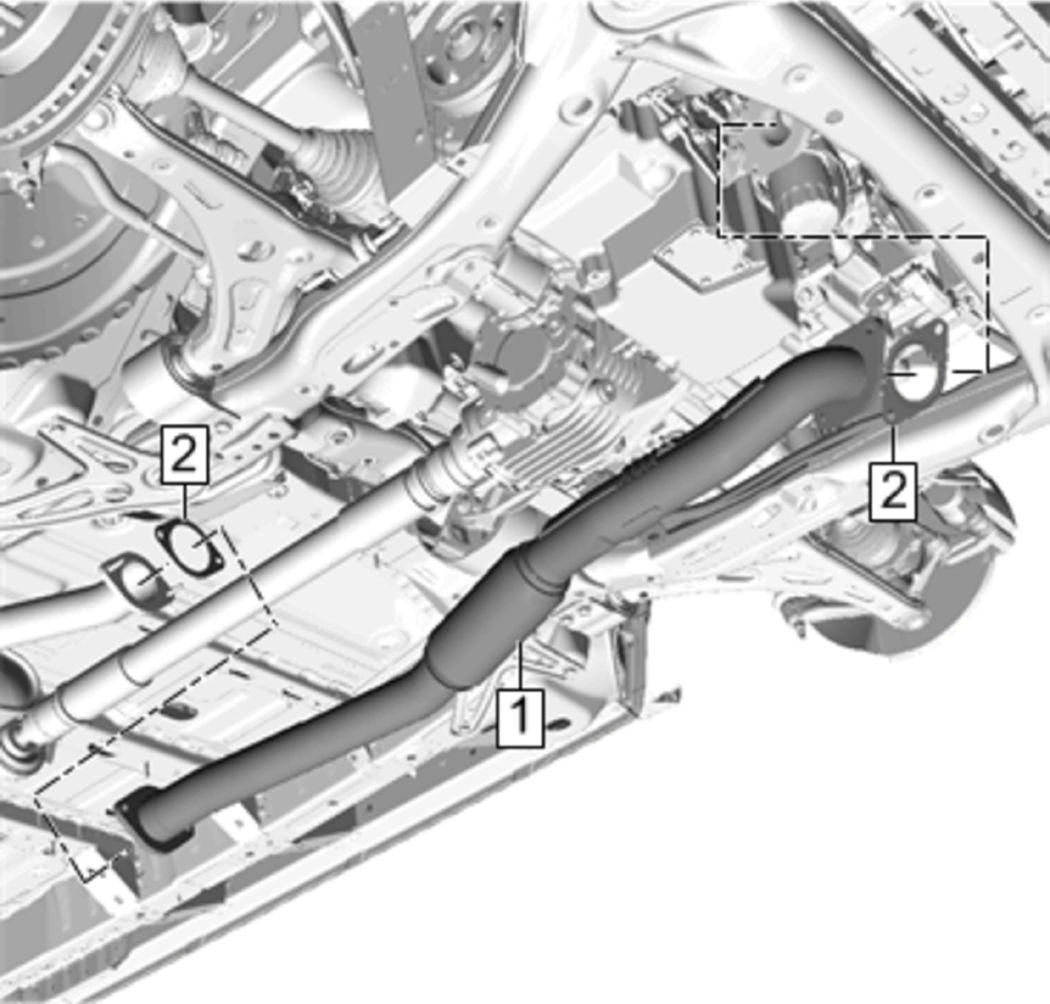

  1. Exhaust Gasket (2) - Install NEW [2x]
    GM4360853Courtesy of GENERAL MOTORS COMPANY
  2. Exhaust Front Pipe (1) - Install
  3. Exhaust Front Pipe Nut (1) - Install and tighten [2x] 22 N.m (16 lb ft)
    GM4360806Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

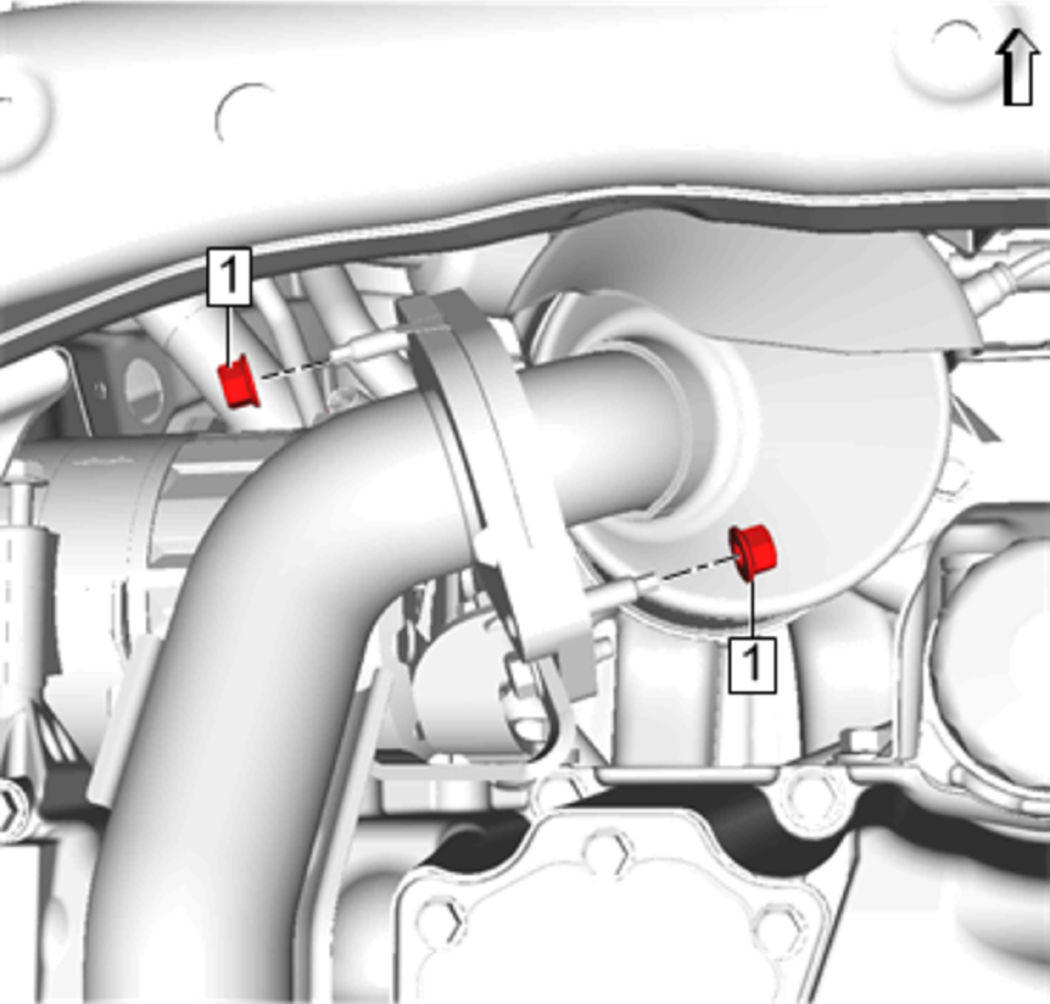

  4. Catalytic Converter Nut (1) - Install and tighten [2x] 22 N.m (16 lb ft)
    GM4360814Courtesy of GENERAL MOTORS COMPANY

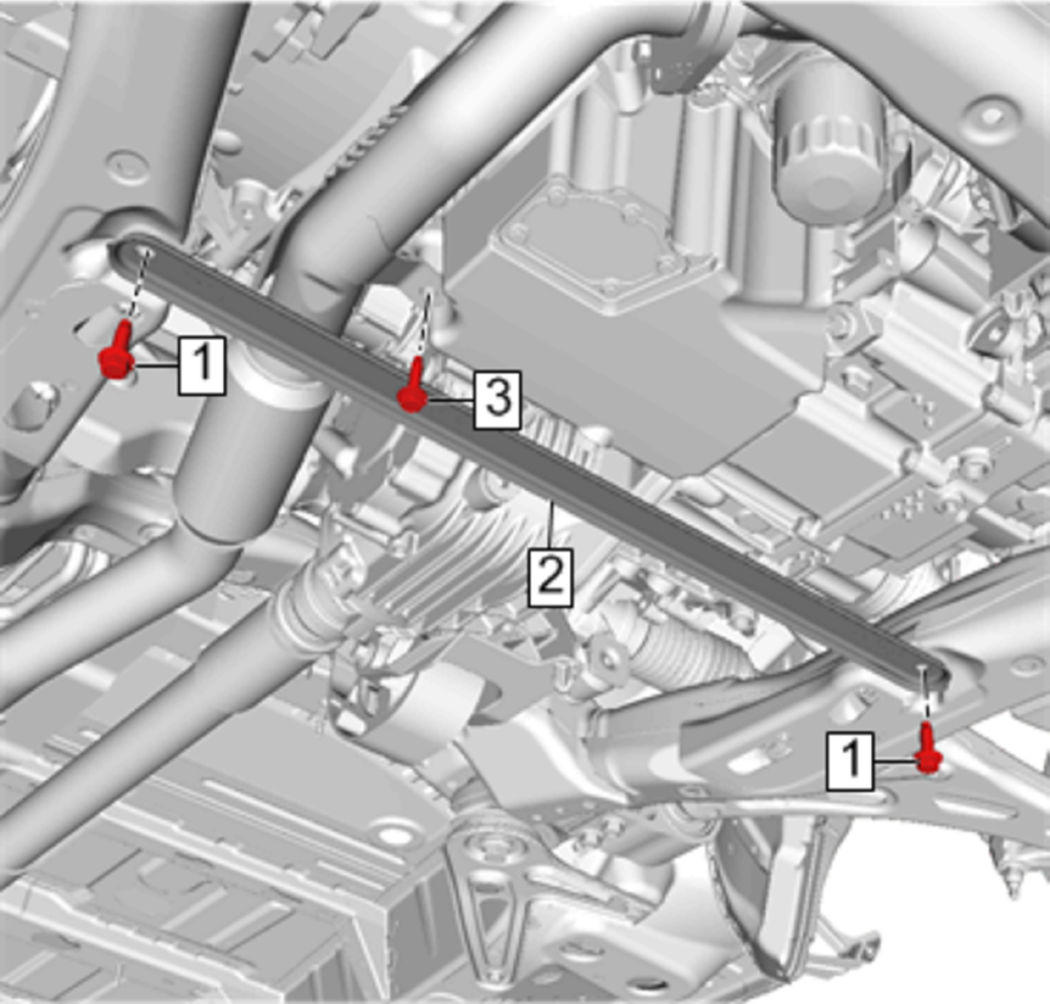

  5. Front Cradle Brace (2) - Install - Front Cradle Brace Replacement
    GM4360755Courtesy of GENERAL MOTORS COMPANY
  6. Start the engine and check for exhaust leaks.
