Windshield Washer Solvent Container Level Sensor Replacement

WARNING: This page is about a different car, the 2020 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

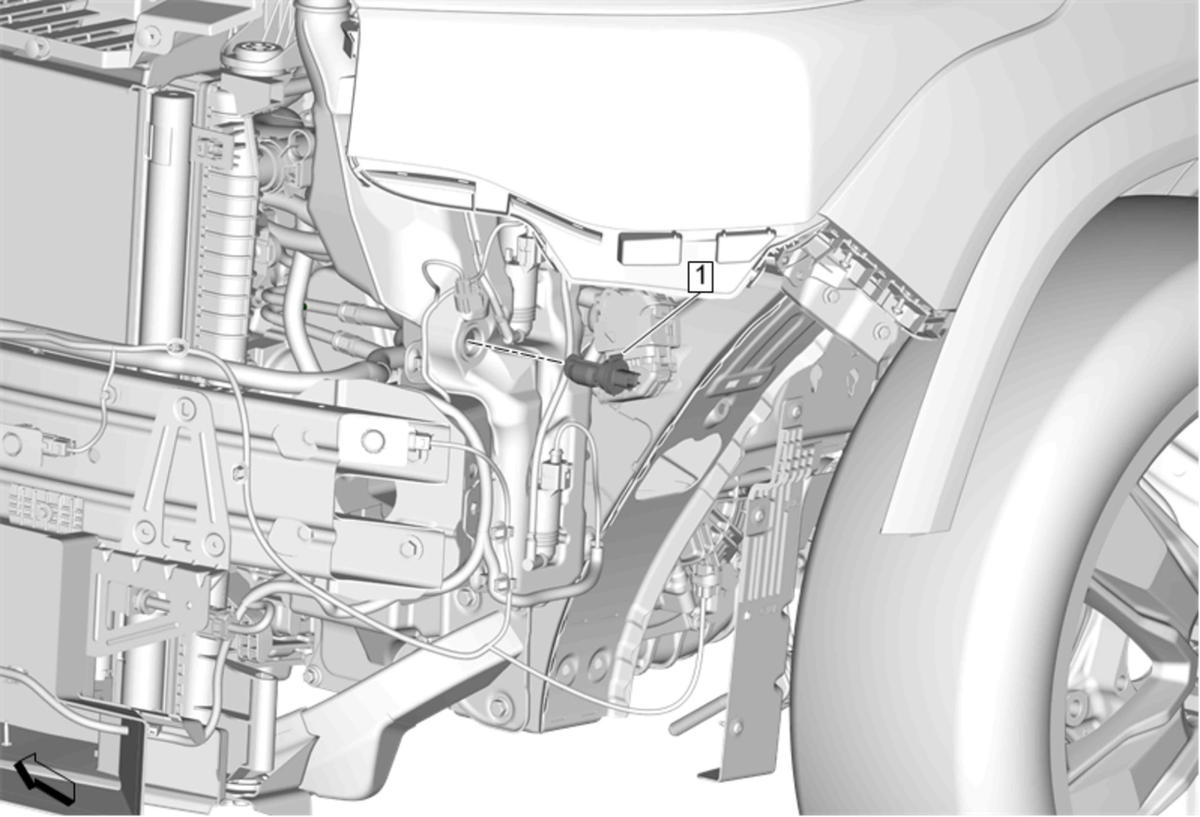

Callout	Component Name
Preliminary Procedures Front Bumper Fascia Removal and Installation Place a clean suitable drain pan under the windshield washer solvent container to recover the windshield washer solvent that may spill out during remoaval.
1	Windshield Washer Solvent Container Level Sensor Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedures

Front Bumper Fascia Removal and Installation
Place a clean suitable drain pan under the windshield washer solvent container to recover the windshield washer solvent that may spill out during remoaval.

Windshield Washer Solvent Container Level Sensor
Disconnect the electrical connector.
