Installation Procedure

WARNING: This page is about a different car, the 2020 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

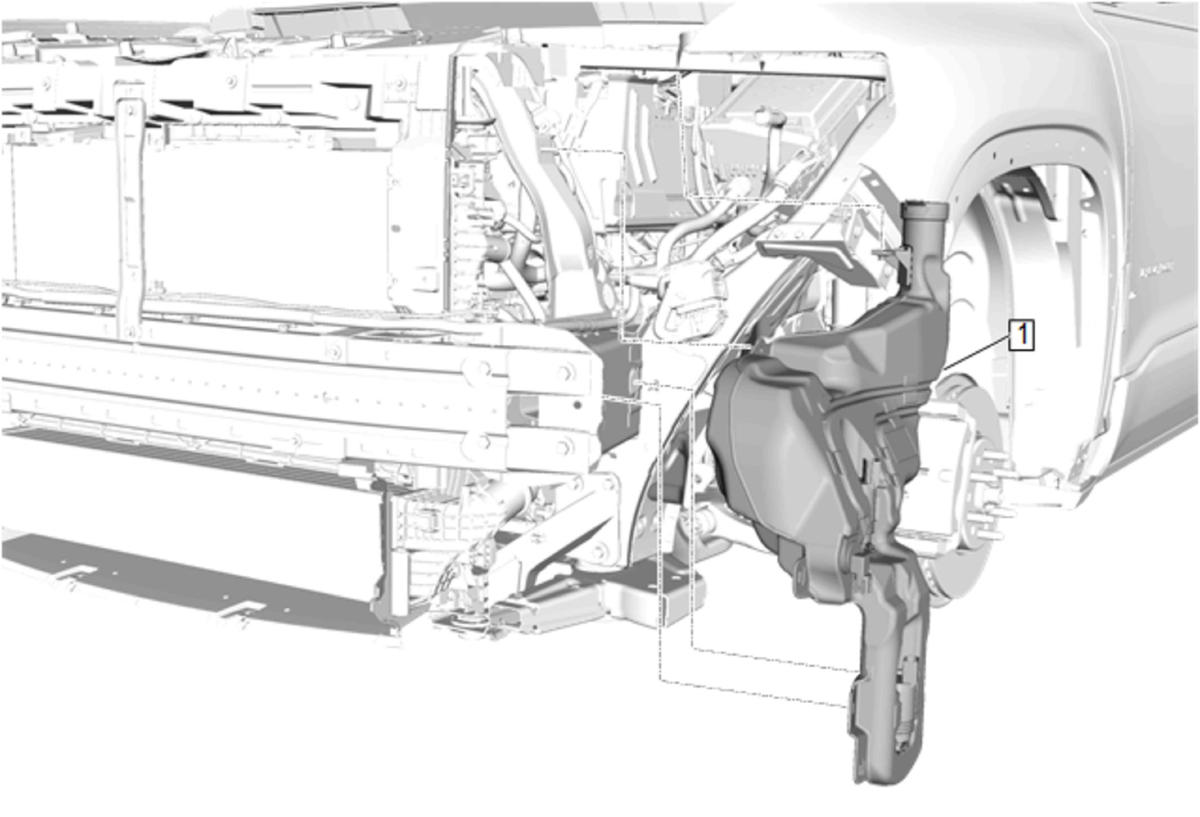

  1. GM5355189Courtesy of GENERAL MOTORS COMPANY

    Windshield Washer Solvent Container (1) - Install

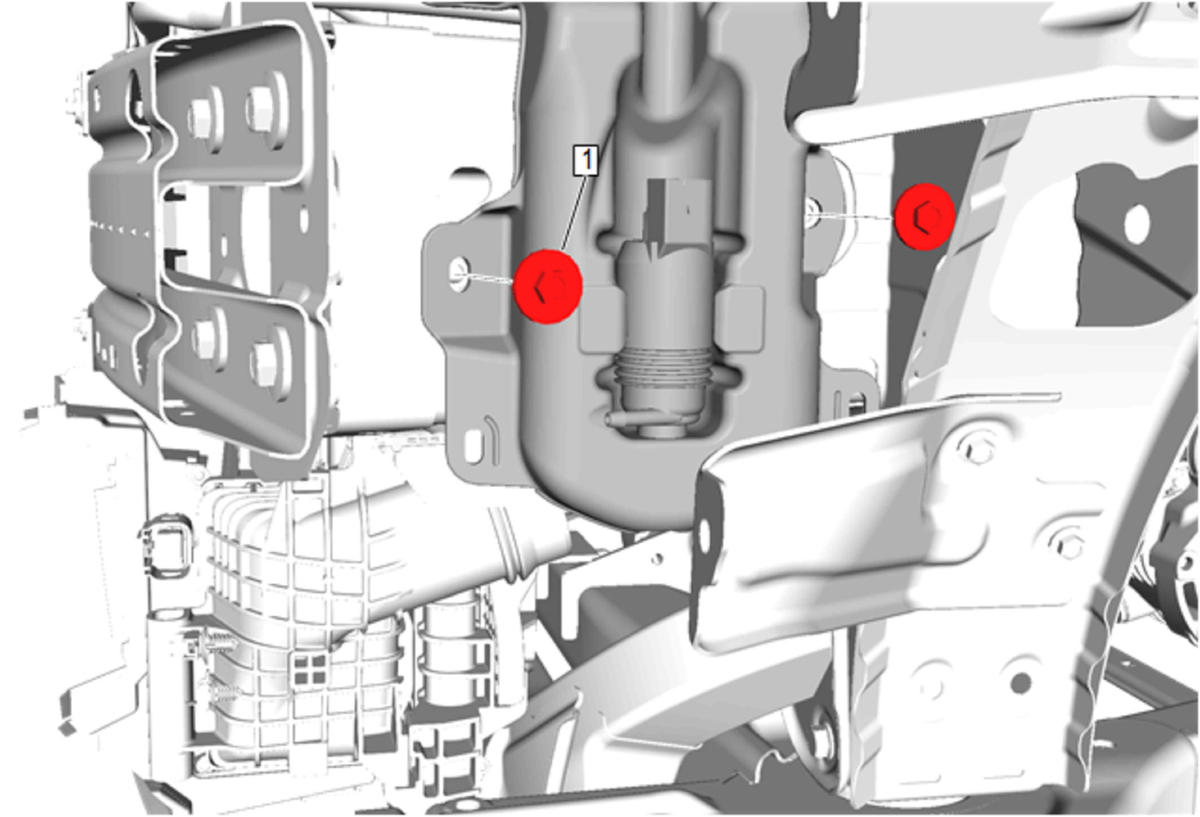

  2. GM5355185Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Windshield Washer Solvent Container Bolt (1) - Install and tighten [2x] 9 N.m (80 lb in)

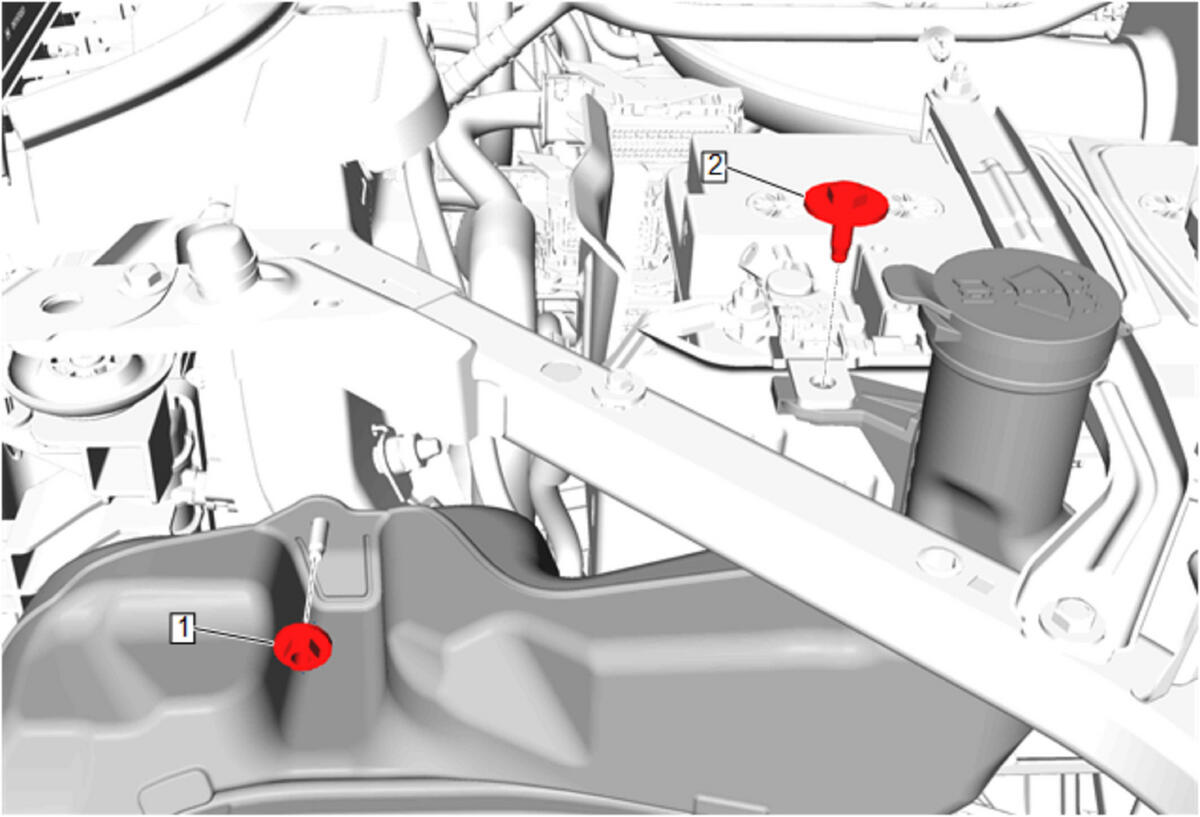

  3. GM5337364Courtesy of GENERAL MOTORS COMPANY

    Windshield Washer Solvent Container Bolt (2) - Install and tighten 9 N.m (80 lb in)

  4. Windshield Washer Solvent Container Nut (1) - Install and tighten 9 N.m (80 lb in)

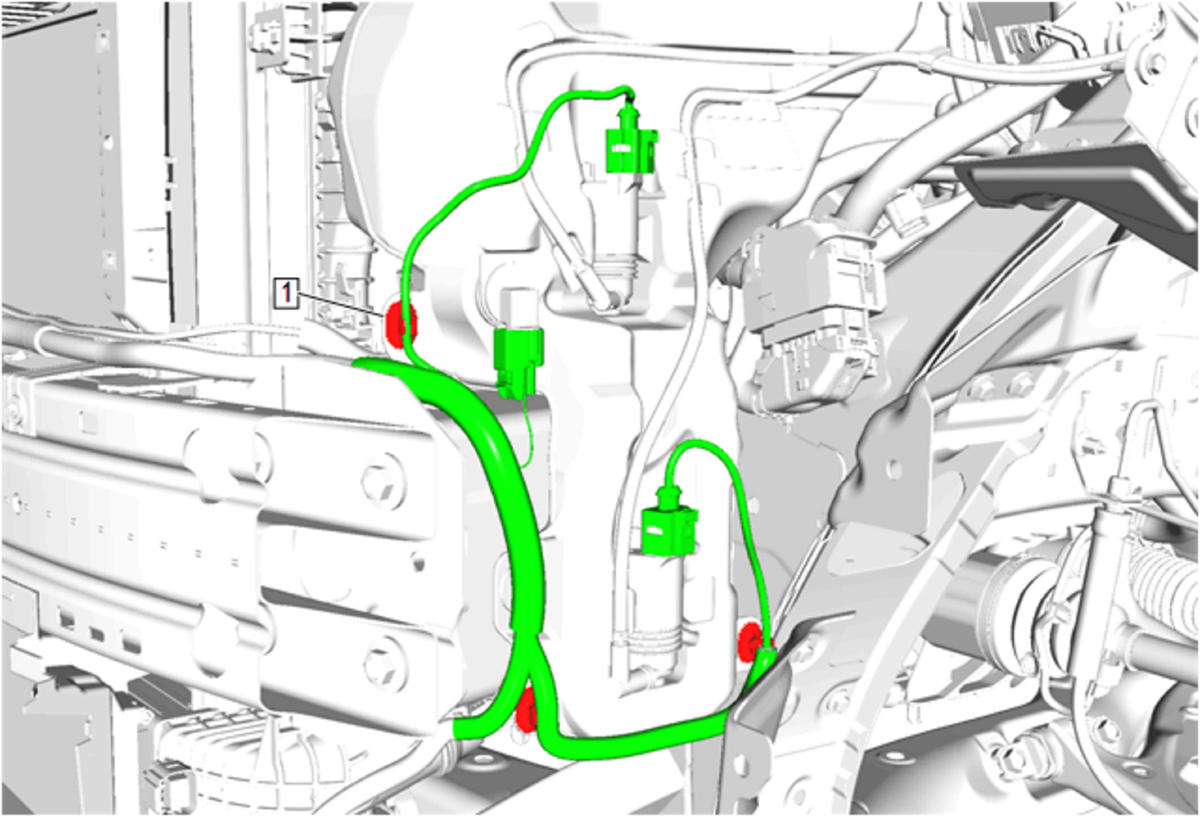

  5. GM5355179Courtesy of GENERAL MOTORS COMPANY

    Position the wiring harness.

  6. Wiring Harness Retainer (1) - Install [3x]
  7. Connect the electrical connectors.

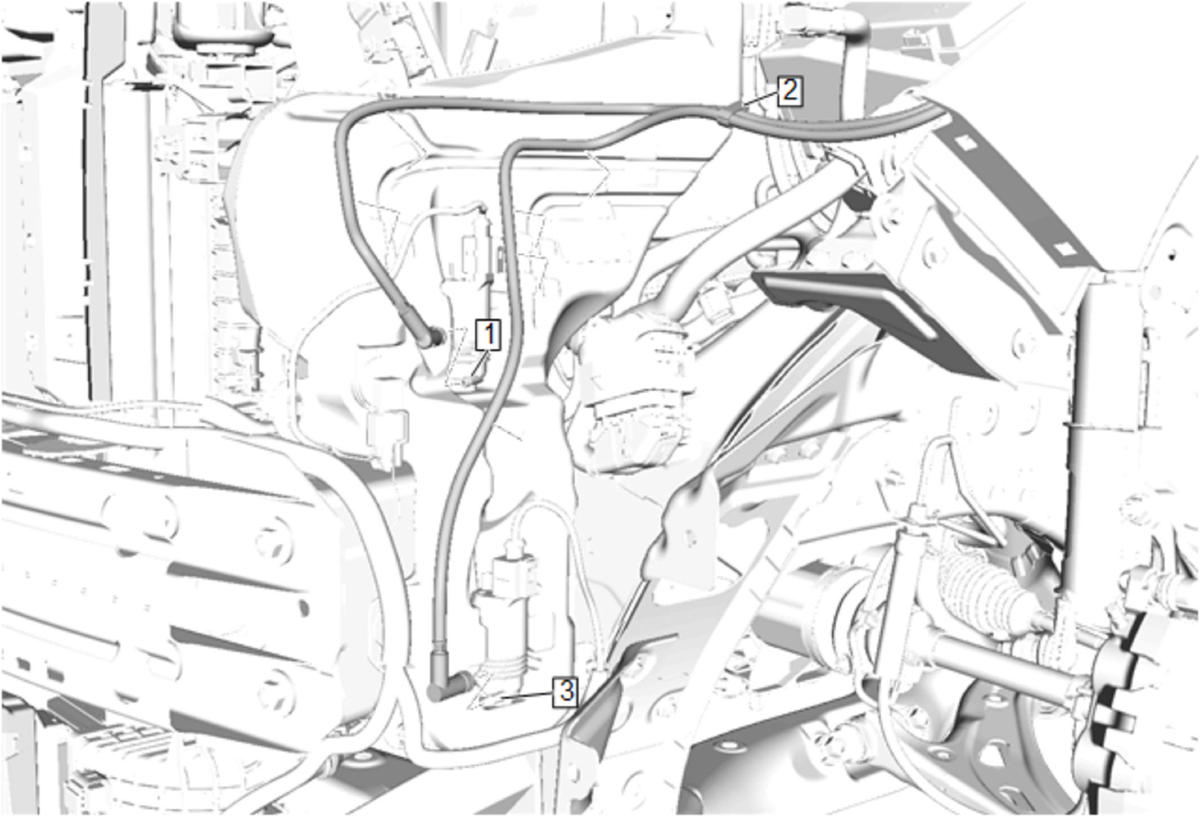

  8. GM5342450Courtesy of GENERAL MOTORS COMPANY

    Rear Window Washer Pump Hose (2) @Windshield Washer Solvent Container - Install - Rear Window Washer Pump Hose Replacement

  9. Fill the windshield washer solvent container with windshield washer solvent and inspect for leaks.
  10. Install the left side headlamp. FRONT HEADLAMP REPLACEMENT - LEFT SIDE (GMC)
