Front View Driver Information Camera Replacement
WARNING: This page is about a different car, the 2020 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

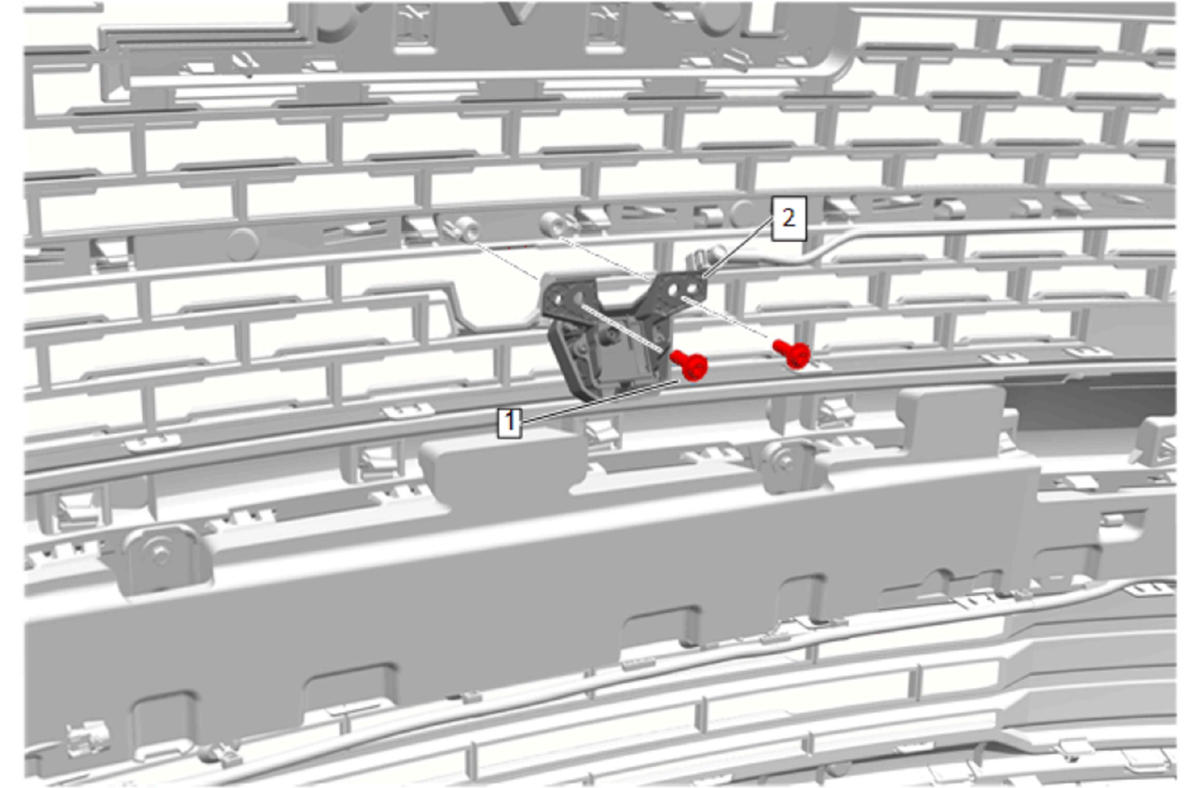

| Callout | Component Name |
| Preliminary Procedure FRONT BUMPER FASCIA REMOVAL AND INSTALLATION |
|
| 1 | Front View Camera Bracket Bolt [2x]
CAUTION:
Fastener Caution Tighten 4.7 N.m (42 lb in) |
| 2 LO |
Front View Driver Information Camera Procedure 1. Disconnect the electrical connector 2. Perform the necessary programming and setup procedure:Video Processing Control Module Calibration |
