Windshield Wiper Motor Replacement
WARNING: This page is about a different car, the 2019 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

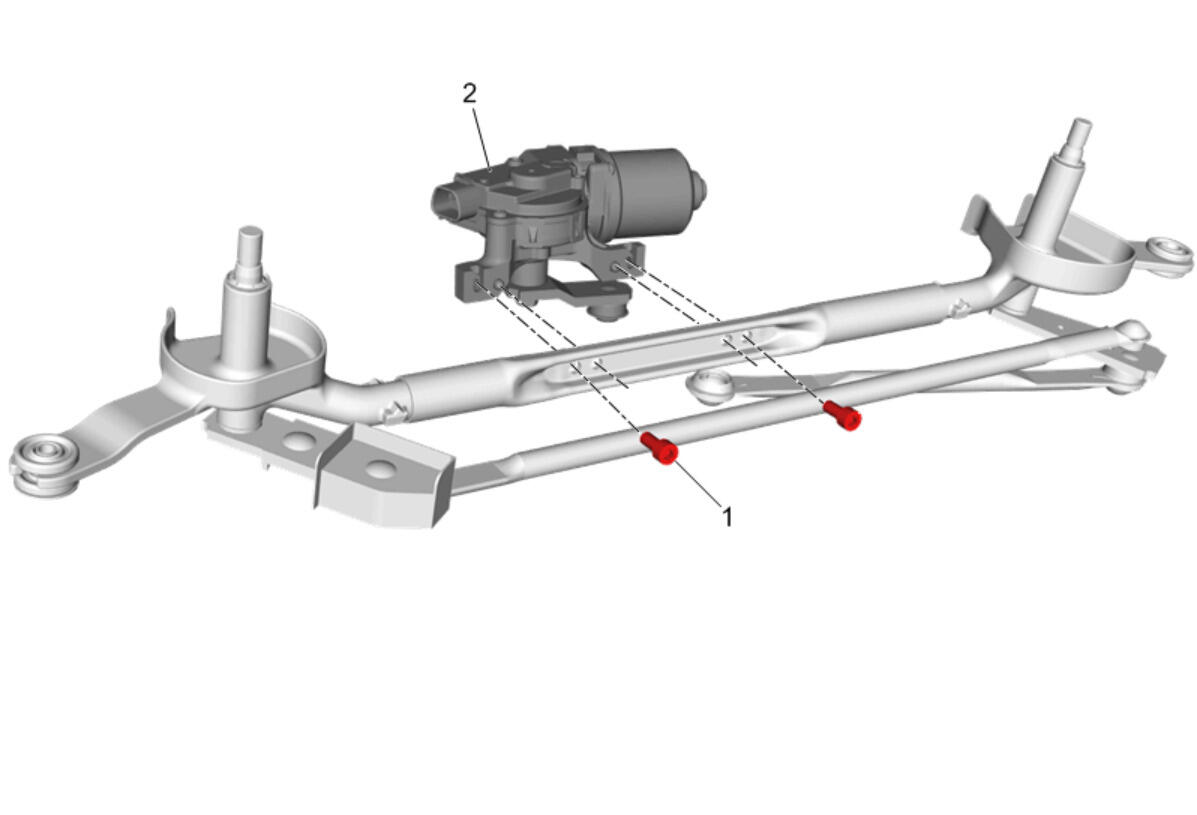

| Callout |
Component Name |
Preliminary Procedure
Windshield Wiper Transmission Replacement |
| 1 |
Windshield Wiper Motor Bolt [2x]
Tighten
7.5 N.m (66 lb in) |
| 2 |
Windshield Wiper Motor Procedure
- Using the J 39232
separator remove the windshield wiper motor crank arm from the transmission link.
- Remove the windshield wiper motor from the windshield wiper transmission.
- Position the new windshield wiper motor to the windshield wiper transmission.
- Align the transmission links to the windshield wiper motor crank arm.
- Using the J 39529
installer secure the windshield wiper motor crank arm ball to the transmission link ball socket.
Special Tools
- J 39232
Wiper Linkage Separator
- J 39529
Wiper Linkage Installer
Equivalent regional tools:Special Tools |
