Installation Procedure

WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

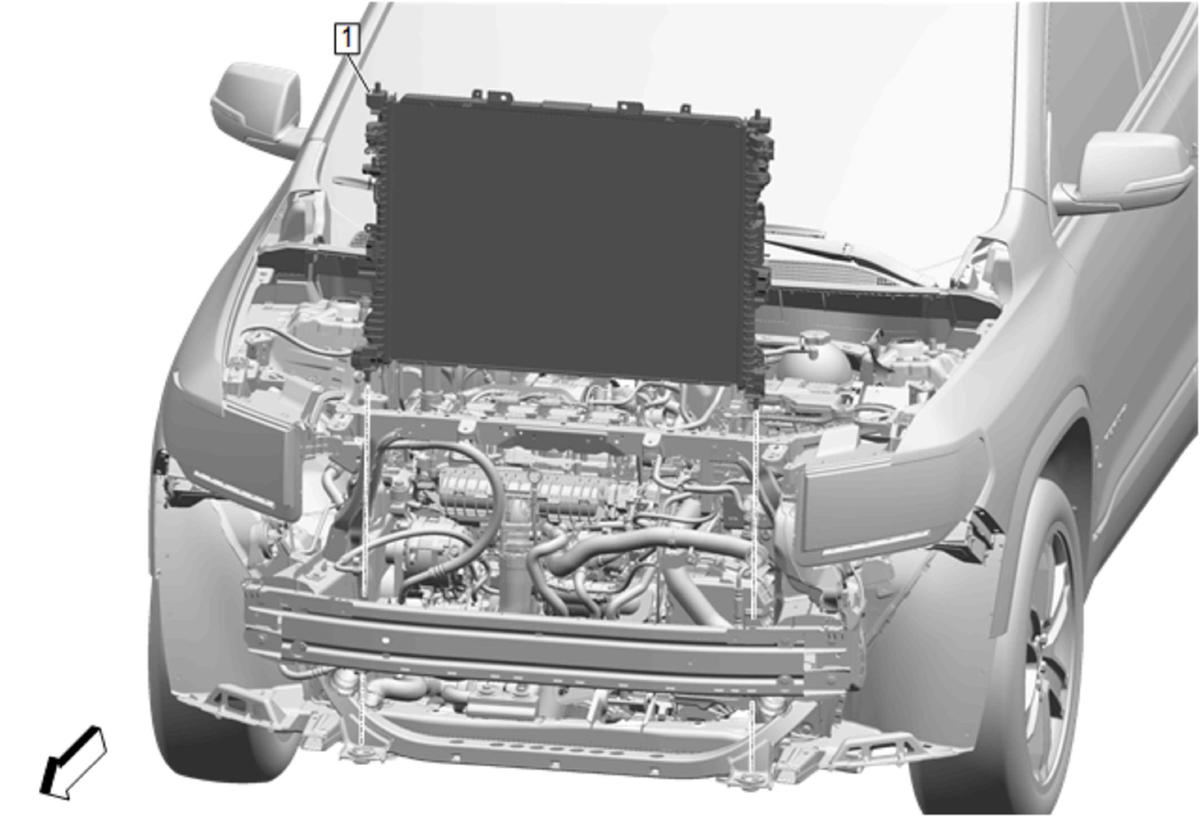

Install the engine cooler fan and radiator as an assembly (1).
Radiator Upper Bracket - Right Side - Install - Radiator Upper Bracket Replacement - Right Side (LSY)
Radiator Upper Bracket - Left Side - Install - Radiator Upper Bracket Replacement - Left Side (LSY)
Courtesy of GENERAL MOTORS COMPANY

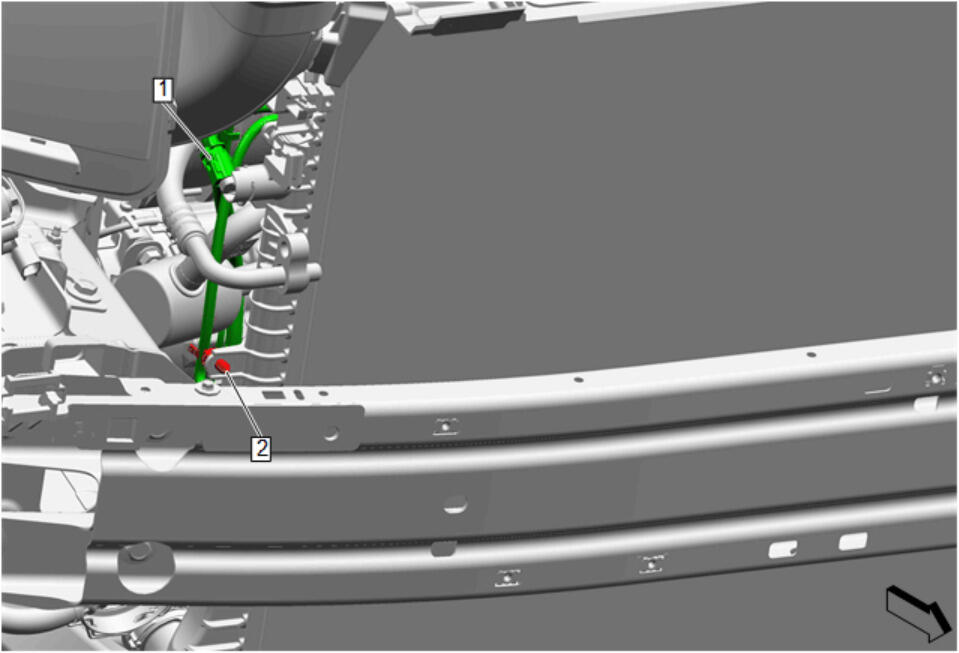

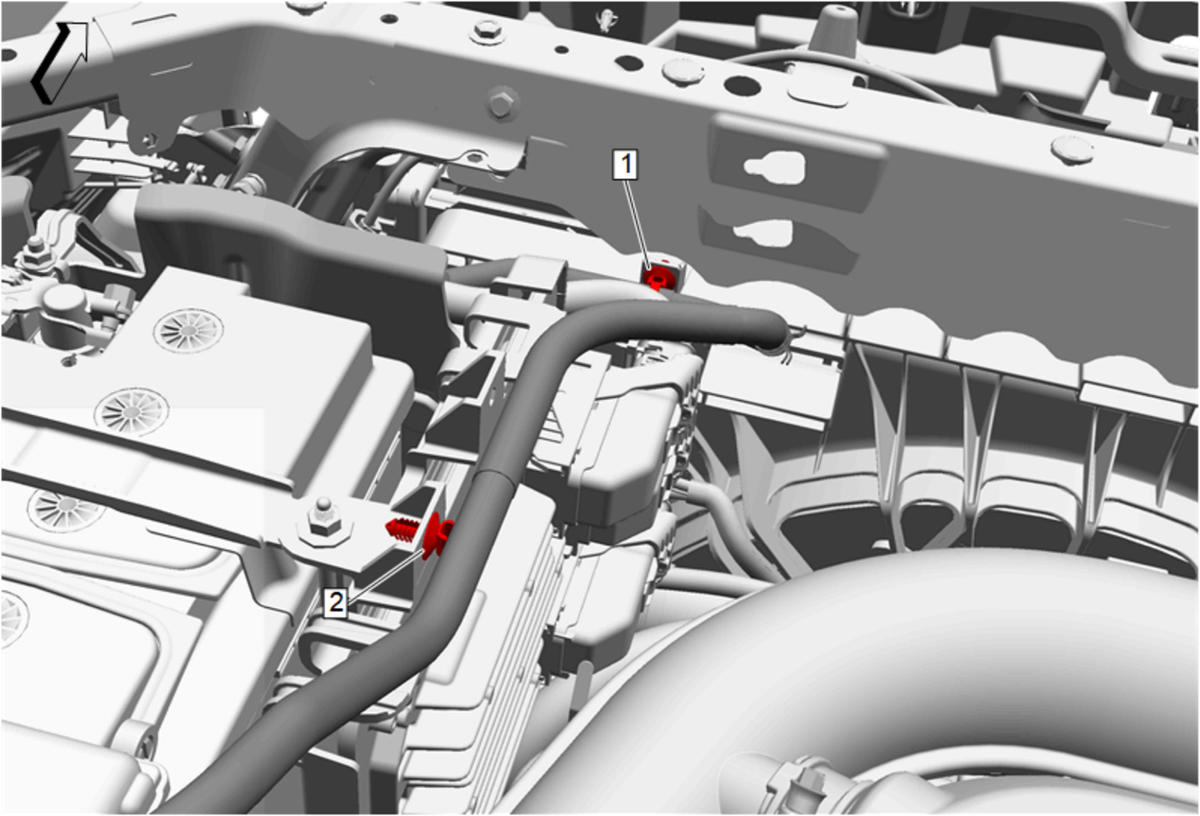

Engine Wiring Harness Retainer (2) @Radiator - Install

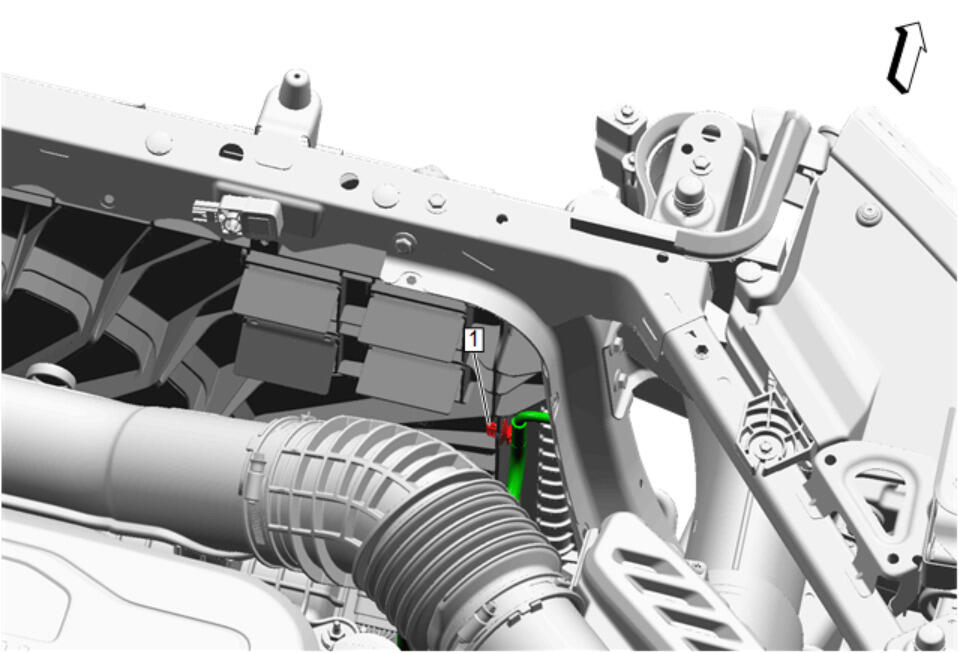

Electrical Connector (1) @Engine Coolant Temperature Sensor - Connect
Air Conditioning Condenser - Install - Air Conditioning Condenser Replacement (With V08) , or Air Conditioning Condenser Replacement (without V08)
Courtesy of GENERAL MOTORS COMPANY

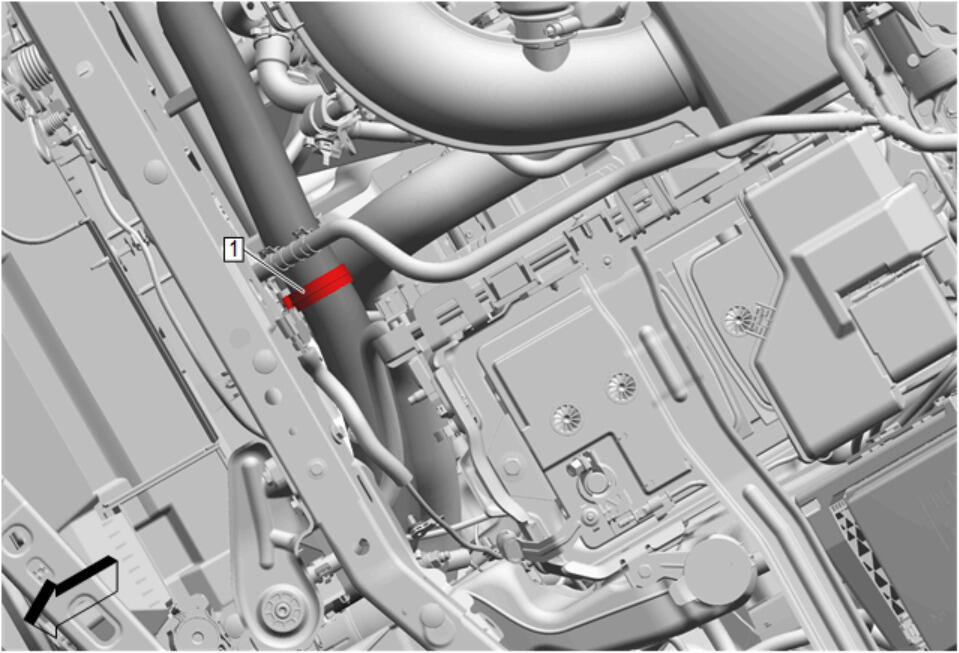

Engine Wiring Harness Retainer (1) @Engine Cooler Fan - Install
Courtesy of GENERAL MOTORS COMPANY

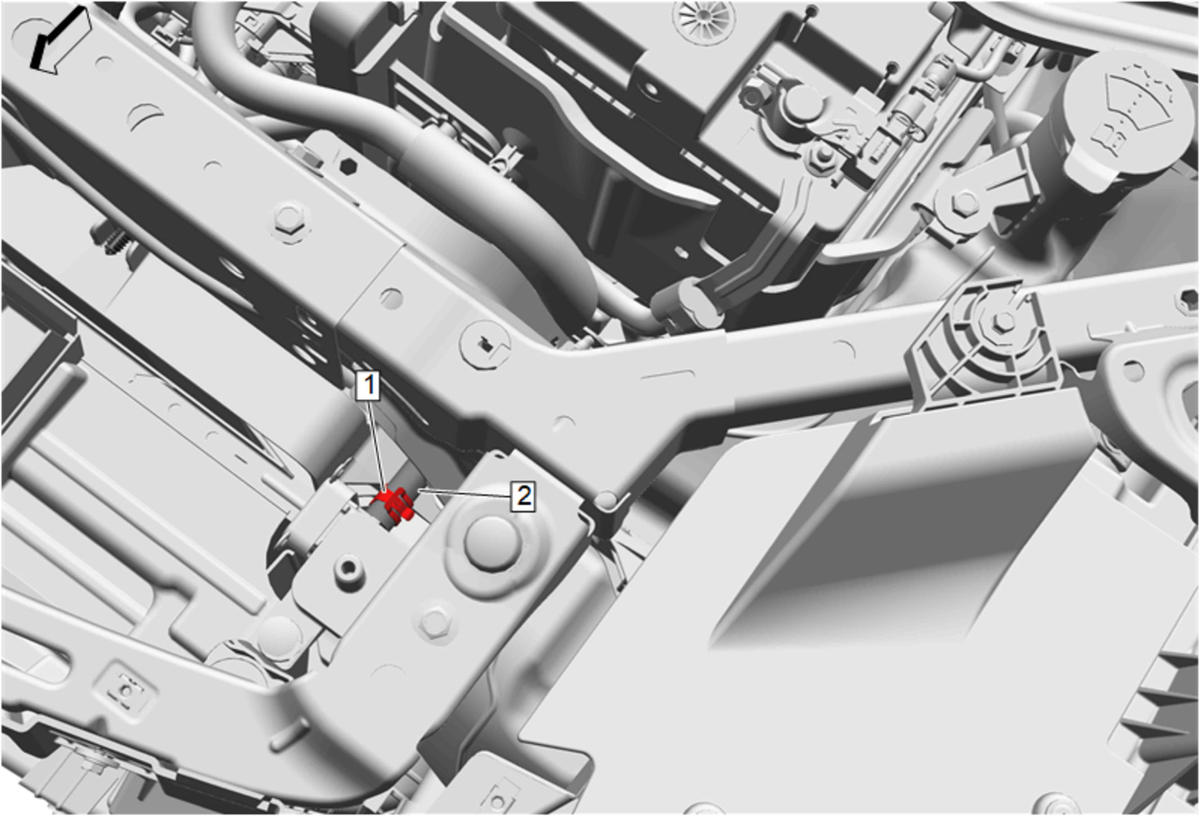

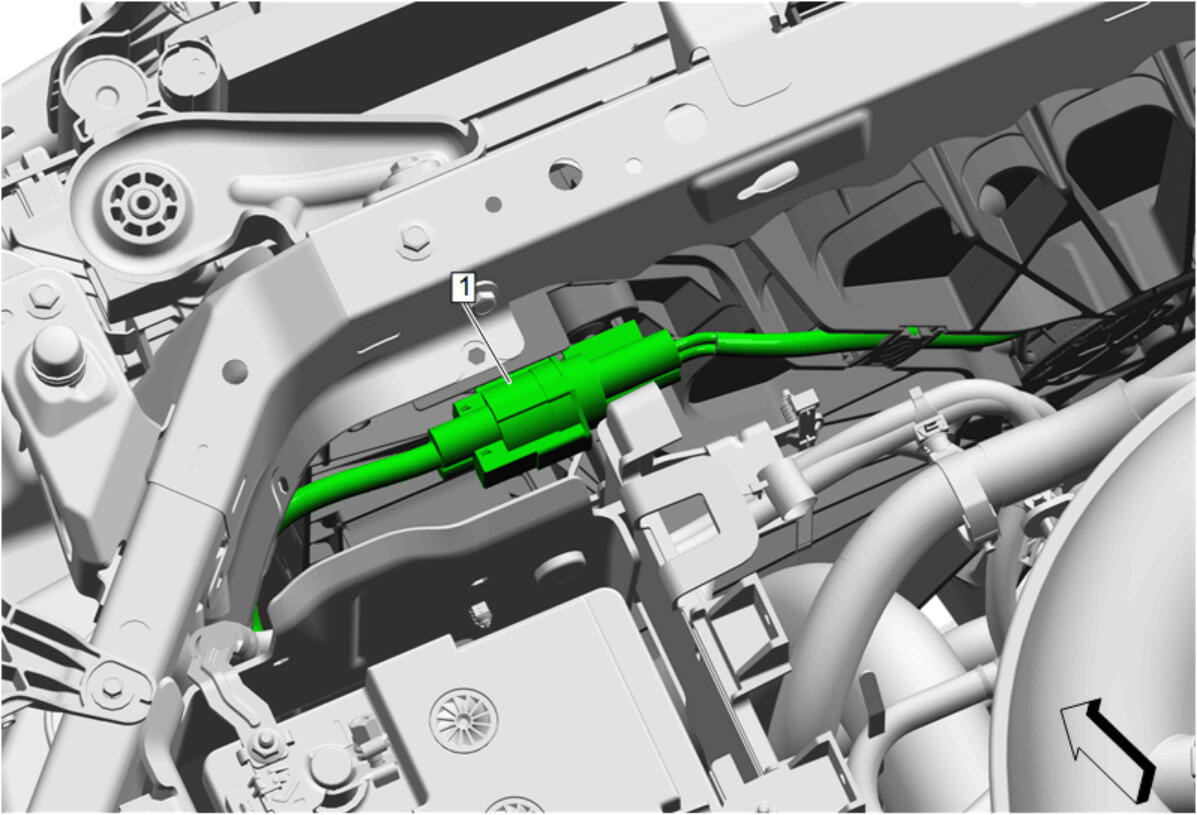

Electrical Connector (1) @Engine Cooler Fan - Connect
Courtesy of GENERAL MOTORS COMPANY

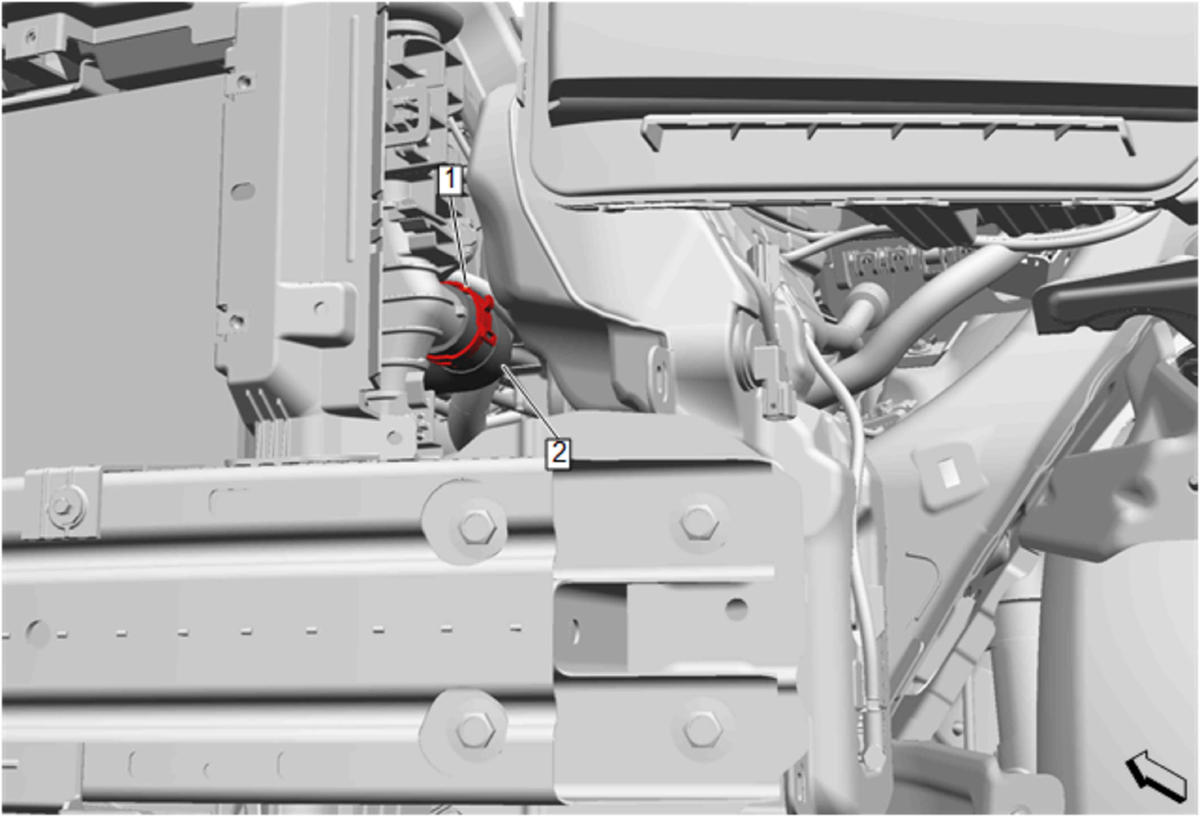

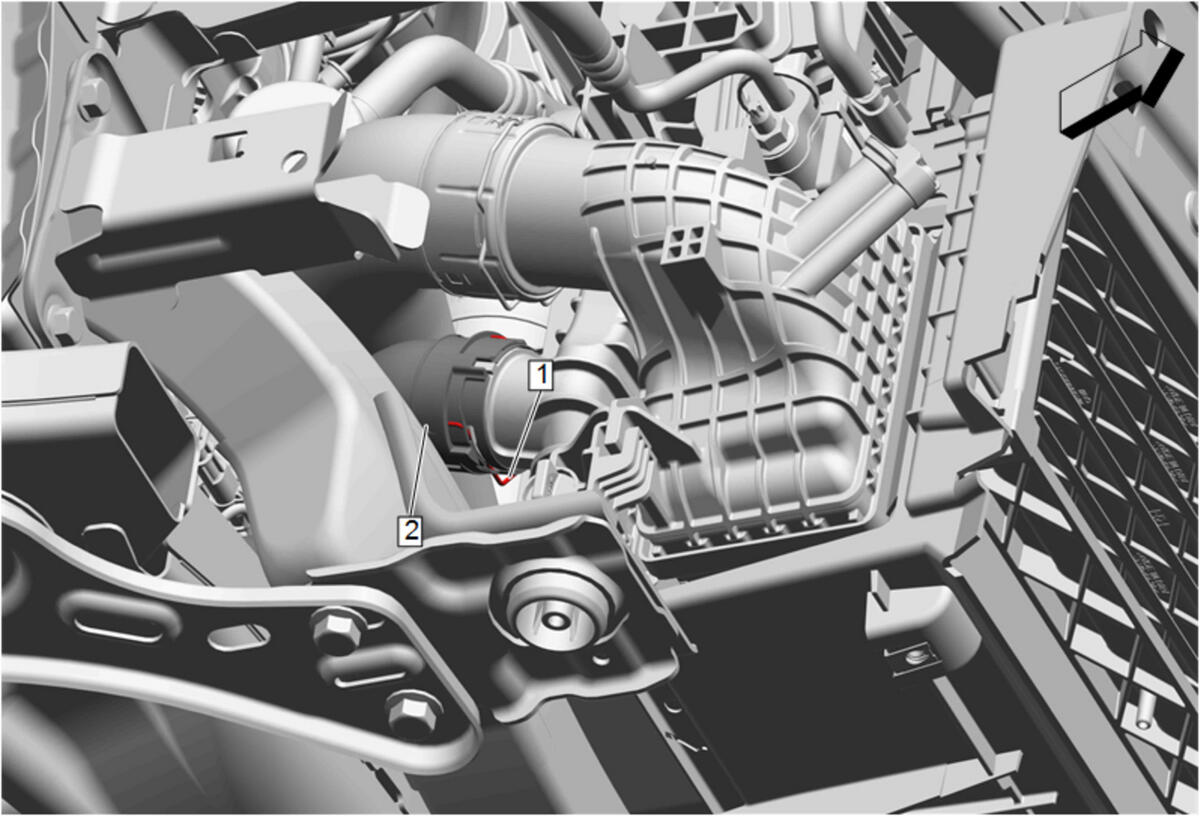

Radiator Surge Tank Inlet Hose (2) @Radiator - Install - Radiator Surge Tank Inlet Hose Replacement (LSY)
Courtesy of GENERAL MOTORS COMPANY

Radiator Surge Tank Inlet Hose Clip (1) @Engine Cooler Fan - Install
Courtesy of GENERAL MOTORS COMPANY

Radiator Inlet Hose (2) @Radiator - Install - Radiator Inlet Hose Replacement (LSY)
Courtesy of GENERAL MOTORS COMPANY

Radiator Inlet Hose Clip (1) @Engine Cooler Fan - Install - Radiator Inlet Hose Replacement (LSY)
Courtesy of GENERAL MOTORS COMPANY

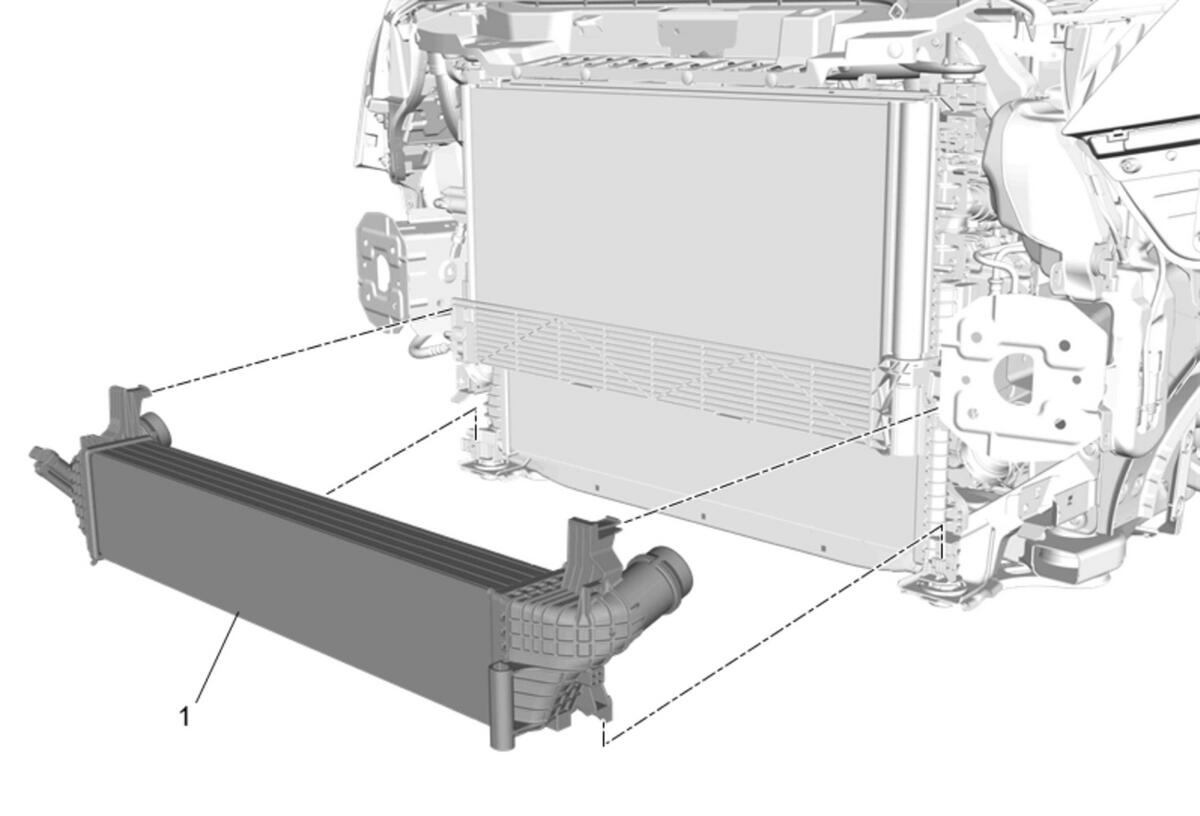

Charge Air Cooler (1) - Install - Charge Air Cooler Replacement
Courtesy of GENERAL MOTORS COMPANY

Radiator Outlet Hose (2) @Radiator - Install - Radiator Outlet Hose Replacement (LSY)

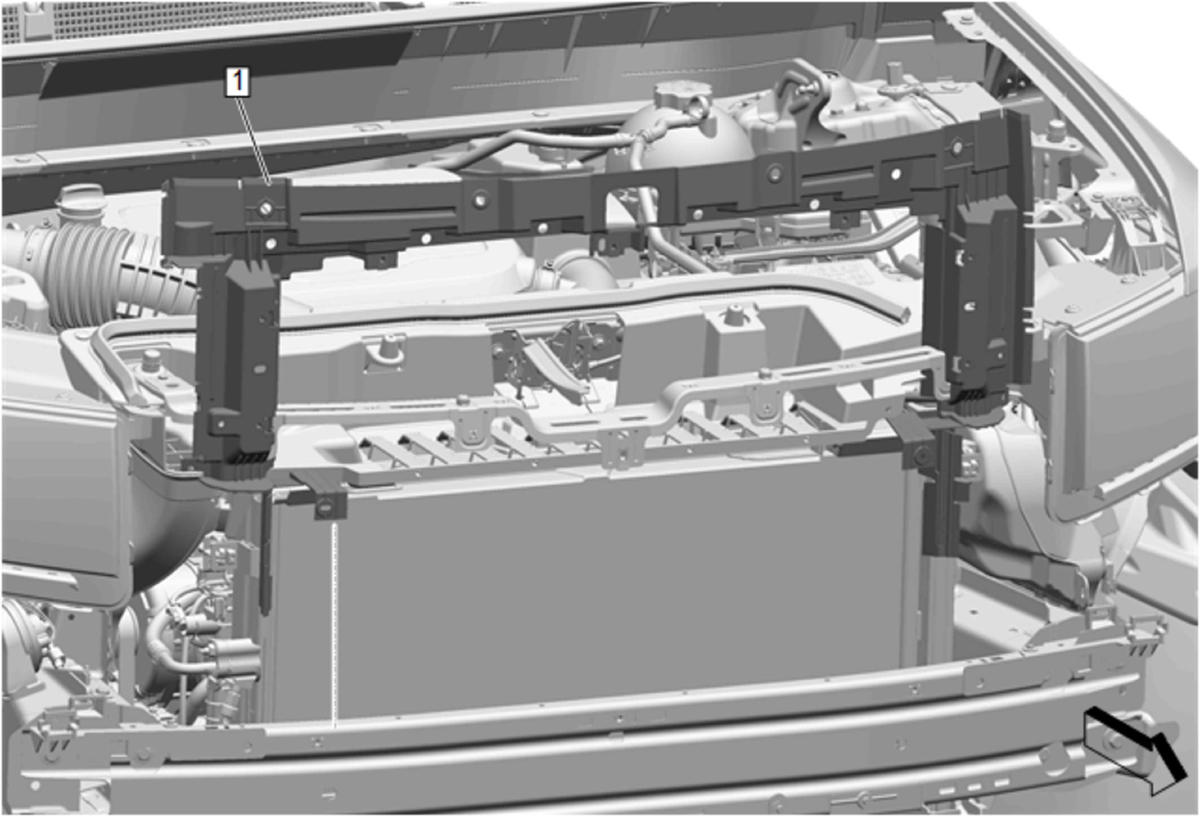

Radiator Air Upper Baffle - Install - Radiator Air Upper Baffle Replacement (LSY)
Radiator Support Baffle - Install - Radiator Support Baffle Replacement (LSY)
Courtesy of GENERAL MOTORS COMPANY

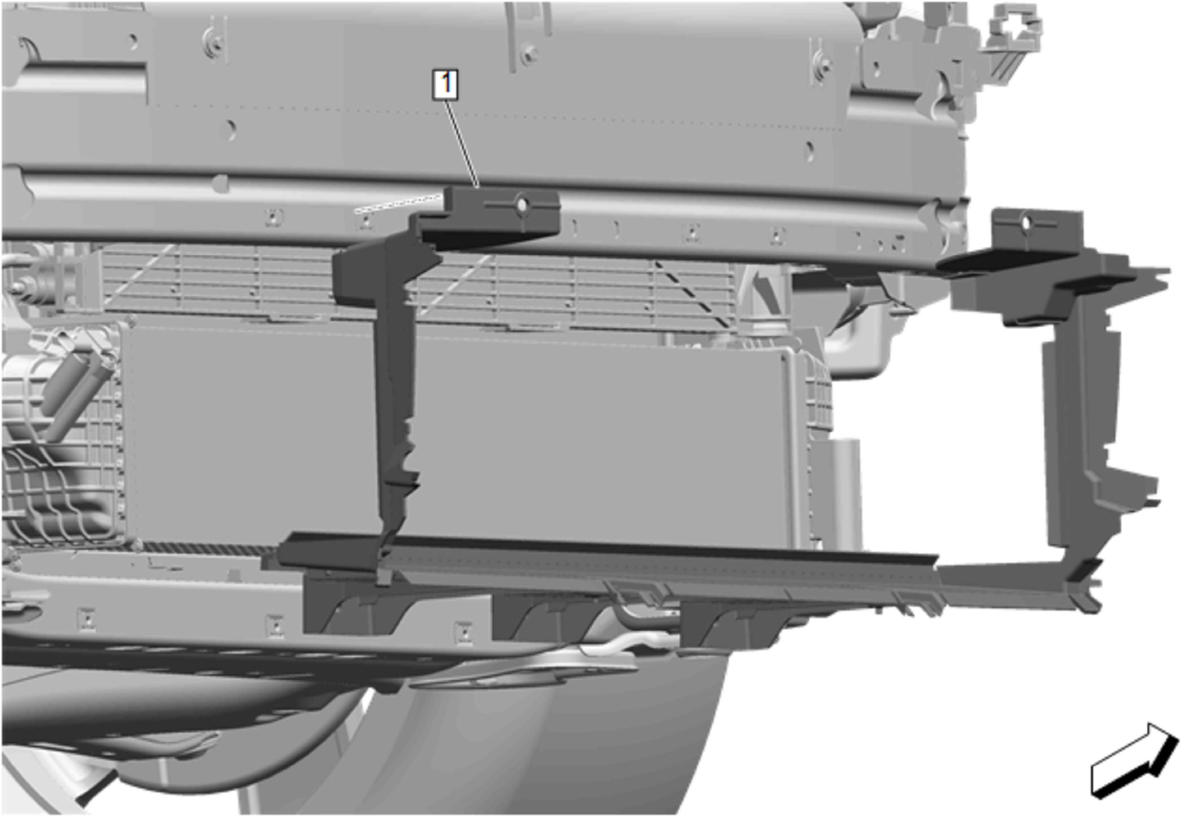

Radiator Air Front Upper Baffle (1) - Install - Radiator Air Front Upper Baffle Replacement (LSY)
Courtesy of GENERAL MOTORS COMPANY

Radiator Air Front Lower Baffle (1) - Install - Radiator Air Front Lower Baffle Replacement (LSY)
Intake Air Splash Shield - Install - Intake Air Splash Shield Replacement
Front Bumper Fascia - Install - Front Bumper Fascia Removal and Installation
Fill the cooling system to the proper level. Cooling System Draining and Filling (Static Fill LSY) , or Cooling System Draining and Filling (GE 47716 LSY)
Start the engine and check for coolant leaks.
