Engine Coolant Temperature Sensor Replacement - Engine Coolant Flow Control Valve

WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

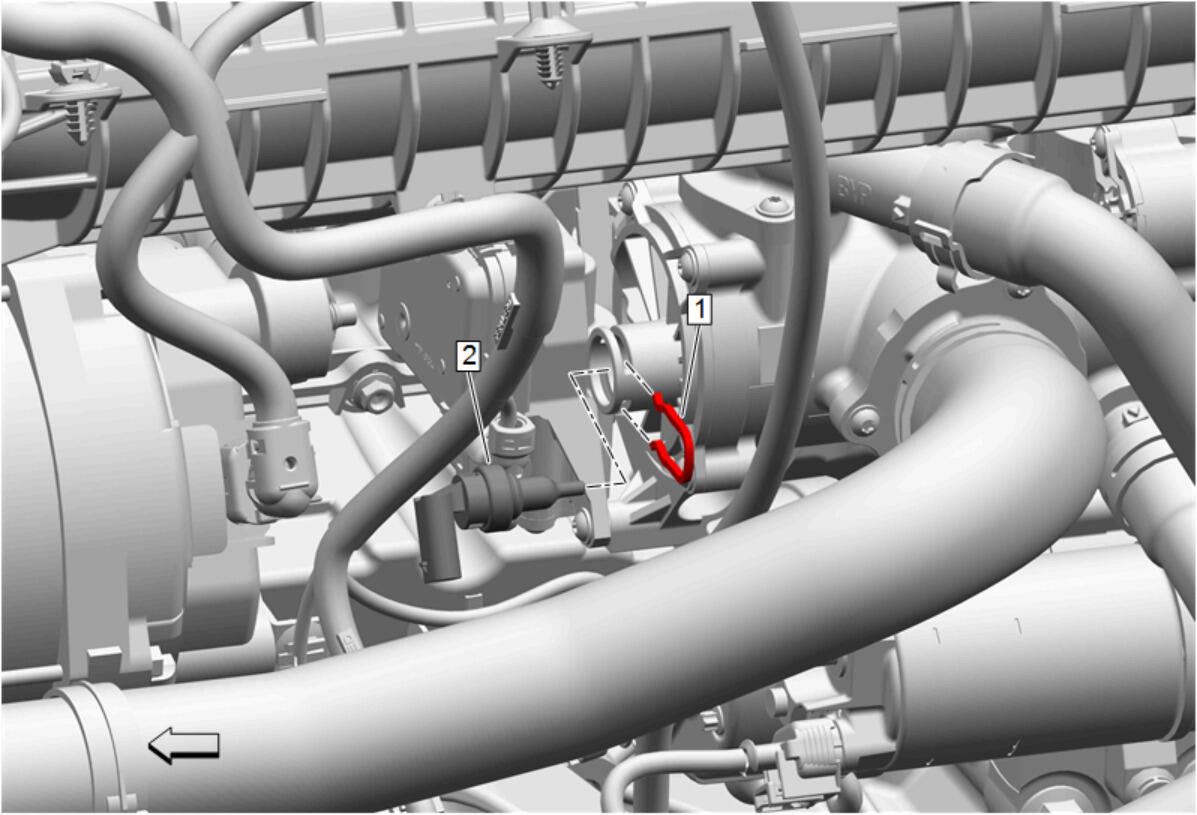

NOTE: Callouts items in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedures Drain the cooling system. Cooling System Draining and Filling (Static Fill LGX) , or Cooling System Draining and Filling (GE 47716 LGX) , or Cooling System Draining and Filling (Static Fill LSY) , or Cooling System Draining and Filling (GE 47716 LSY) Throttle Body Assembly Replacement
1	Engine Coolant Temperature Sensor Retainer
2	Engine Coolant Temperature Sensor Engine Coolant Temperature Sensor Electrical Connector - Disconnect Fill the cooling system to the proper level. Cooling System Draining and Filling (Static Fill LGX) , or Cooling System Draining and Filling (GE 47716 LGX) , or Cooling System Draining and Filling (Static Fill LSY) , or Cooling System Draining and Filling (GE 47716 LSY) Start the engine and check for coolant leaks.

Callout

Component Name

Preliminary Procedures

Drain the cooling system. Cooling System Draining and Filling (Static Fill LGX) , or Cooling System Draining and Filling (GE 47716 LGX) , or Cooling System Draining and Filling (Static Fill LSY) , or Cooling System Draining and Filling (GE 47716 LSY)
Throttle Body Assembly Replacement

Engine Coolant Temperature Sensor Retainer

Engine Coolant Temperature Sensor

Engine Coolant Temperature Sensor Electrical Connector - Disconnect
Fill the cooling system to the proper level. Cooling System Draining and Filling (Static Fill LGX) , or Cooling System Draining and Filling (GE 47716 LGX) , or Cooling System Draining and Filling (Static Fill LSY) , or Cooling System Draining and Filling (GE 47716 LSY)
Start the engine and check for coolant leaks.
