Installation Procedure
WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

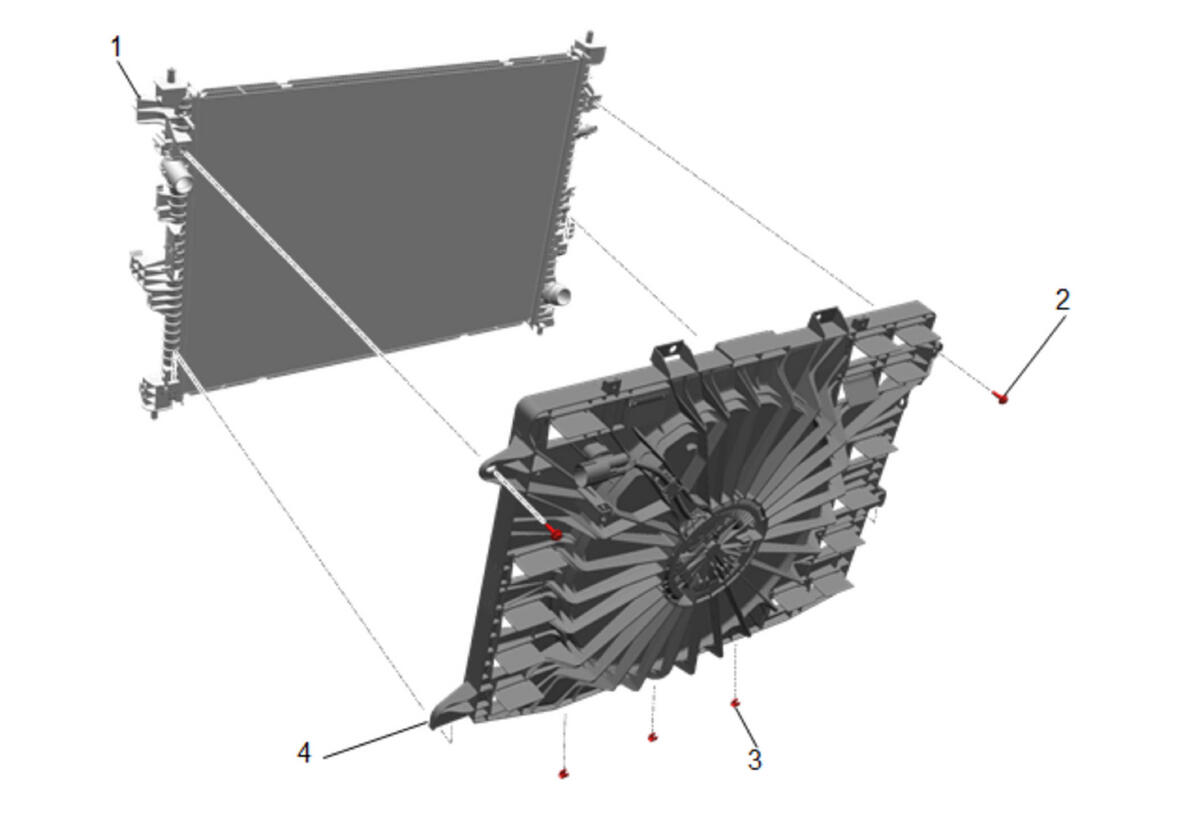

Engine Coolant Fan (4) @Radiator (1) - Install
- Engine Coolant Fan Shroud Retainer (3) Install [3x]
- Engine Coolant Fan Bolt (2) - Install and tighten [2x] 7 N.m (62 lb in)

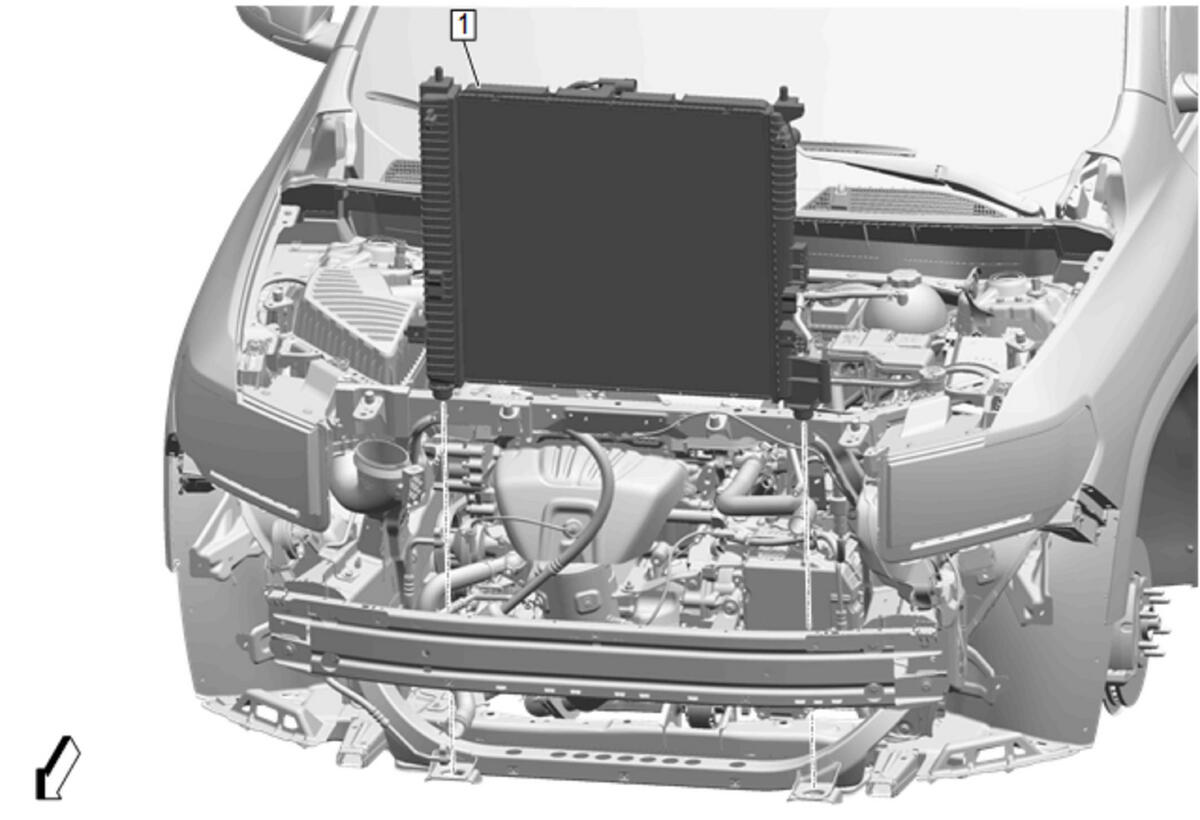

Engine Coolant Fan Module Radiator (1) - Install - Engine Coolant Fan Module Radiator Assembly Removal and Installation (LSY)
CAUTION:
Refer to Fastener Caution
