Installation Procedure

WARNING: This page is about a different car, the 2019 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Front Brake Caliper (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Fastener Caution

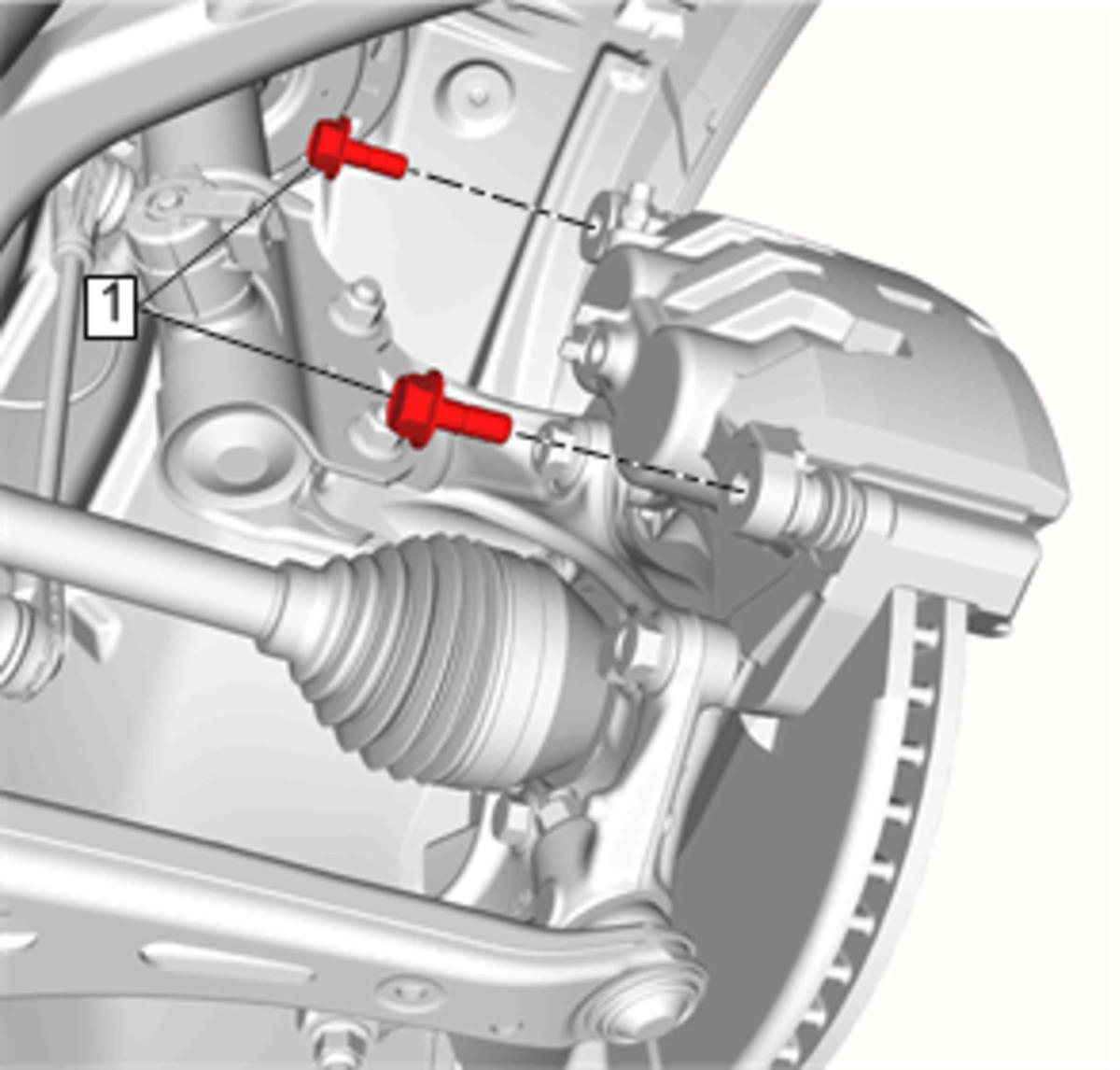

Front Brake Caliper Guide Pin Bolt (1) - Install and tighten [2x] 72 N.m (53 lb ft)
Courtesy of GENERAL MOTORS COMPANY

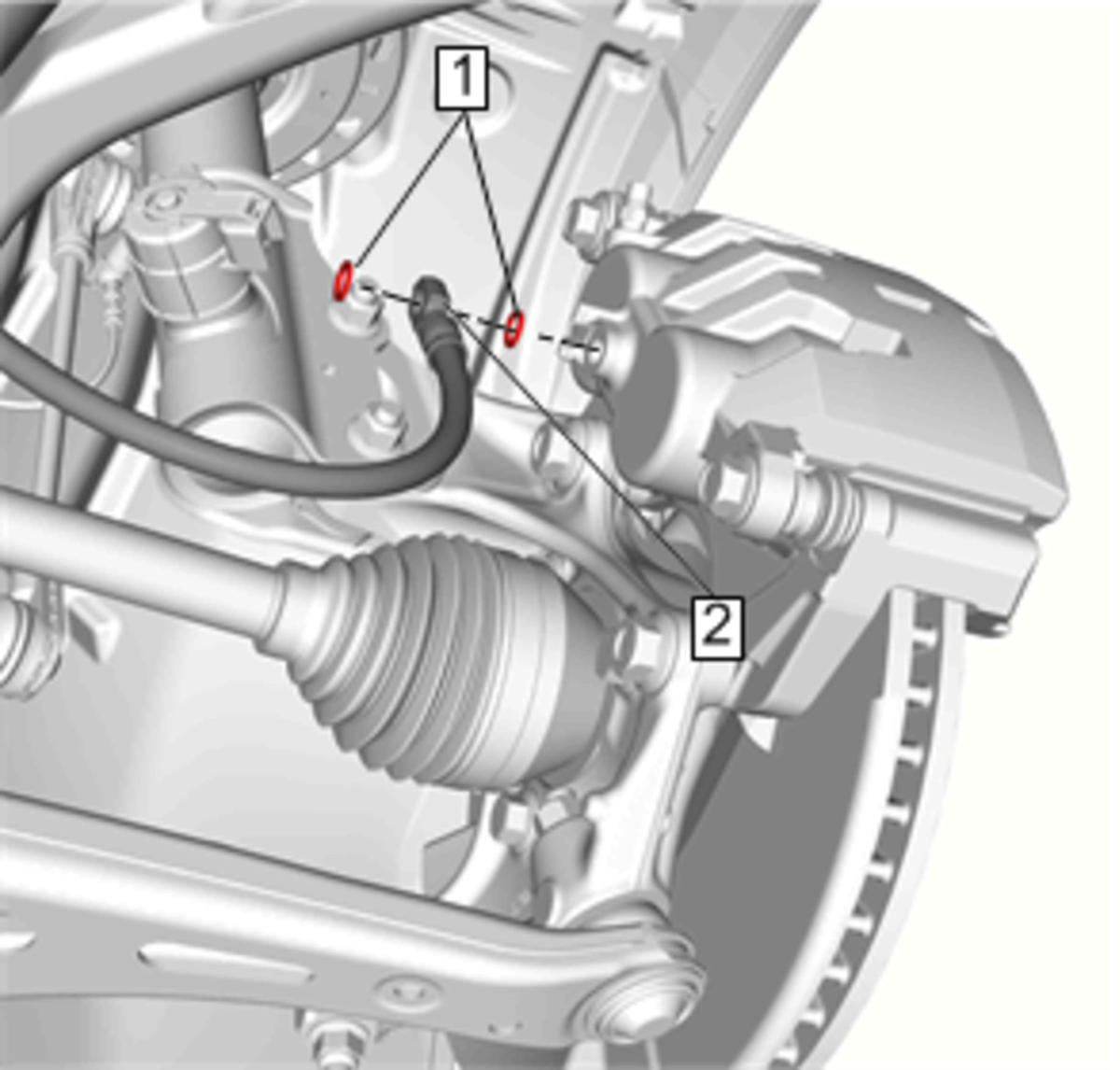

Front Brake Hose Fitting Gasket (1) @ Front Brake Hose Fitting (2) - Install NEW [2x]
Courtesy of GENERAL MOTORS COMPANY

Front Brake Hose Fitting (1) - Install - Front Brake Hose Replacement
Bleed the brake system. Hydraulic Brake System Bleeding (Manual) , or Hydraulic Brake System Bleeding (Pressure)
Install the front tire and wheel assembly. Tire and Wheel Removal and Installation
Remove the support and lower the vehicle.
