Installation Procedure
WARNING: This page is about a different car, the 2019 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
- NOTE:
The upper brake caliper guide pin is equipped with a bushing and must be installed in the same position.

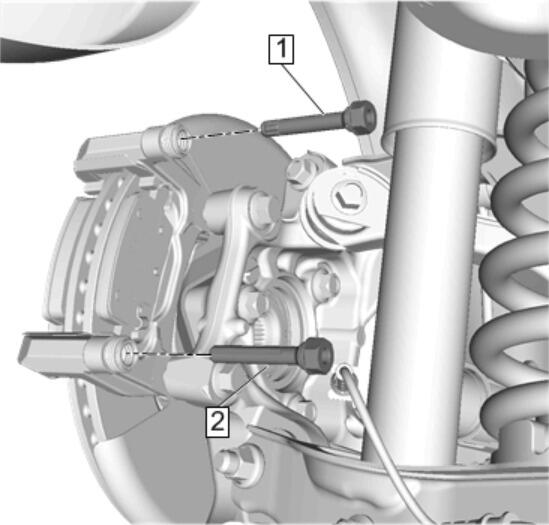

Upper Brake Caliper Guide Pin (1) - Install
- Lower Brake Caliper Guide Pin (2) - Install

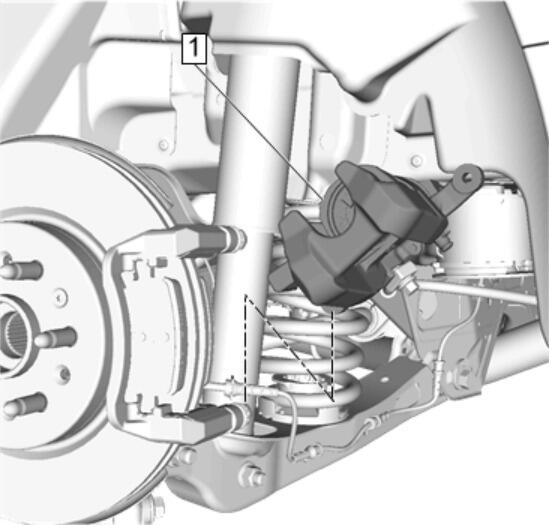

Rear Brake Caliper (1) - Install

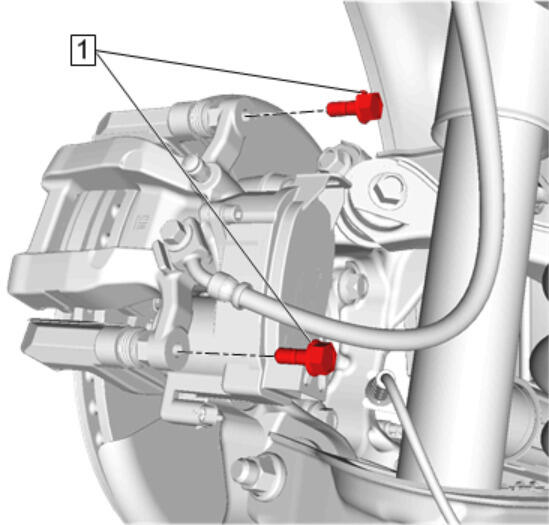

Brake Caliper Guide Pin Bolt (1) - Install [2x] - Rear Brake Caliper Replacement
- Parking Brake Actuator - Install Parking Brake Actuator Replacement
- Install the tire and wheel assembly. Tire and Wheel Removal and Installation
- Remove the supports and lower the vehicle.
