Installation Procedure

WARNING: This page is about a different car, the 2019 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

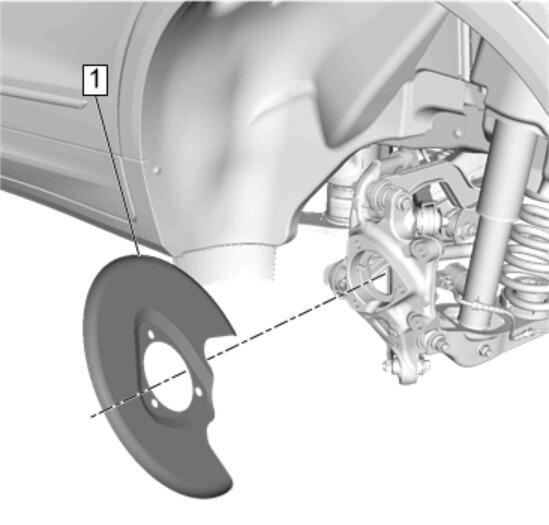

  1. GM4282288Courtesy of GENERAL MOTORS COMPANY

    Rear Brake Shield (1) - Install

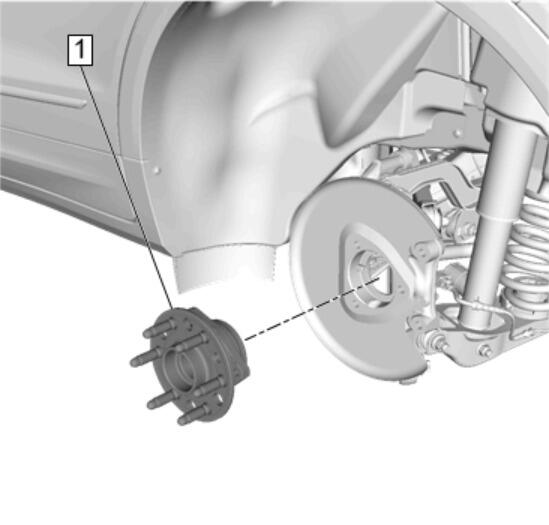

  2. GM4282286Courtesy of GENERAL MOTORS COMPANY

    Rear Wheel Bearing and Hub Assembly (1) - Install - Rear Wheel Bearing and Hub Replacement (AWD) , or Rear Wheel Bearing and Hub Replacement (FWD)

  3. Install the tire and wheel assembly. Tire and Wheel Removal and Installation
