Left Rear Door Components
NOTE:

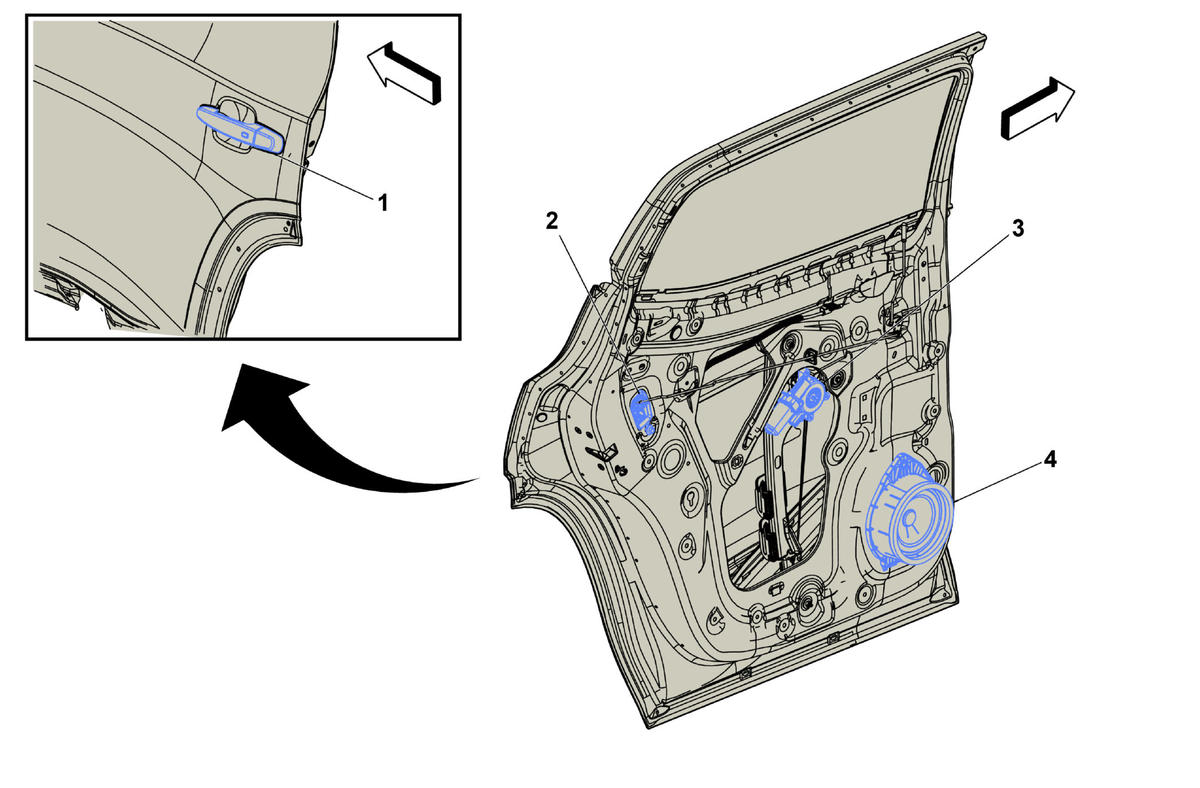

Callouts in the following chart represent components shown in graphic above.
Left Rear Door Components
| Component Name | Callout |
|---|---|
| A24LR Door Handle Assembly - Left Rear Exterior (ATH/ATS) A24LR Door Handle Assembly - Left Rear Exterior (ATH/ATS) | 1 |
| A23LR Door Latch Assembly - Left Rear A23LR Door Latch Assembly - Left Rear | 2 |
| M74LR Window Motor - Left Rear (AEQ) M74LR Window Motor - Left Rear (AEQ) | 3 |
| P19AL Speaker - Left Rear Door P19AL Speaker - Left Rear Door (UQA) , or P19AL Speaker - Left Rear Door (UQF) | 4 |
