Steering Column Upper Trim Cover Replacement

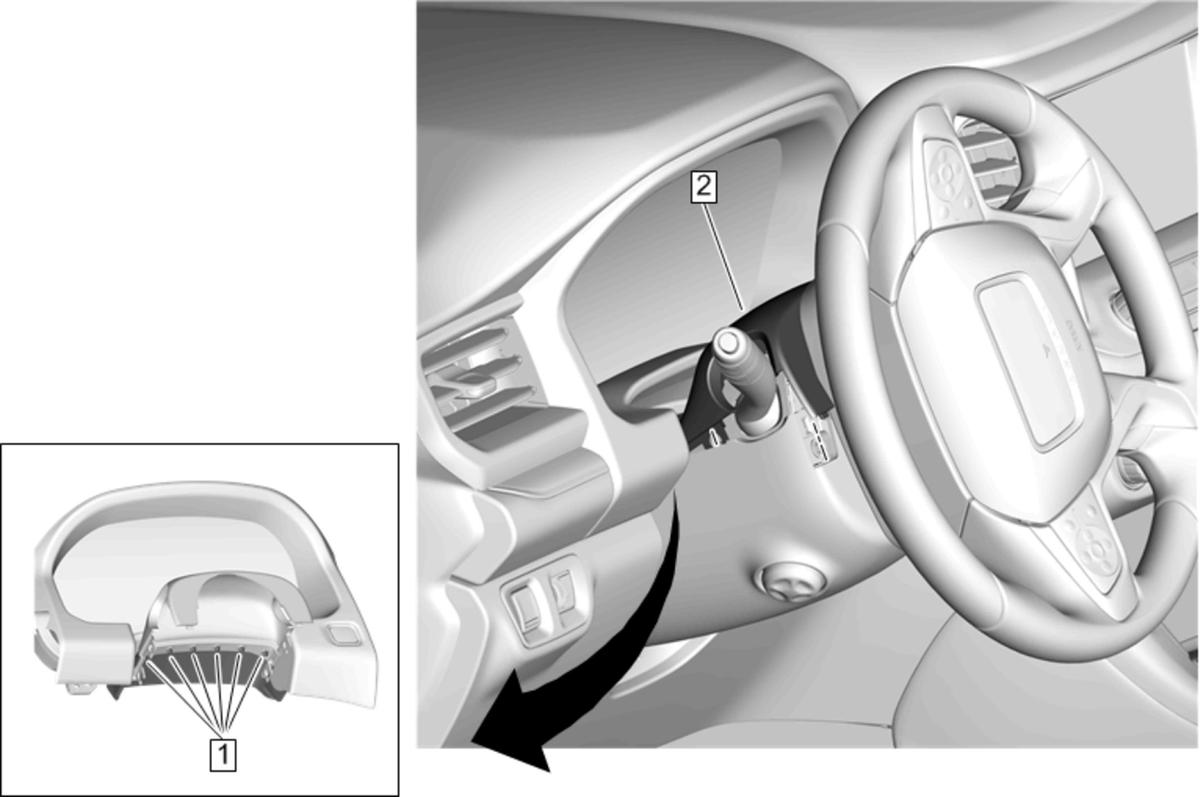

GM4399615Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Callout Component Name
1 Instrument Panel Steering Column Opening Closeout
2 Steering Column Upper Trim Cover

Procedure

  1. Use a flat bladed plastic trim tool in order to release the tabs securing the upper trim cover to the lower trim cover.
  2. Reposition the upper trim cover to access and release the tabs on the bottom side of the steering column housing cover.
