Removal Procedure

  1. Remove the front tire and wheel assembly. Tire and Wheel Removal and Installation

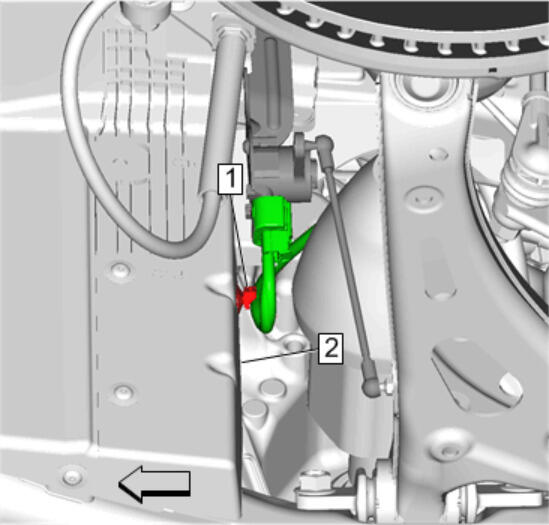

  2. Separate the front leveling system position sensor harness clip (1) from the front compartment splash shield (2).
    GM4408993Courtesy of GENERAL MOTORS COMPANY

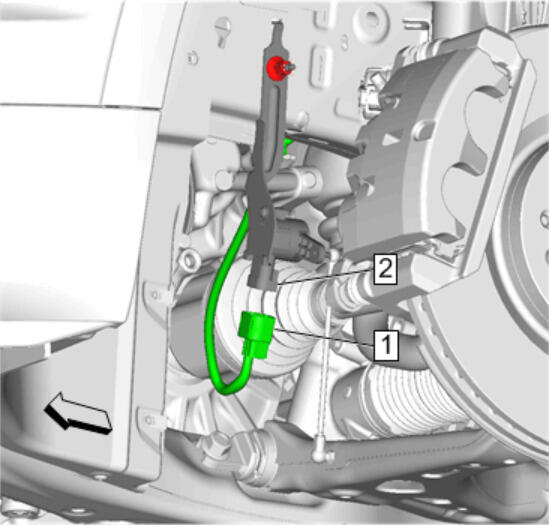

  3. Disconnect the electrical connector (1) from the front leveling system position sensor (2).
    GM4317797Courtesy of GENERAL MOTORS COMPANY

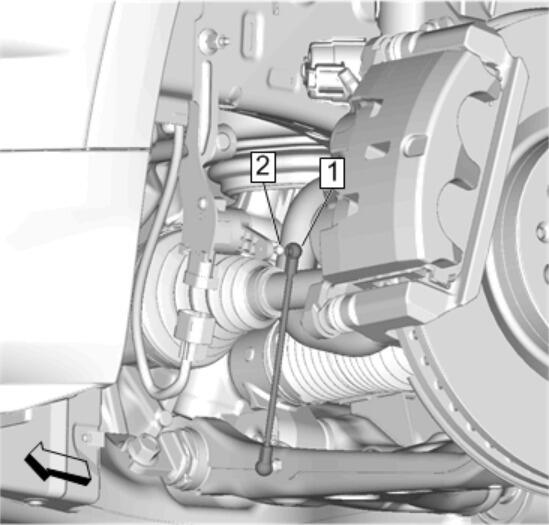

  4. Disconnect the link rod (1) from the leveling system position sensor (2).
    GM4317878Courtesy of GENERAL MOTORS COMPANY

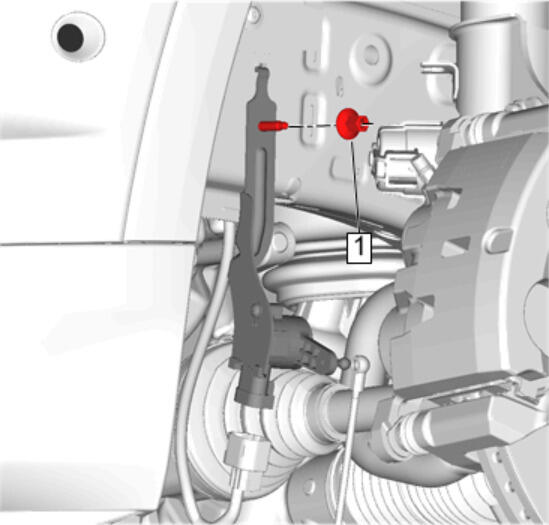

  5. Remove the leveling system position sensor bracket nut (1).
    GM4317900Courtesy of GENERAL MOTORS COMPANY

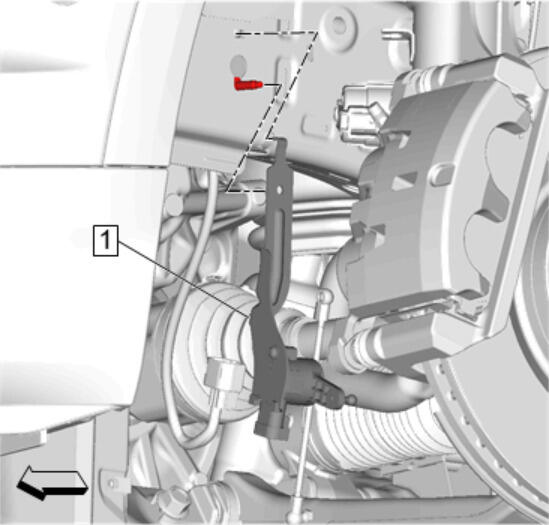

  6. Remove the front leveling system position sensor and bracket (1) from the vehicle.
    GM4317910Courtesy of GENERAL MOTORS COMPANY
