Removal Procedure

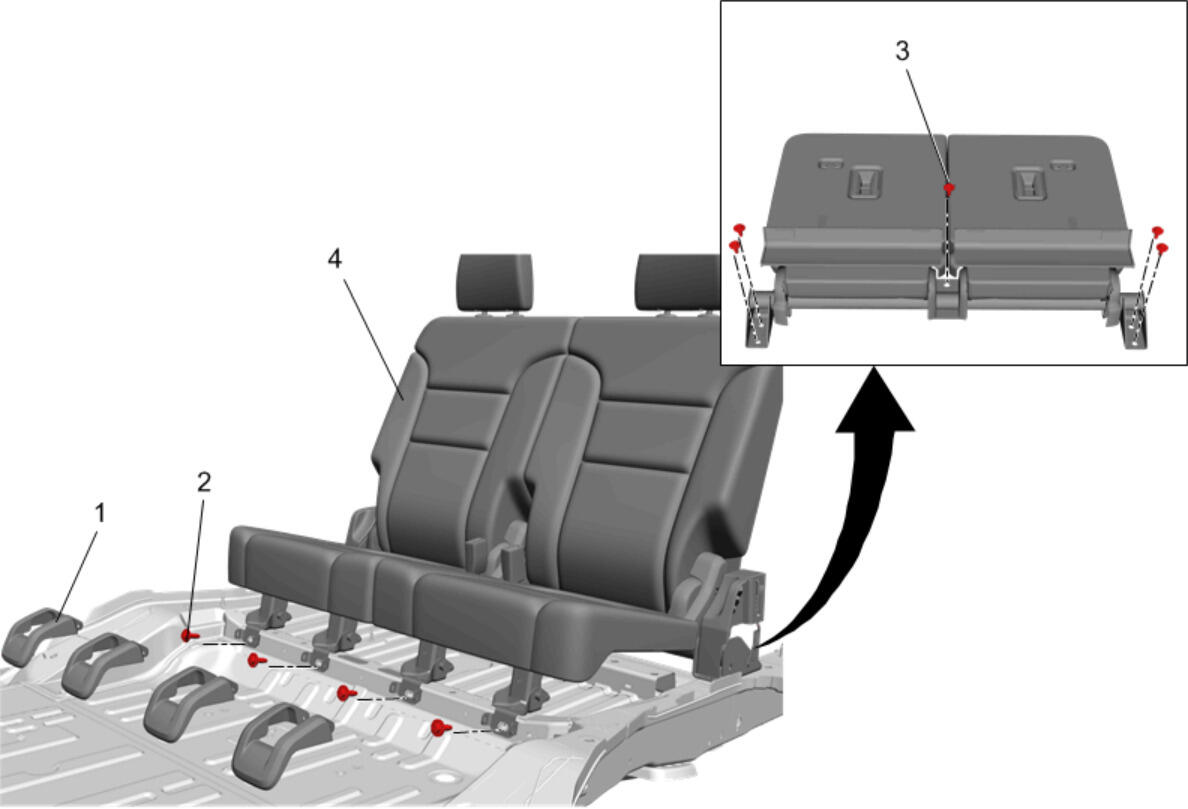

3rd Row Seat (4) - Remove - 3rd Row Seat Removal and Installation

Courtesy of GENERAL MOTORS COMPANY

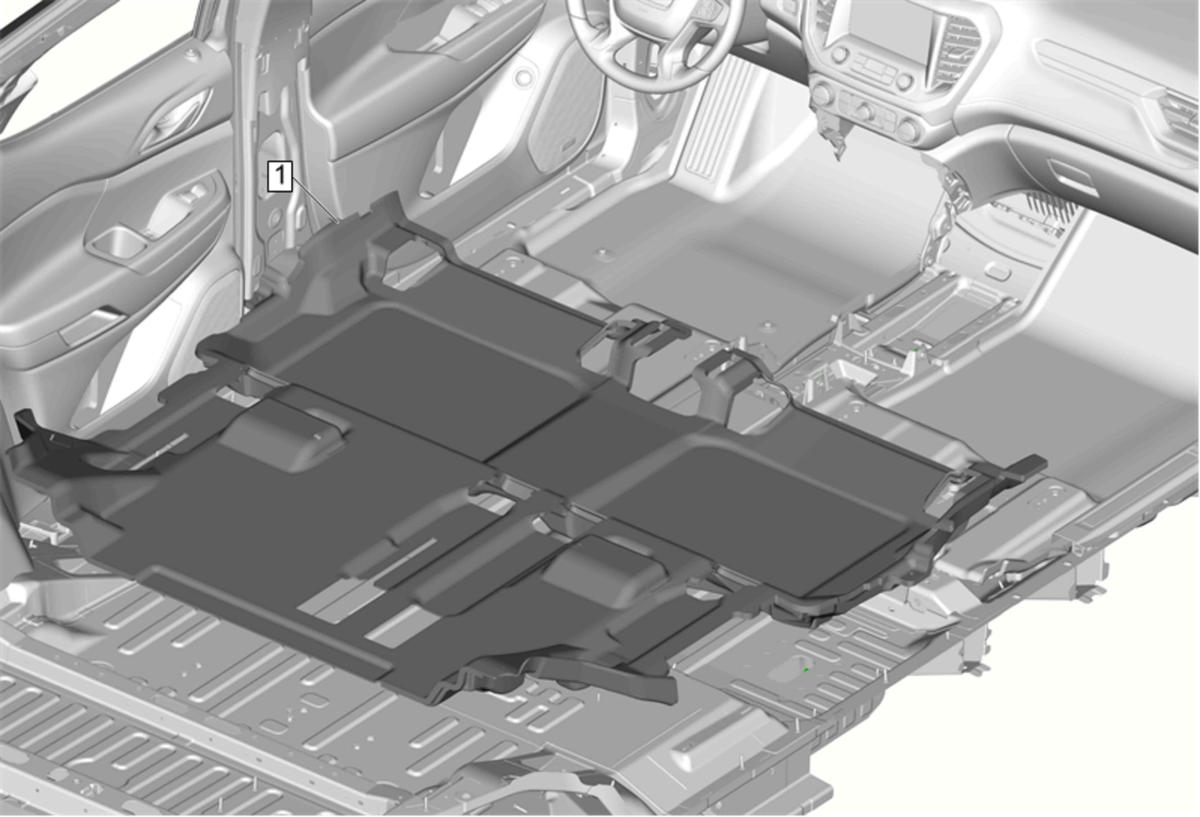

Rear Floor Panel Carpet (1) - Reposition away - Rear Floor Panel Carpet Replacement

Courtesy of GENERAL MOTORS COMPANY

NOTE:
It is only necessary to reposition the carpet enough to access the electronic suspension control module bracket.
Electronic Suspension Control Module Bracket Nut (1) - Remove [3x]

Courtesy of GENERAL MOTORS COMPANY
Electronic Suspension Control Module (2) - Remove
Remove the electronic suspension control module (1) by releasing the tab as indicated on the electronic suspension control module bracket (2).

Courtesy of GENERAL MOTORS COMPANY
Electrical Connector @ Electronic Suspension Control Module - Disconnect
