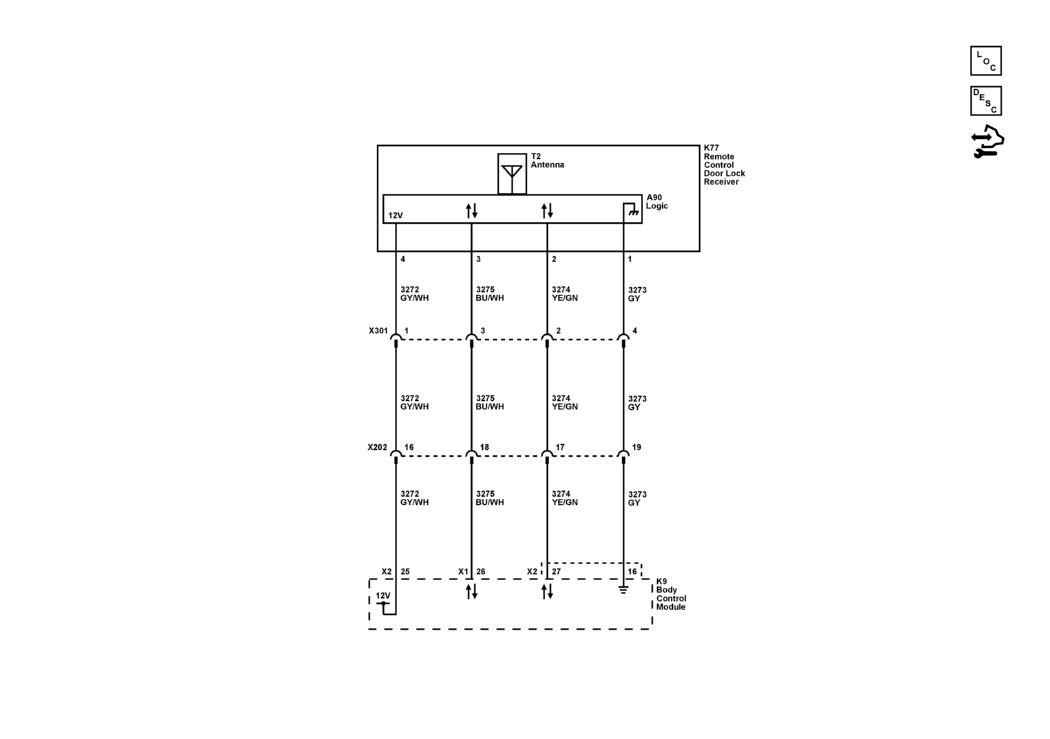

Home › GMC › 2021 › Canyon AT4, 3.6L Eng VIN N › Repair and Diagnosis › Body & Frame › Door Locks › Keyless Entry System And Remote Functions › Schematic Wiring Diagrams › Remote Function Wiring Schematics › Keyless Entry
