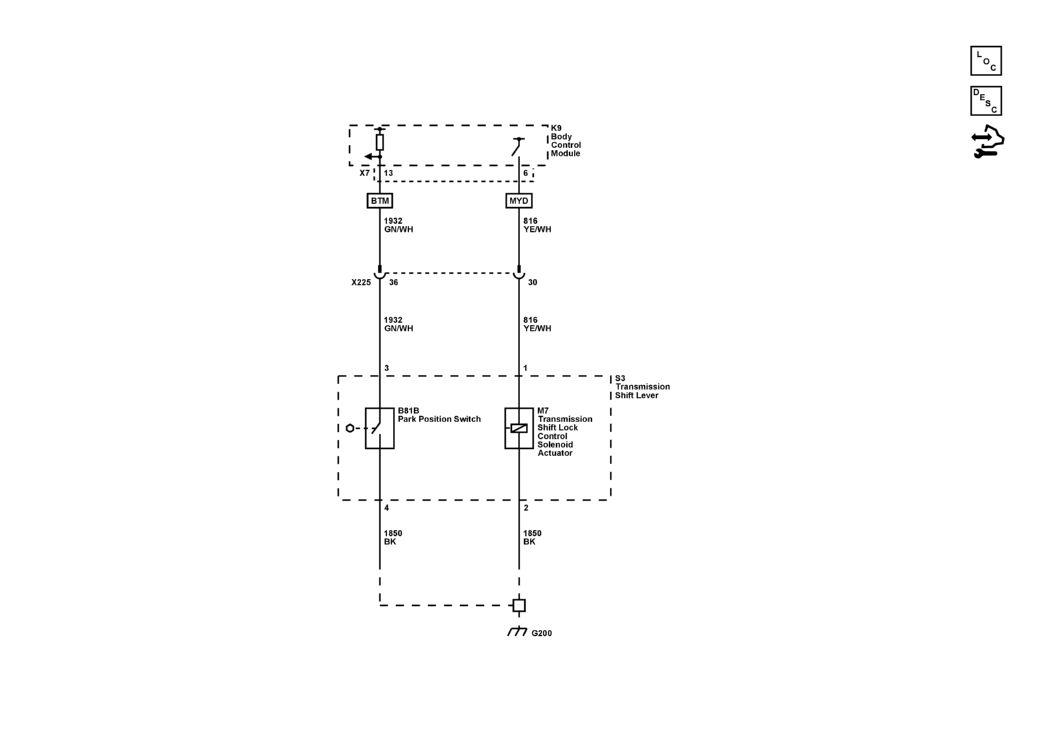

Home › GMC › 2021 › Sierra 2500 HD AT4, 6.6L Eng VIN Y › Repair and Diagnosis › Transmission › Automatic Trans › Shift Lock Control System › Wiring Schematic and Wiring Routing Diagrams › Shift Lock Control Schematics › Shift Lock Control
