Home › GMC › 2021 › Terrain SL › Repair and Diagnosis › Body & Frame › Fixed And MOVEABLE Windows › Schematic Wiring Diagrams › Defogger Wiring Schematics › Defogger

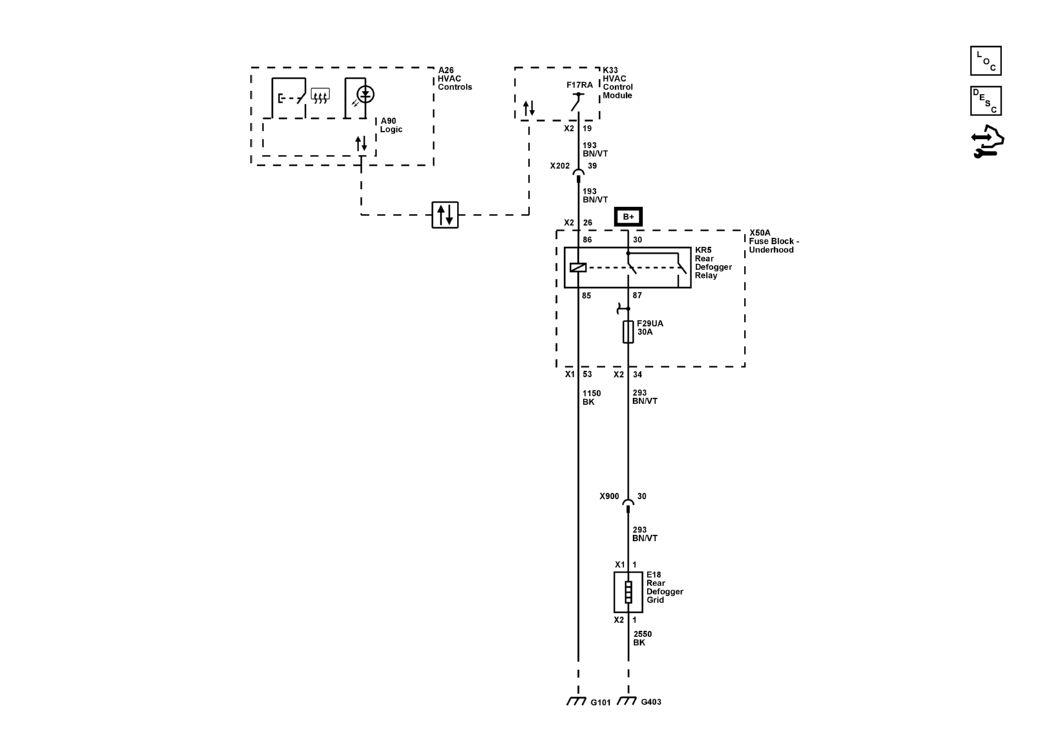

Defogger Wiring Schematics: Defogger

GM5491080Courtesy of GENERAL MOTORS COMPANY
