Installation Procedure
- Connect the electrical connectors.

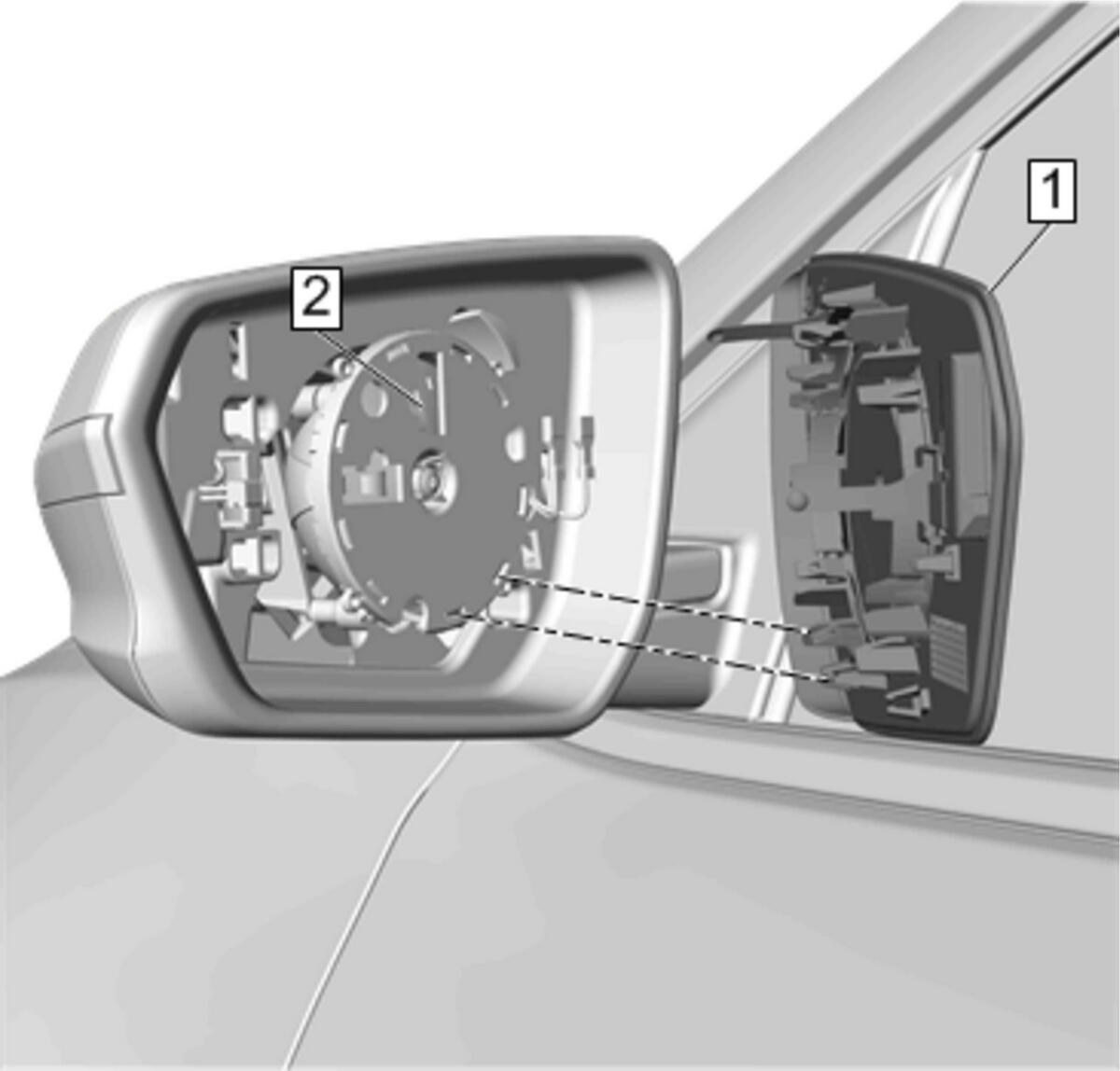

Place the outside rearview mirror glass (1) retainers in line with the lower inner actuator motor ring. (2)
- Place one hand on the back of the mirror housing, using the flat palm of the other hand press inward locking the outside rearview mirror glass (1) retainers to the inner actuator motor ring. (2)
Remove the masking tape from the outside rearview mirror glass. (1)
NOTE:Inspect the outside rearview mirror for proper operation.
