Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

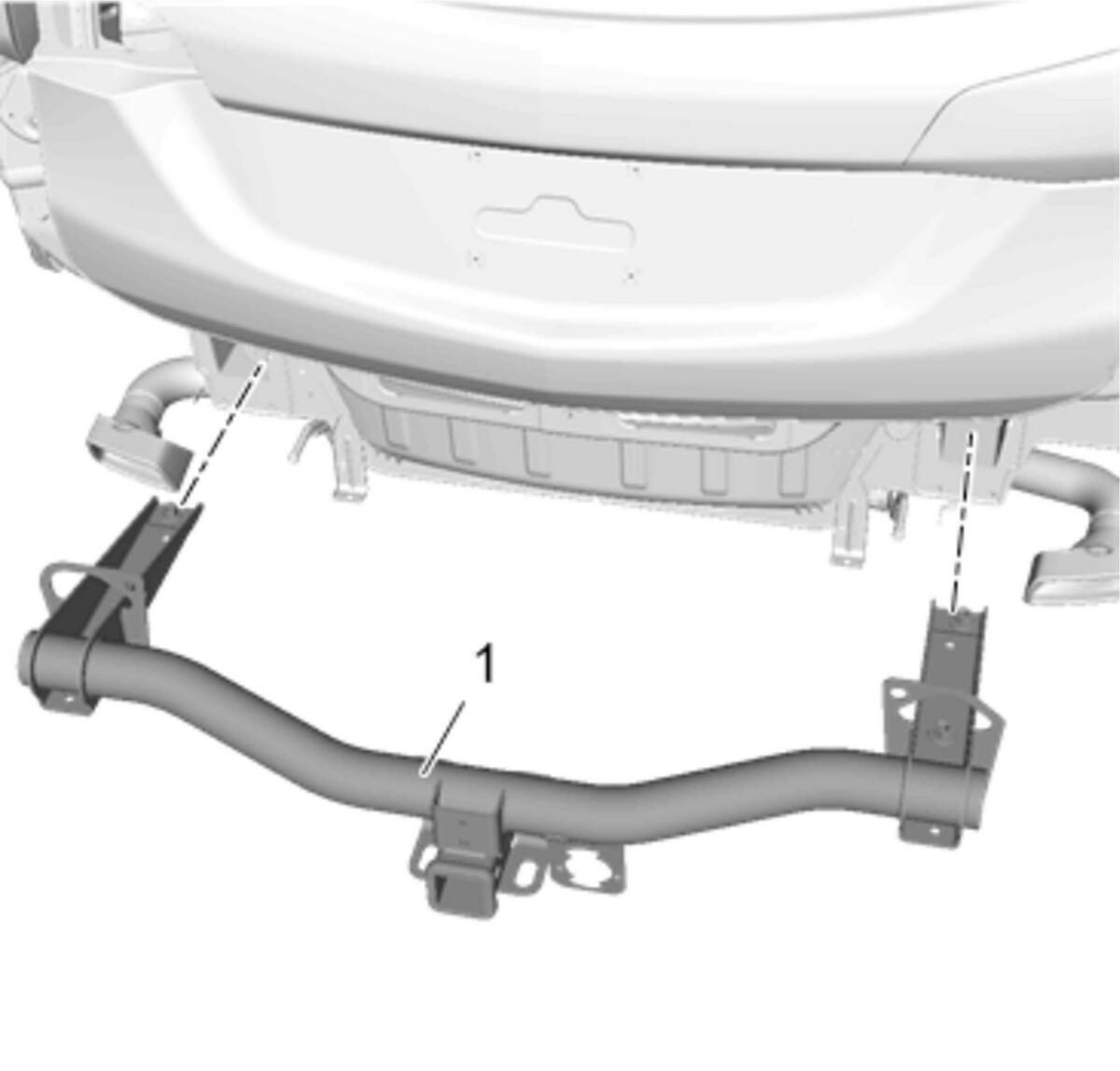

Push the trailer hitch assembly (1) into the vehicle.
Connect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

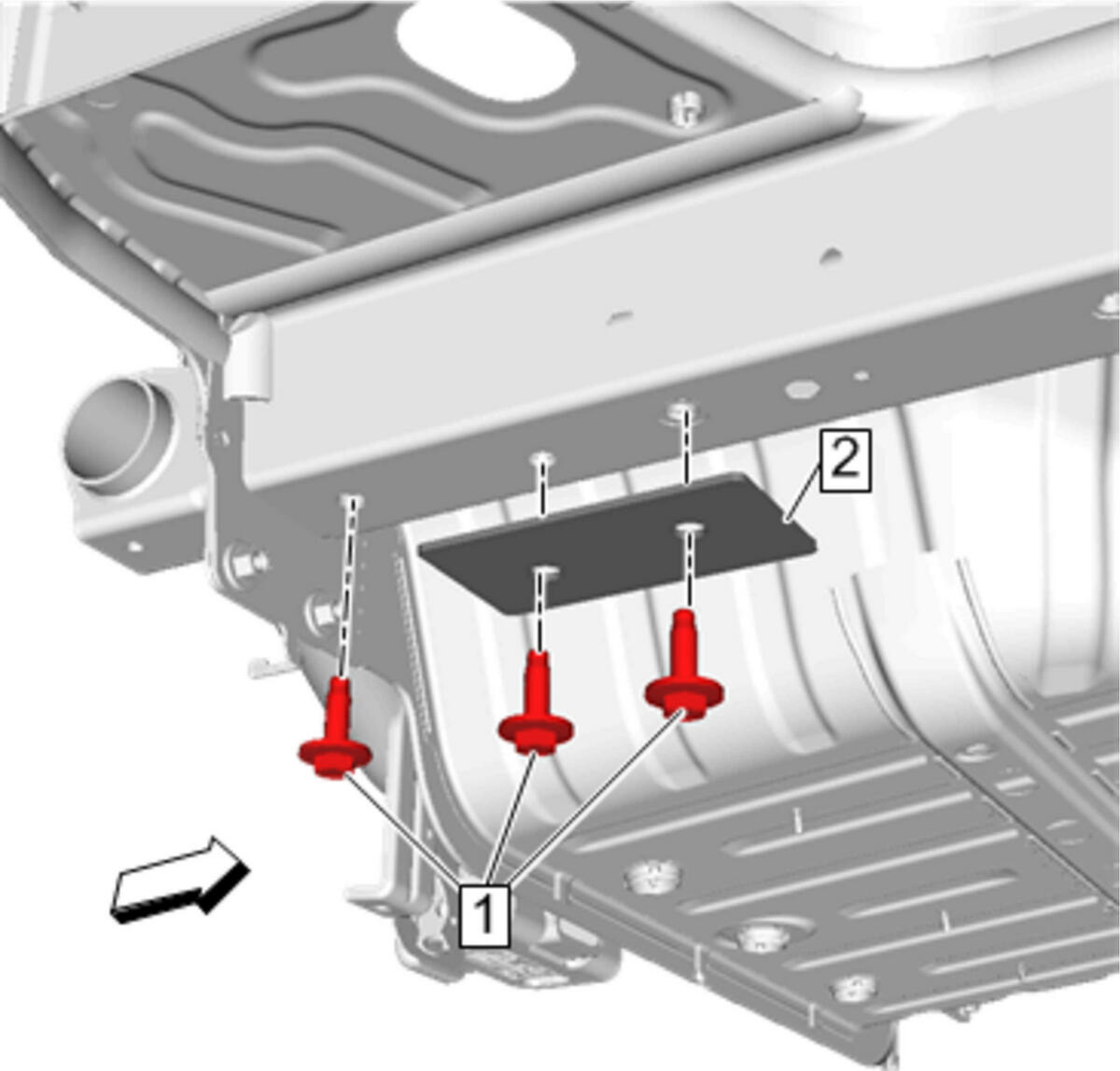

Install the left and right trailer hitch plates (2).

CAUTION:

Install the six bolts (1) and tighten to 100 N.m (74 lb-ft).
Courtesy of GENERAL MOTORS COMPANY

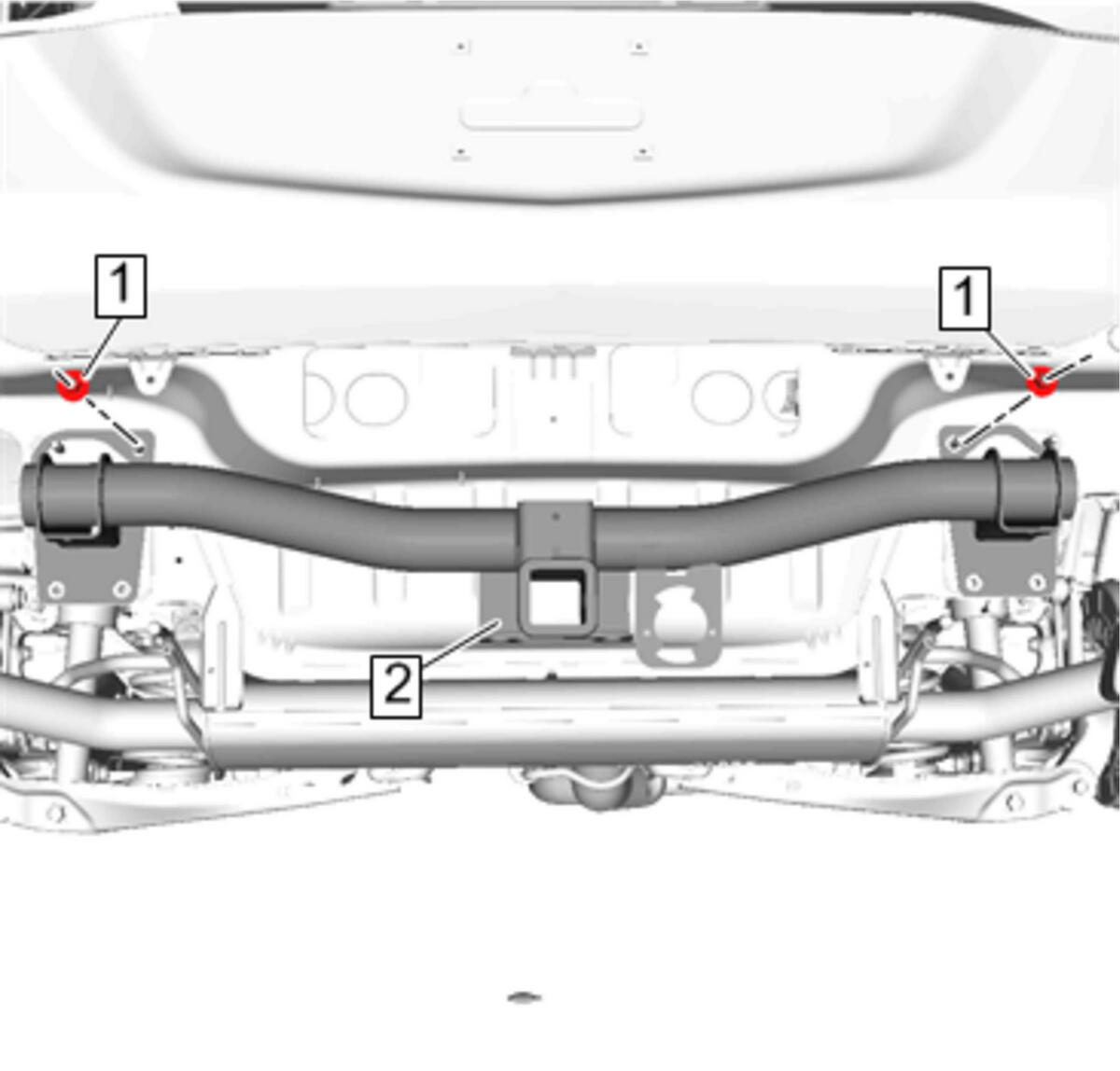

Install the trailer hitch retaining nuts (1) and tighten to 58 N.m (43 lb-ft).
Install the right and left exhaust rear muffler insulators to the trailer hitch. Exhaust Muffler Replacement (LTG, LYX)
Install the rear bumper fascia. Rear Bumper Fascia Replacement (Equinox) , or Rear Bumper Fascia Replacement (Terrain)
