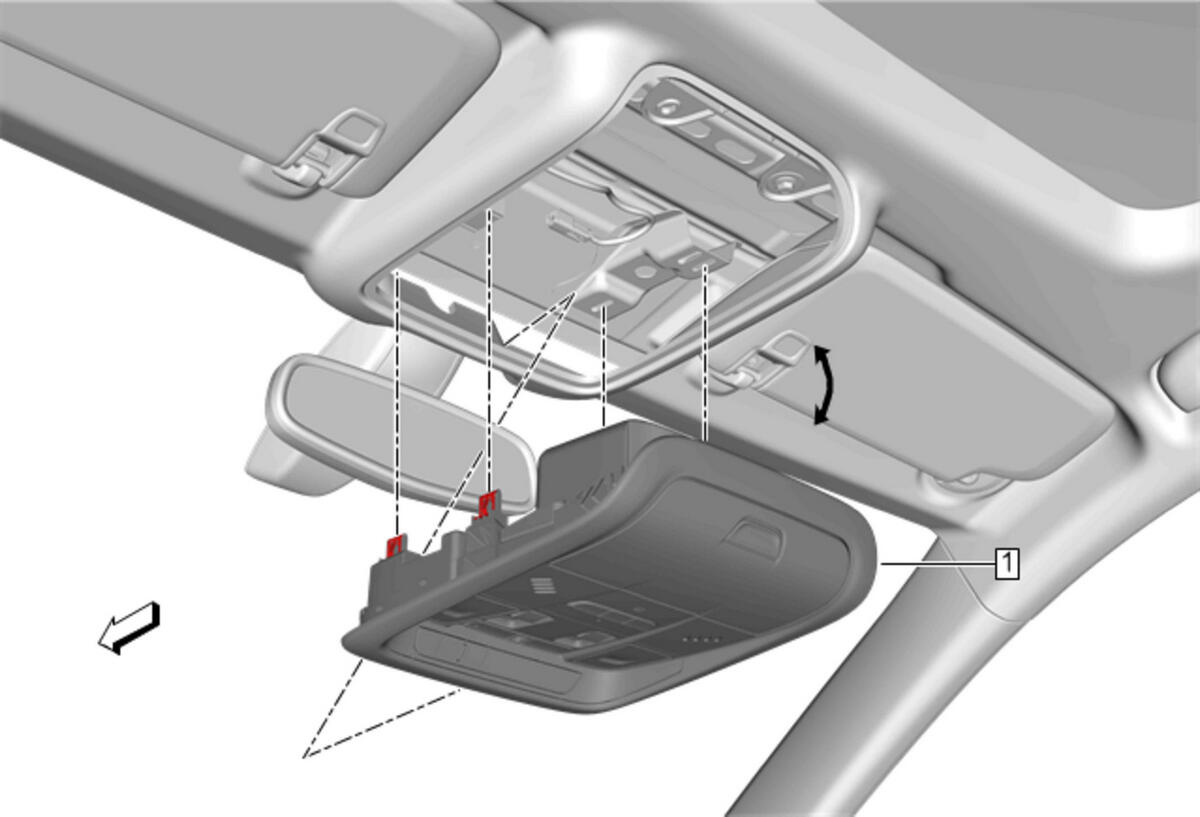

Roof Console Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Roof Console NOTE: Any Glue Removed During The Removal Of The Console Does Not Need To Be Reapplied. Procedure Grasp The Roof Console On Both Sides And Pull Down To Disengage The Clips. Continue To Lower The Roof Console Rear End First To Clear The Front Tabs. Disconnect All Electrical Connectors. Transfer Components As Necessary.

Callout

Component Name

Roof Console

NOTE:

Any Glue Removed During The Removal Of The Console Does Not Need To Be Reapplied.

Procedure
