Installation Procedure

WARNING: This page is about a different car, the 2020 GMC Terrain and 2020 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

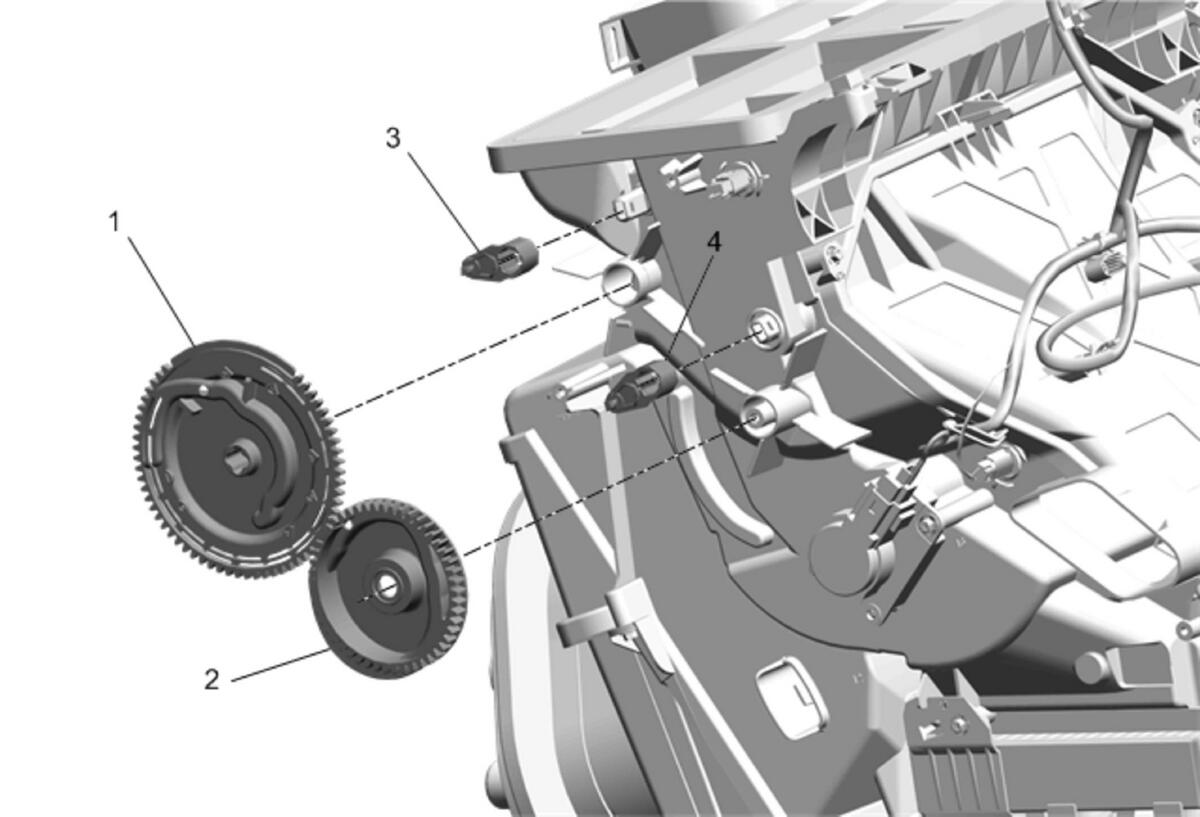

  1. GM3825691Courtesy of GENERAL MOTORS COMPANY

    Mode Valve Lever(4) - Install

  2. Defroster Valve Lever (3) - Install
  3. Mode Control Cam(2) - Install
  4. Mode Control Cam (1) - Install

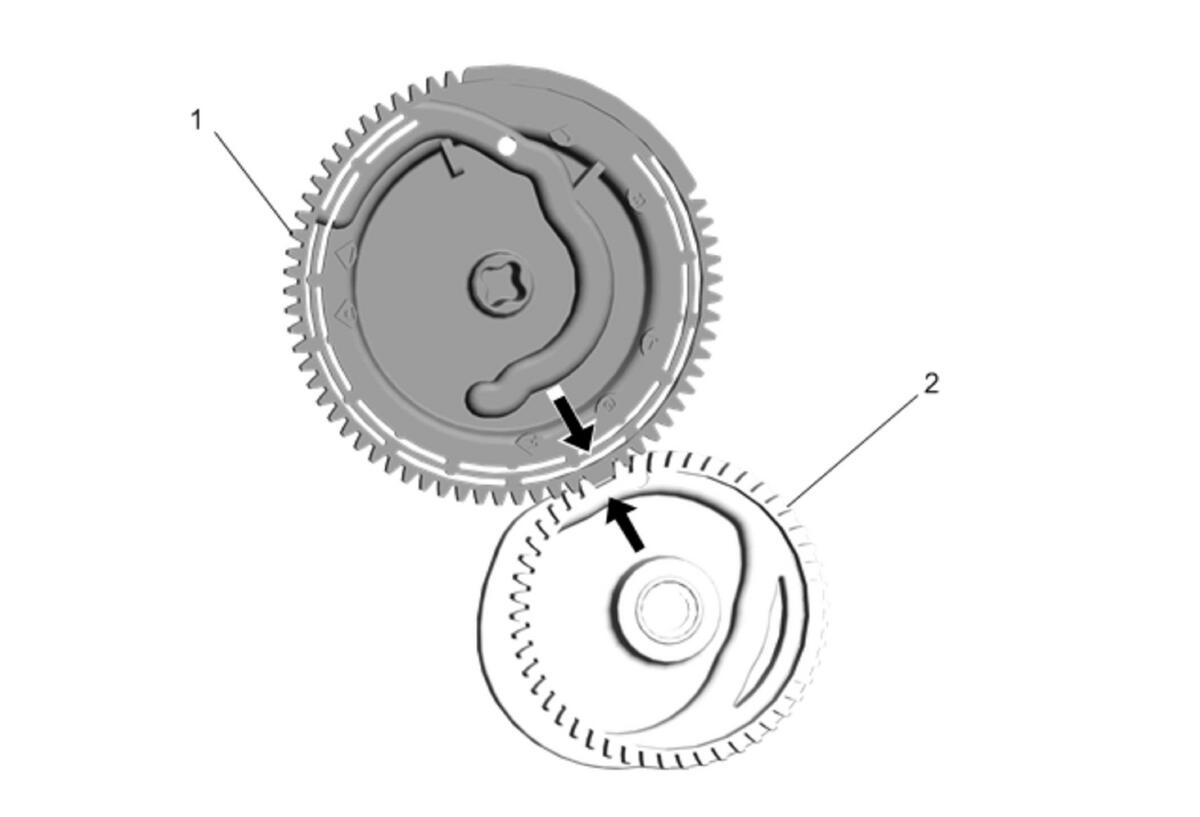

  5. GM3825687Courtesy of GENERAL MOTORS COMPANY

    Index the mode control valve cam (1) large male tooth to the mode control heater valve cam large female tooth (2) as indicated by the arrows.

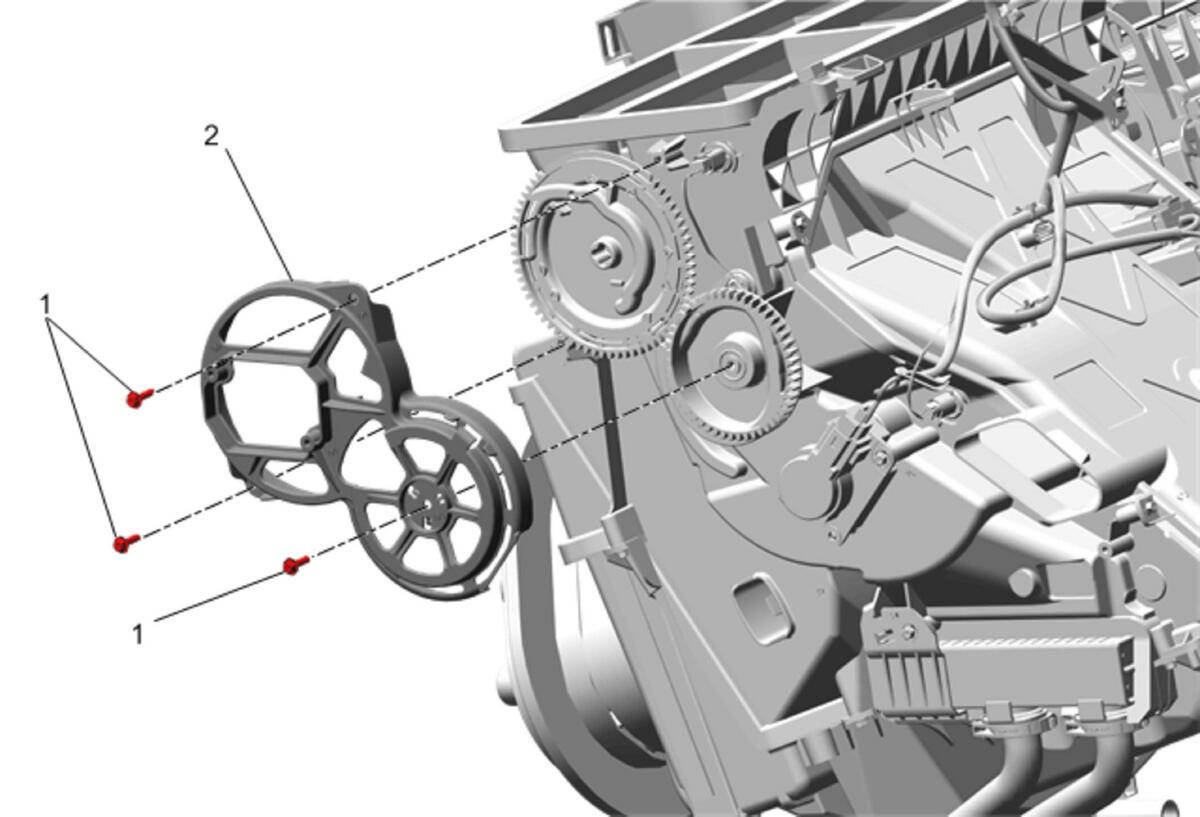

  6. GM3825692Courtesy of GENERAL MOTORS COMPANY

    Heater and Air Conditioning Mode Control Cam Cover(2) - Install

    7. CAUTION:

    Refer to Fastener Caution .

  7. Heater and Air Conditioning Mode Control Cam Cover Bolt (1) - Install [3x]2.5 N.m (22 lb in)

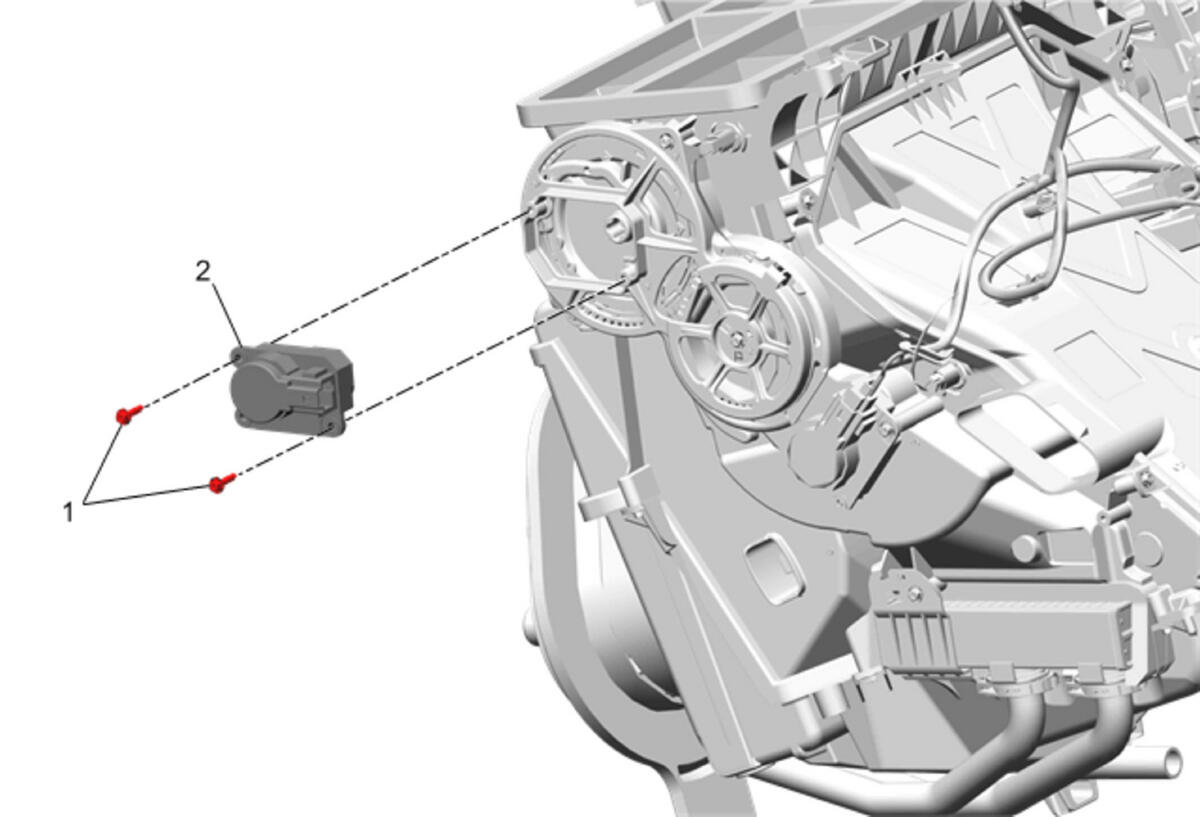

  8. GM3825695Courtesy of GENERAL MOTORS COMPANY

    Mode Valve Actuator(2) - Install - Mode Valve Actuator Replacement

  9. Connect the electrical connector.
  10. GM4003396Courtesy of GENERAL MOTORS COMPANY

    Install the brake pedal assembly. (1) Brake Pedal Assembly Replacement

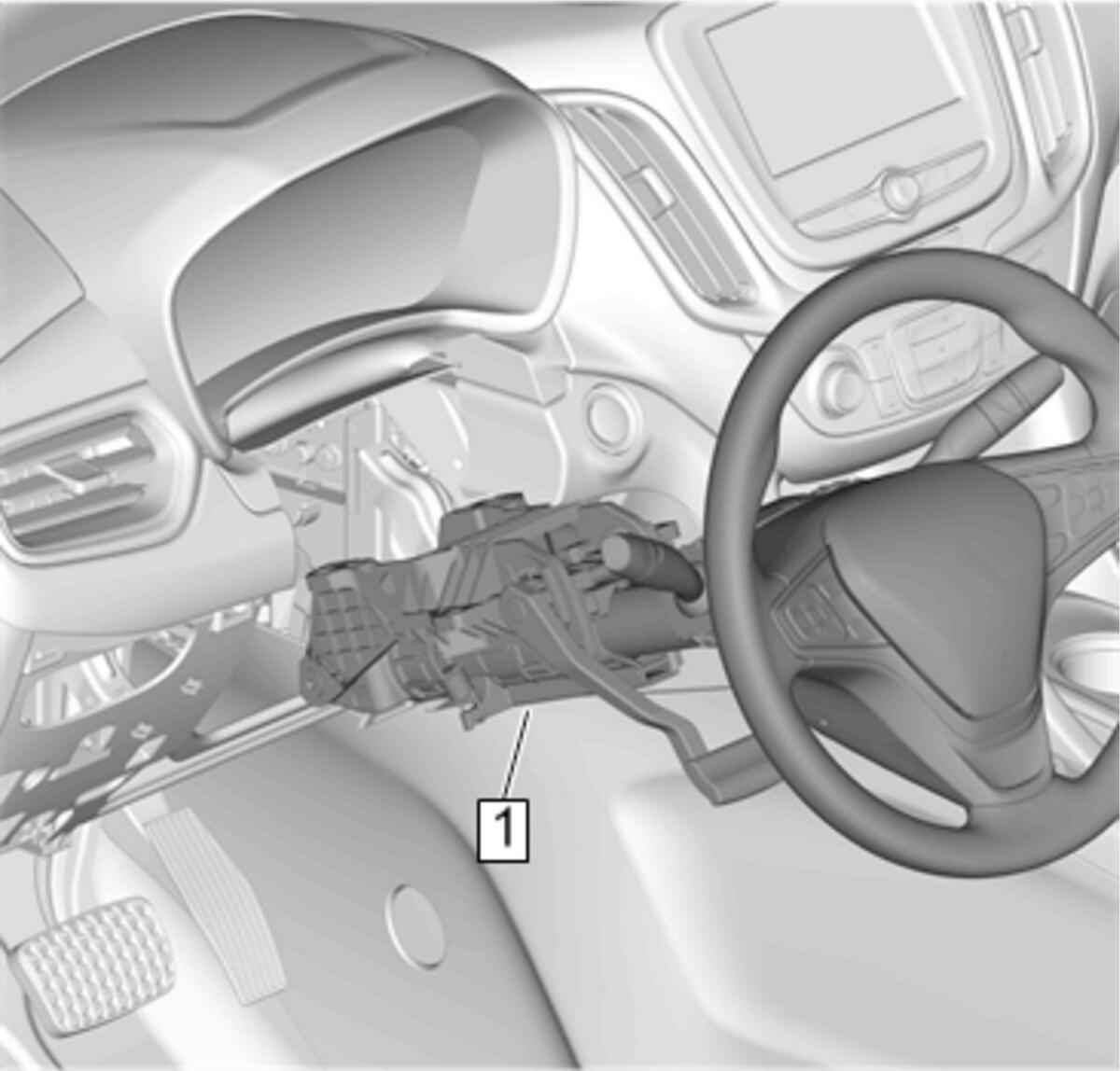

  11. GM4582859Courtesy of GENERAL MOTORS COMPANY

    Steering Column (1) - Install - Steering Column Replacement (Equinox) , or Steering Column Replacement (Terrain)

  12. Connect the steering column electrical connectors.

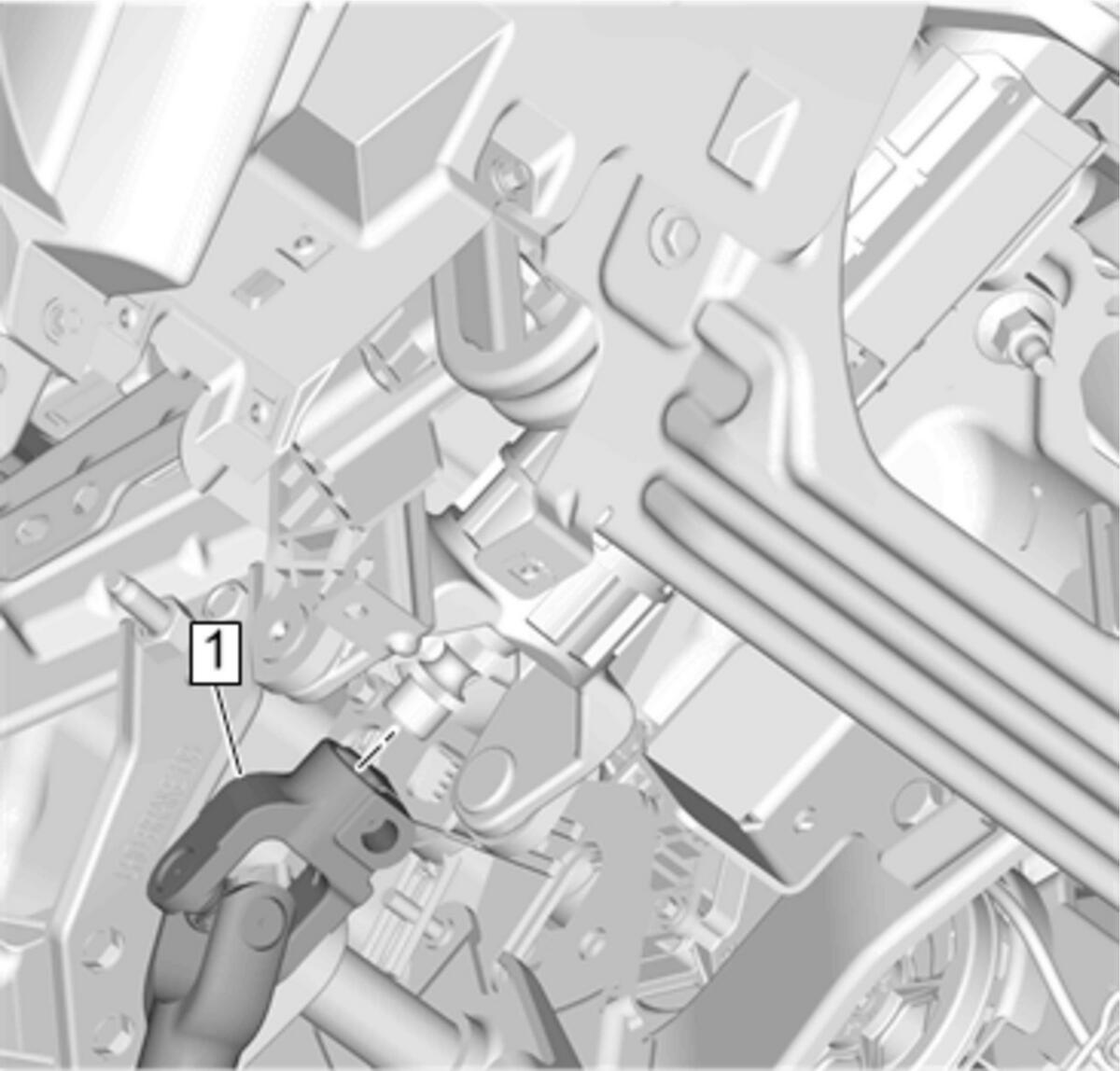

  13. GM4583376Courtesy of GENERAL MOTORS COMPANY

    Intermediate Steering Shaft (1) @Steering Column - Install - Intermediate Steering Shaft Replacement (Equinox) , or Intermediate Steering Shaft Replacement (Terrain)

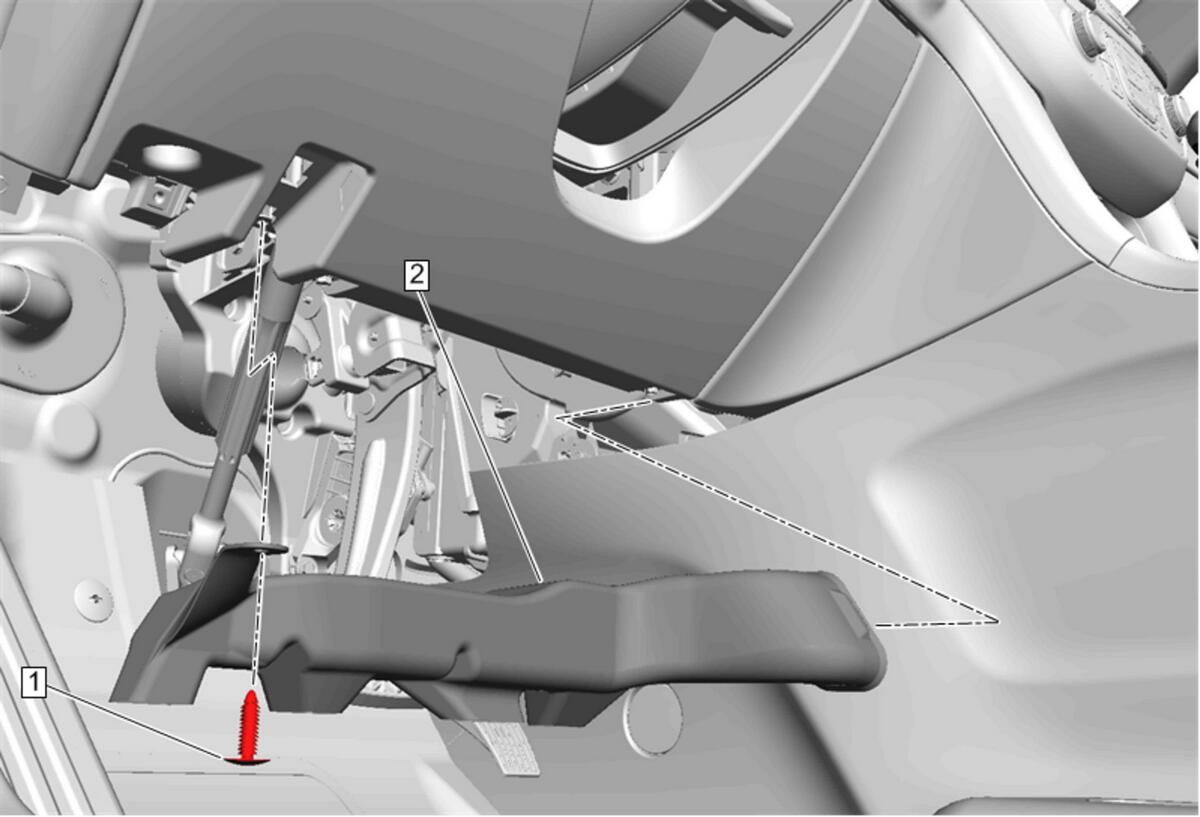

  14. GM4593214Courtesy of GENERAL MOTORS COMPANY

    Floor Front Air Outlet Duct - Left Side(2) - Install - Floor Front Air Outlet Duct Replacement - Left Side

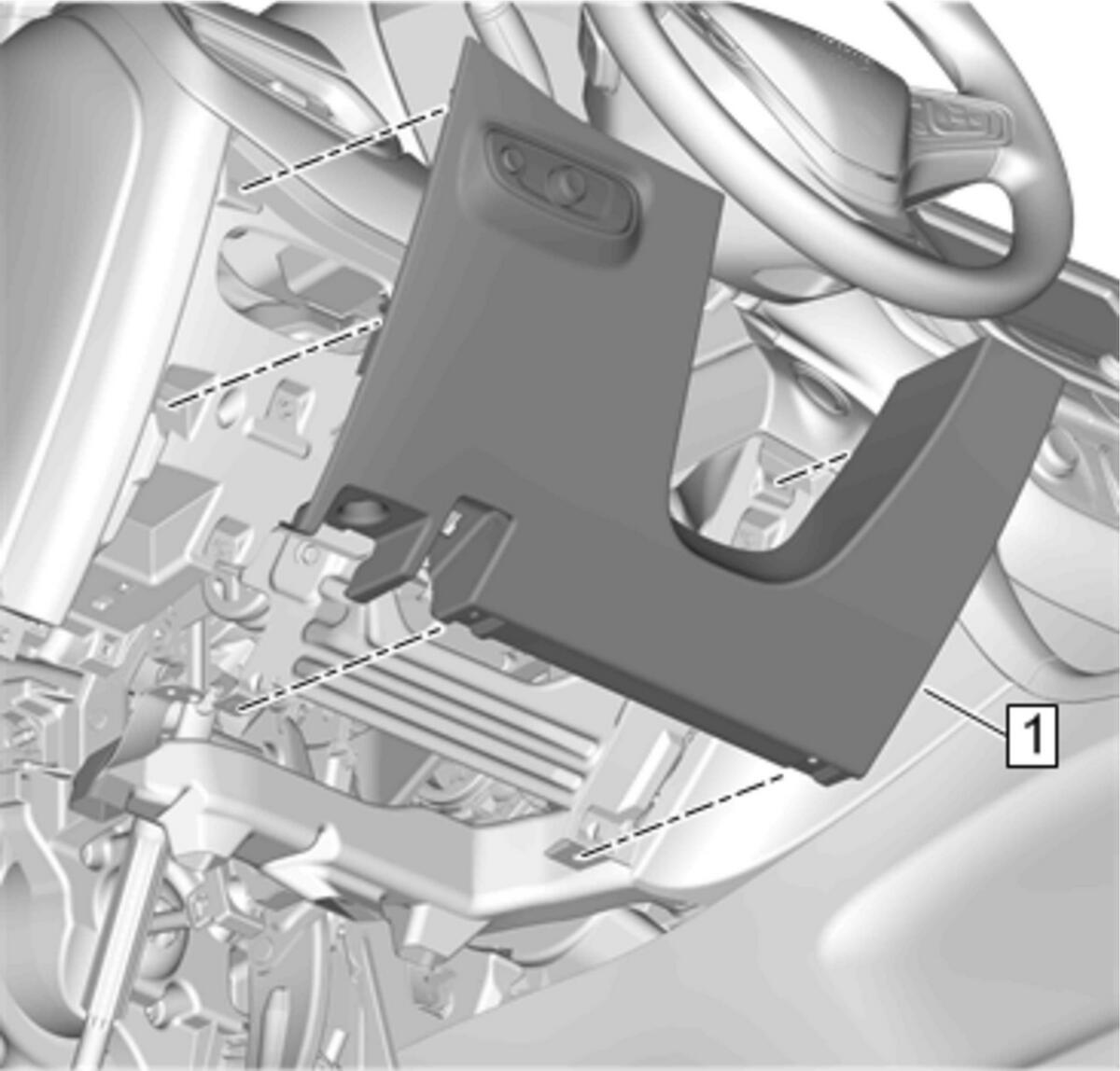

  15. GM4583374Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Knee Bolster (1) - Install - Instrument Panel Knee Bolster Replacement (Equinox) , or Instrument Panel Knee Bolster Replacement (Terrain)

  16. Unlock the steering column.

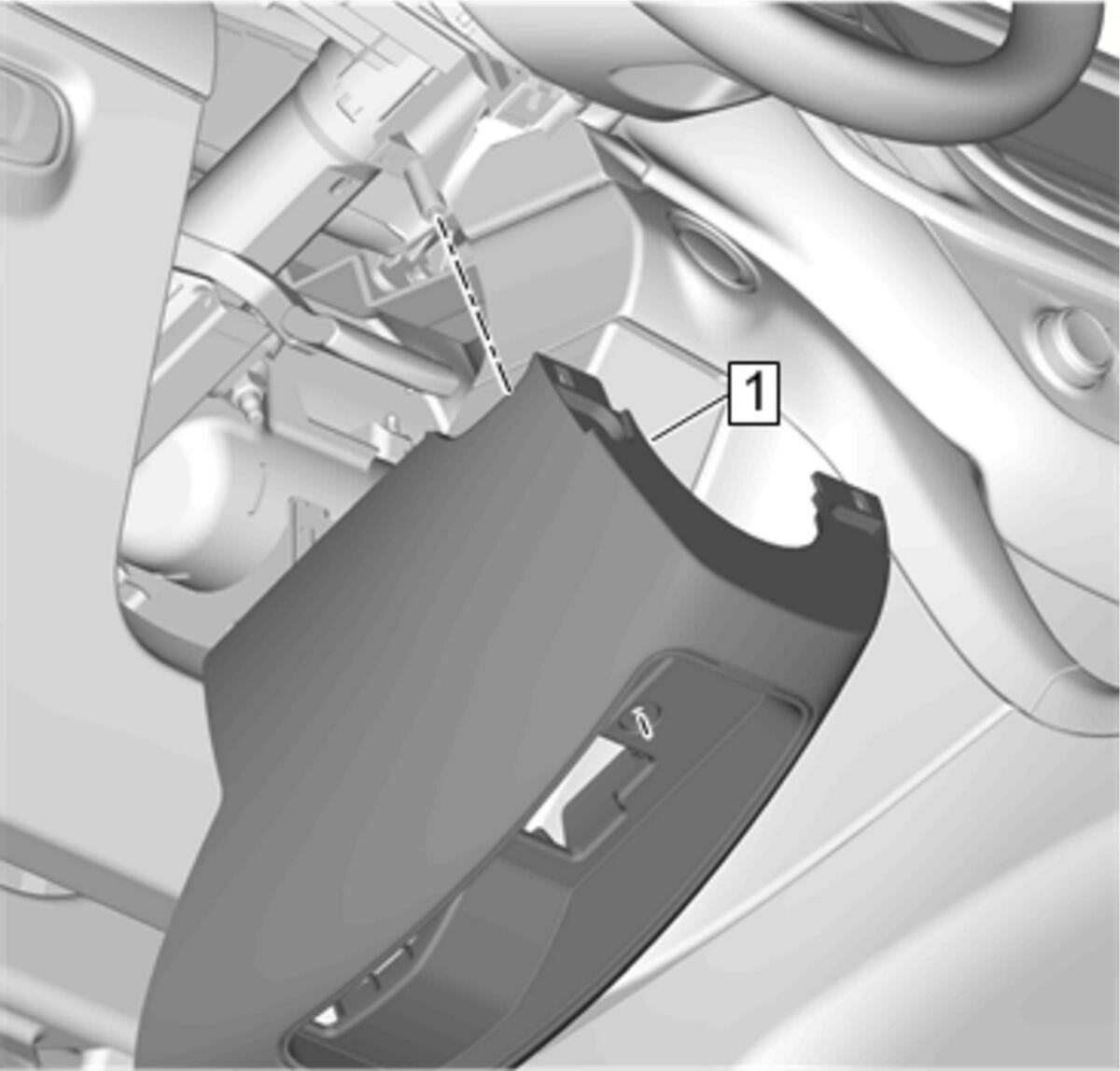

  17. GM4583373Courtesy of GENERAL MOTORS COMPANY

    Steering Column Lower Trim Cover (1) - Install - Steering Column Lower Trim Cover Replacement (Equinox) , or Steering Column Lower Trim Cover Replacement (Terrain)

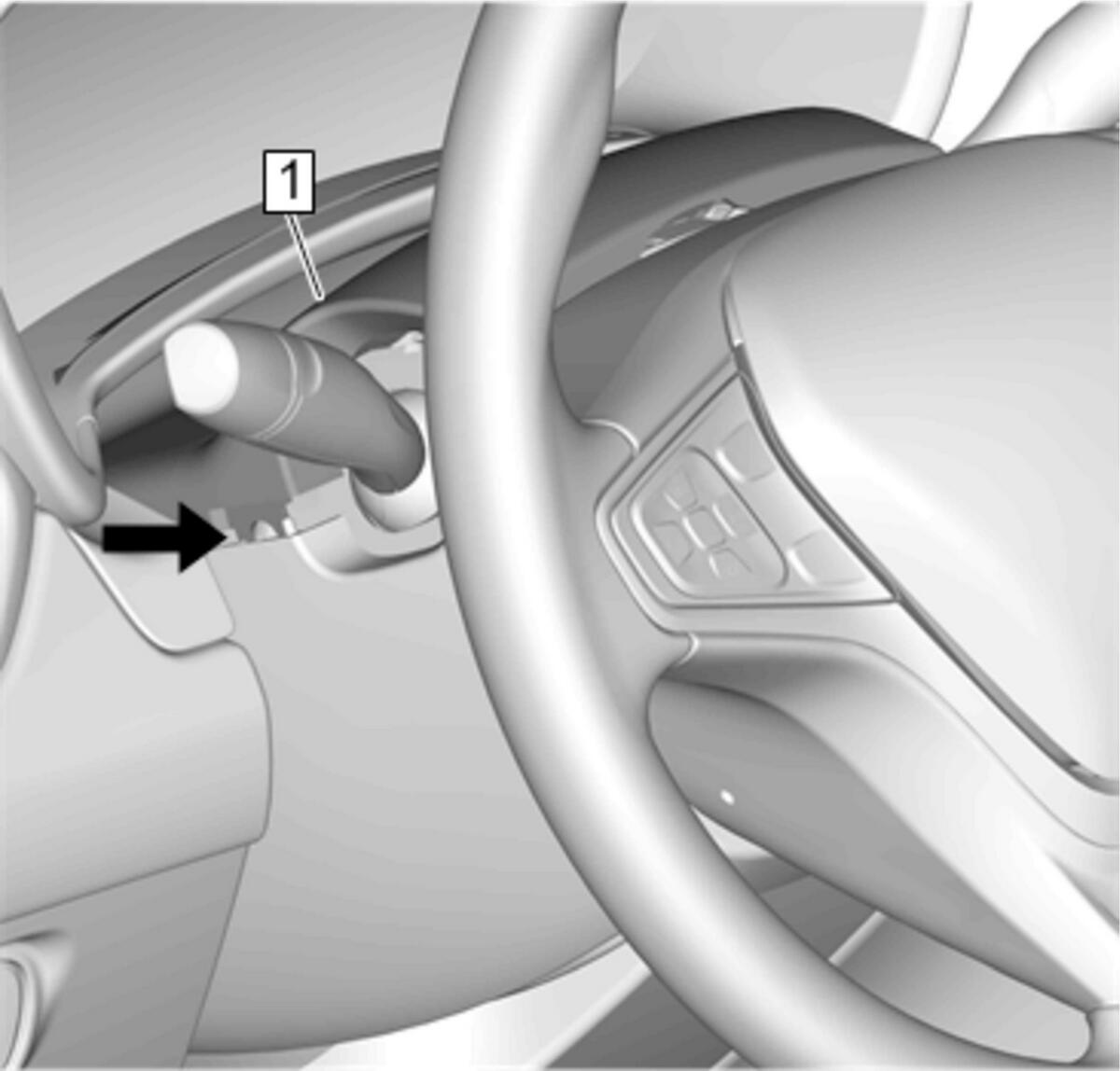

  18. GM4581185Courtesy of GENERAL MOTORS COMPANY

    Secure the steering column upper trim (1) to the steering column lower trim cover.

  19. Center the steering angle sensor. Steering Wheel Angle Sensor Centering
  20. Clear the DTCs from the heater and air conditioning remote control module.
  21. Perform the actuator calibration procedure. Actuator Recalibration
