Installation Procedure
WARNING: This page is about a different car, the 2021 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

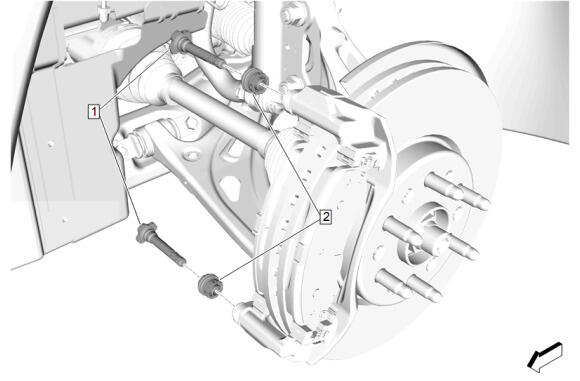

Front Brake Caliper Guide Pin Boot (2) - Install [ 2x ]
- Front Brake Caliper Guide Pin (1) - Install [ 2x ]

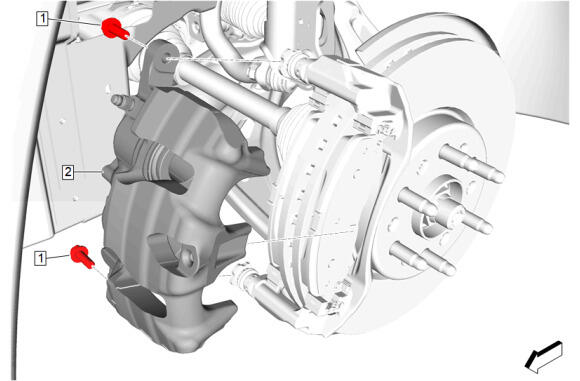

Front Brake Caliper (2) - Install
- Front Brake Caliper Guide Pin Bolt (1) - Install [ 2x ] - Front Brake Caliper Replacement
- Install the tire and wheel assembly. Tire and Wheel Removal and Installation
- Remove the supports and lower the vehicle.
- Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
NOTE:
Refer to the procedure link for torque specification.
