Installation Procedure

WARNING: This page is about a different car, the 2021 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

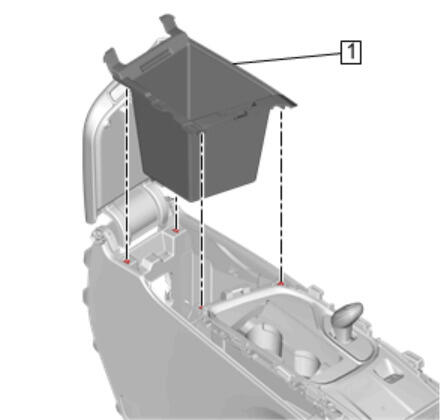

Front Floor Console Compartment (1) - Install
Connect the electrical connectors.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

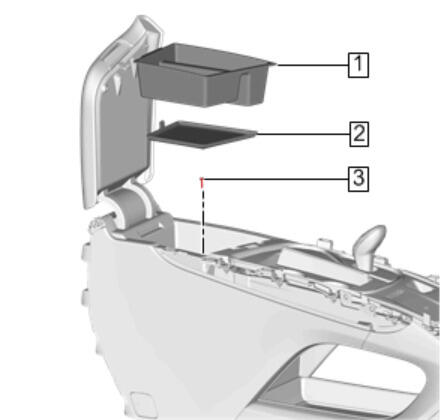

Front Floor Console Bolt (3) - Install and tighten 2.5 N.m (22 lb/in)
Front Floor Console Center Compartment Liner (2) - Install
Front Floor Console Armrest Stowage Tray (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Rear Trim Panel (1) - Install - Front Floor Console Rear Trim Panel Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Applique - Right Side (1) - Install - Front Floor Console Applique Replacement - Right Side
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Applique - Left Side (1) - Install - Front Floor Console Applique Replacement - Left Side
