Aiming Procedure
WARNING: This page is about a different car, the 2021 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
Park the vehicle 7.6 m (25 ft) away from the target screen (a).
- Measure the distance from the center of the fog lamp to the ground line (b).
- Using this measurement, mark the horizontal centerline (1) of the fog lamp on the target screen directly in front of the vehicle.
- Turn ON the fog lamps.
- The top of the fog lamp beam image (2) on the target screen should be 102 mm (4 in) below the center of the fog lamp lens height (1).
- Remove the front half of the wheel well liner to access the back of the fog lamp assembly.

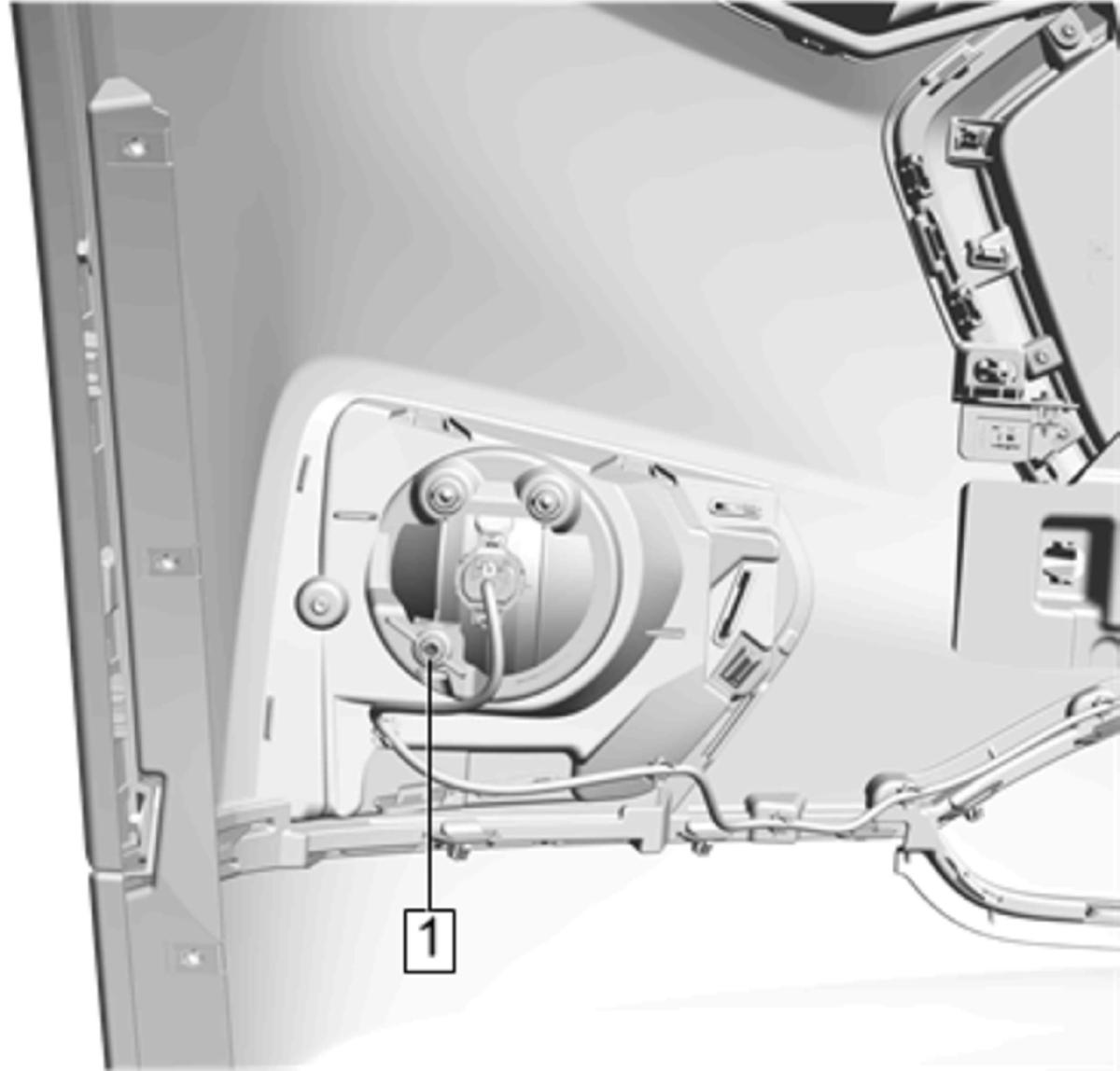

Adjust the fog lamp as required using the adjusting screw (1) below the projector lens on the back of the fog lamp assembly.
- After the adjustments are made, turn OFF the fog lamps.
