Front Fog Lamp Replacement

WARNING: This page is about a different car, the 2021 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

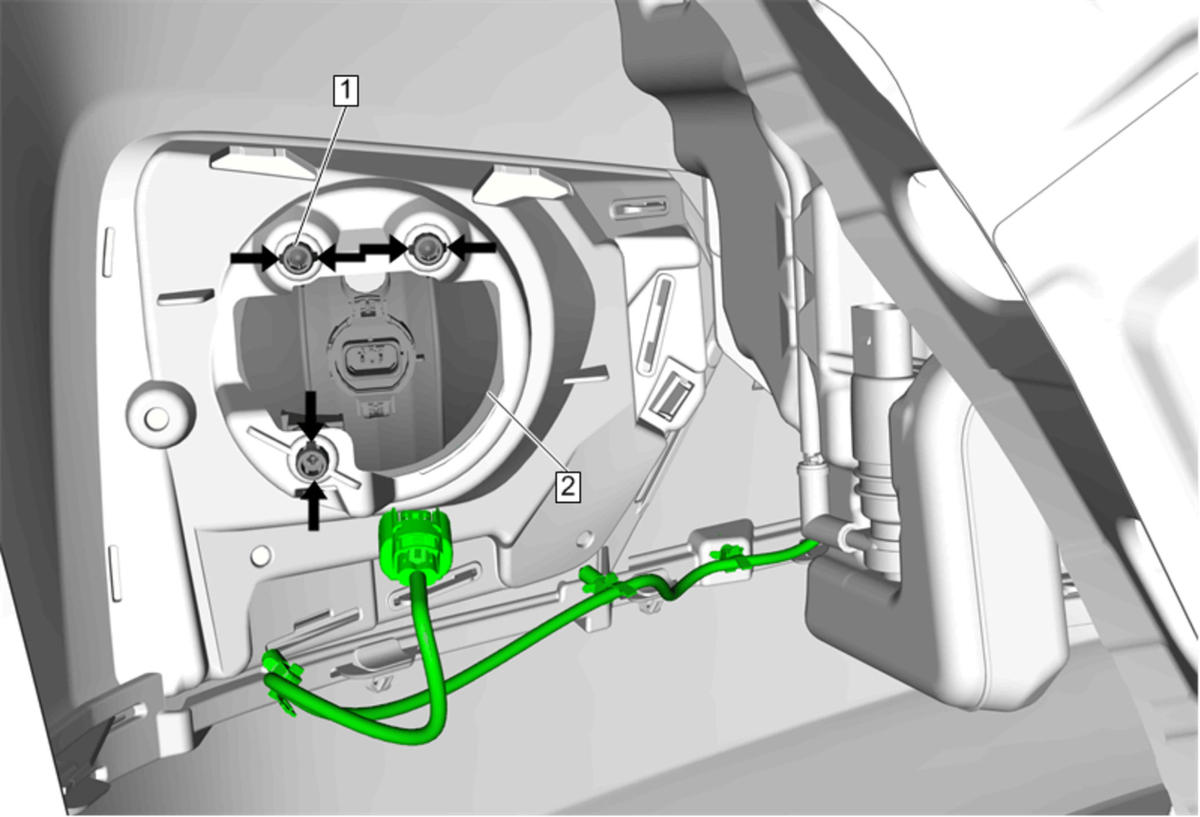

Callout	Component Name
Preliminary Procedure Front Fog Lamp Bezel Replacement
1	Front Fog Lamp Retainer [ 3x ] Procedure Using an appropriate tool release the retainers [ 6x ]
2	Front Fog Lamp Procedure Disconnect the electrical connector. Transfer components as necessary. Front Fog Lamp - Adjust - Front Fog Lamp Aiming

Callout

Component Name

Preliminary Procedure
Front Fog Lamp Bezel Replacement

Front Fog Lamp Retainer [ 3x ]
Procedure
Using an appropriate tool release the retainers [ 6x ]

Front Fog Lamp

Procedure

Disconnect the electrical connector.
Transfer components as necessary.
Front Fog Lamp - Adjust - Front Fog Lamp Aiming
