Section 25 (Remote Functions)
›
Schematic Wiring Diagrams
›
Remote Function Schematics
›
Keyless Entry - Passive and Keyless Start

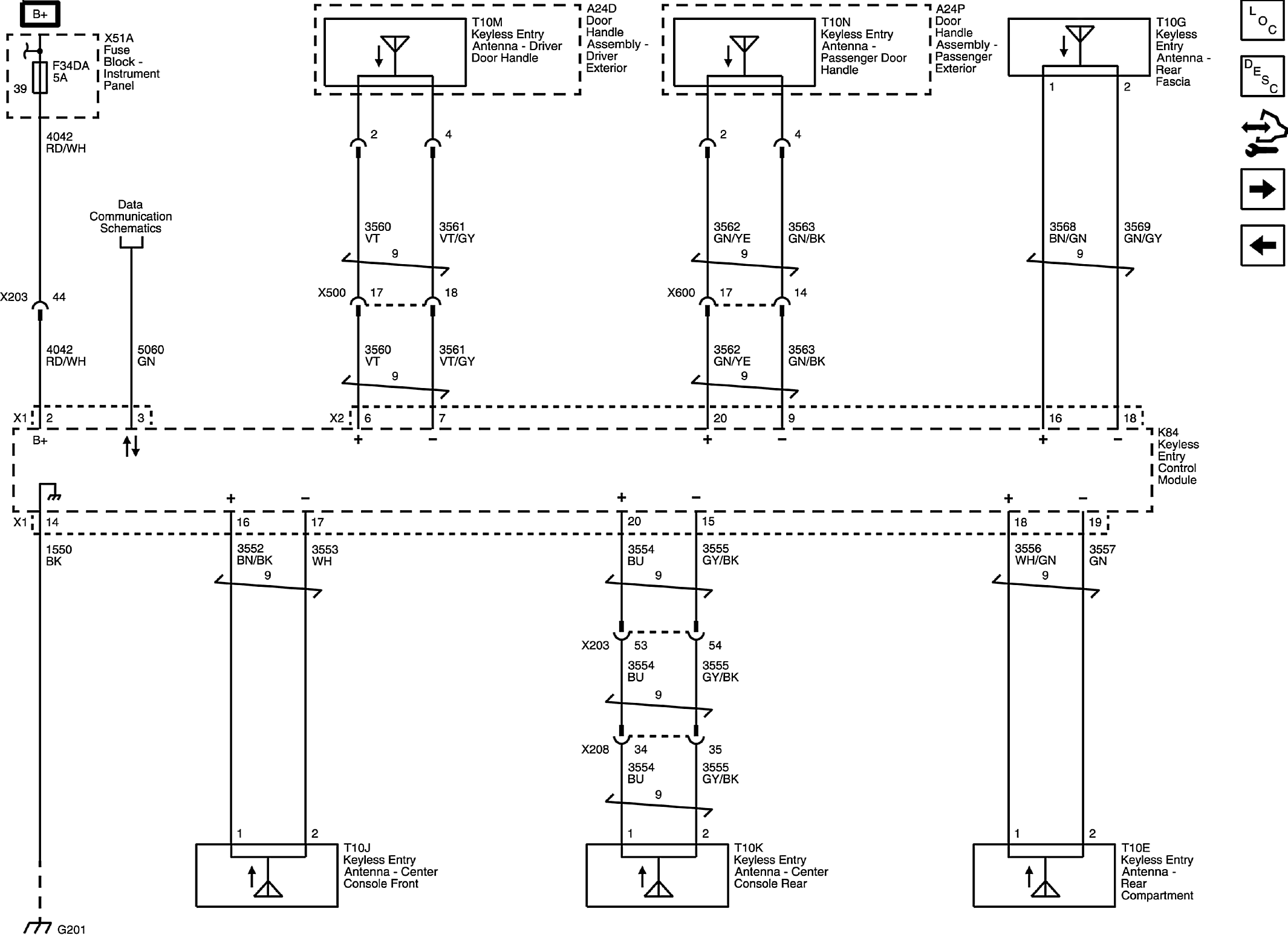

Keyless Entry - Passive and Keyless Start
WARNING:
This page is about a different car, the 2020 GMC Terrain and 2020 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY
