Installation Procedure

WARNING: This page is about a different car, the 2020 GMC Terrain and 2020 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

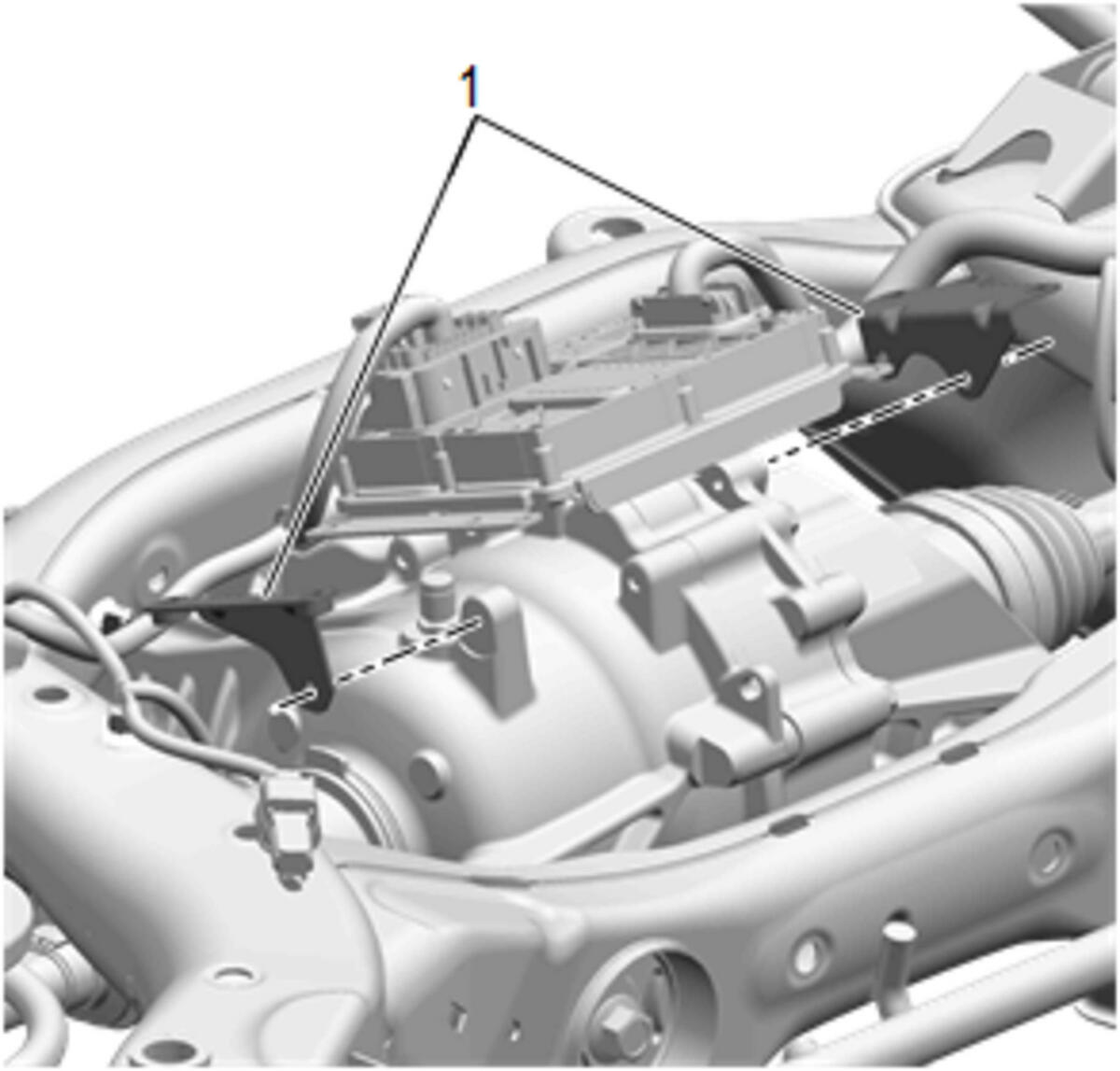

Position the clutch control module (1) onto the rear axle.
Courtesy of GENERAL MOTORS COMPANY

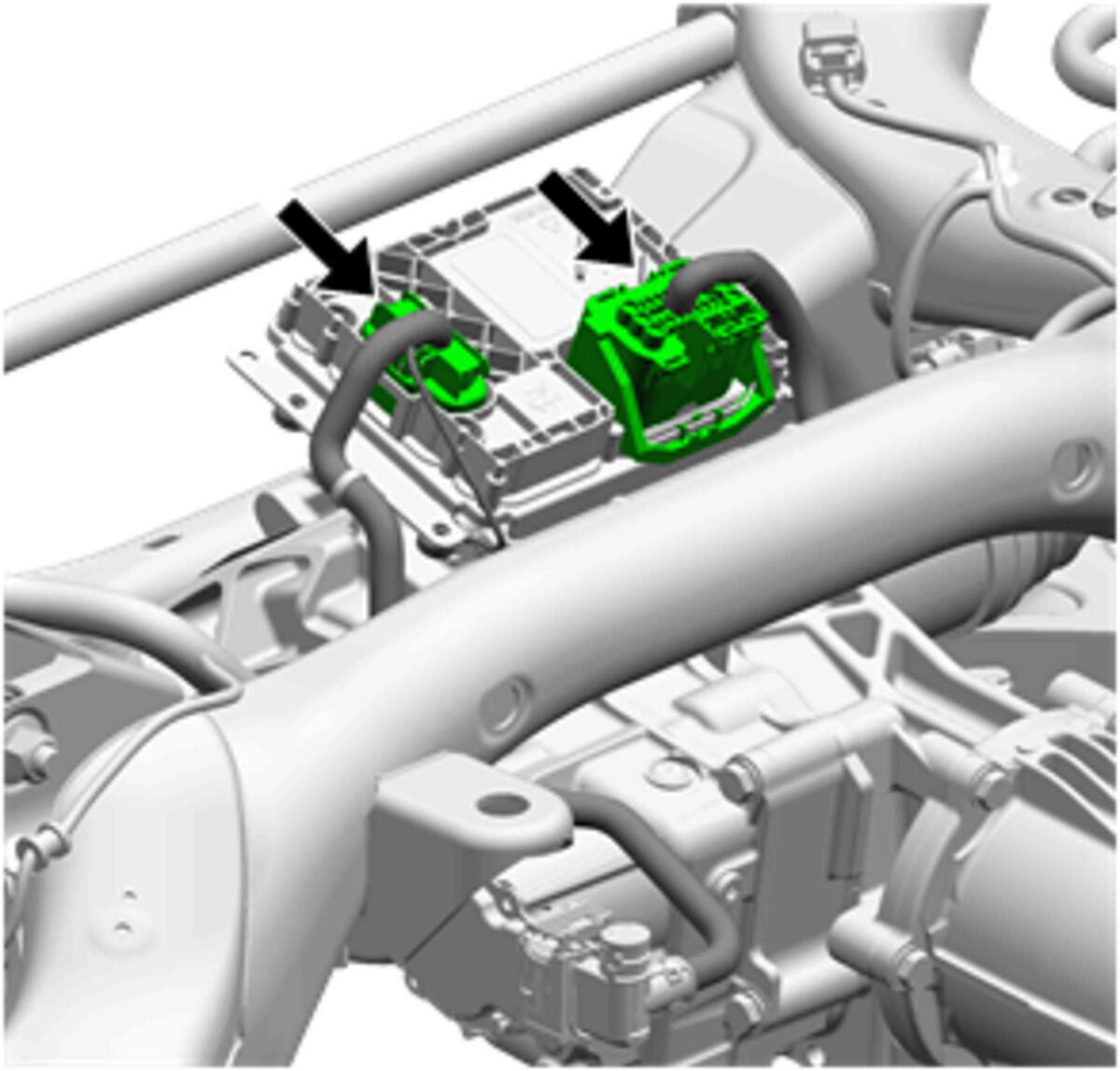

Reconnect the electrical connectors to the clutch control module.
Courtesy of GENERAL MOTORS COMPANY

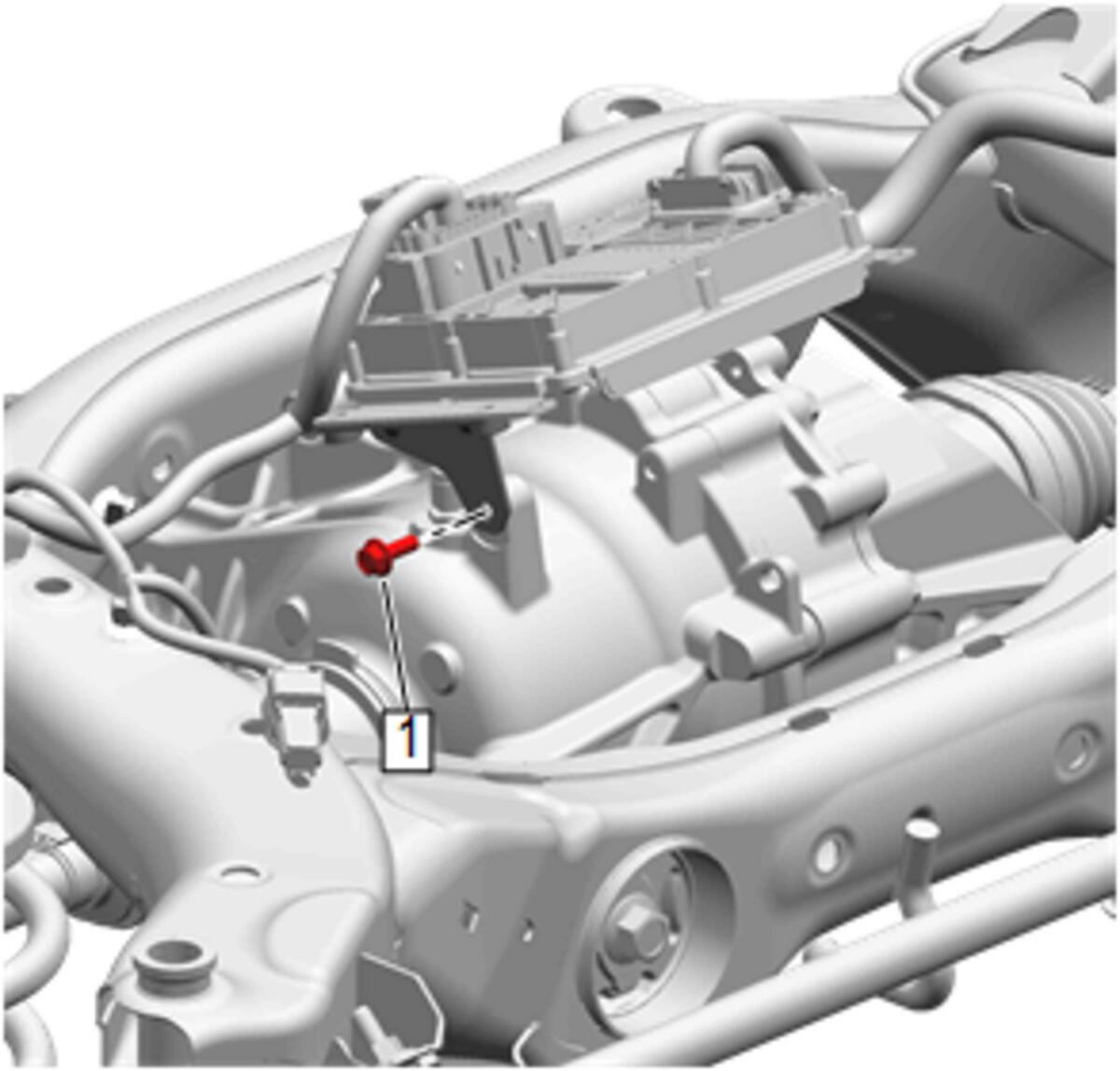

Install the control module brackets (1).
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

NOTE:
Apply Loctite before installing bolts.

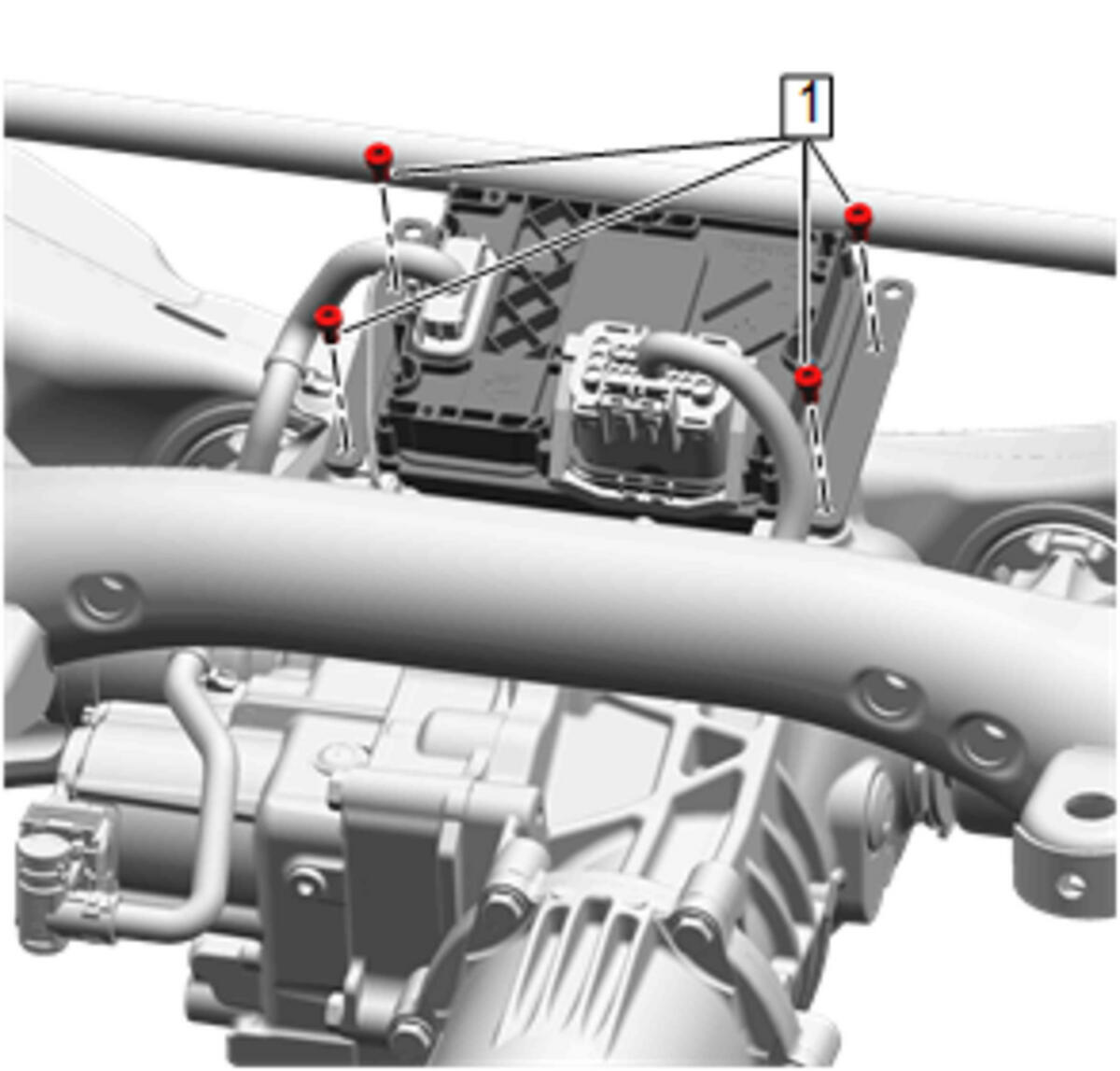

Install the clutch control module bolts (1). Tighten to 10 N.m (89 lb in).
Courtesy of GENERAL MOTORS COMPANY

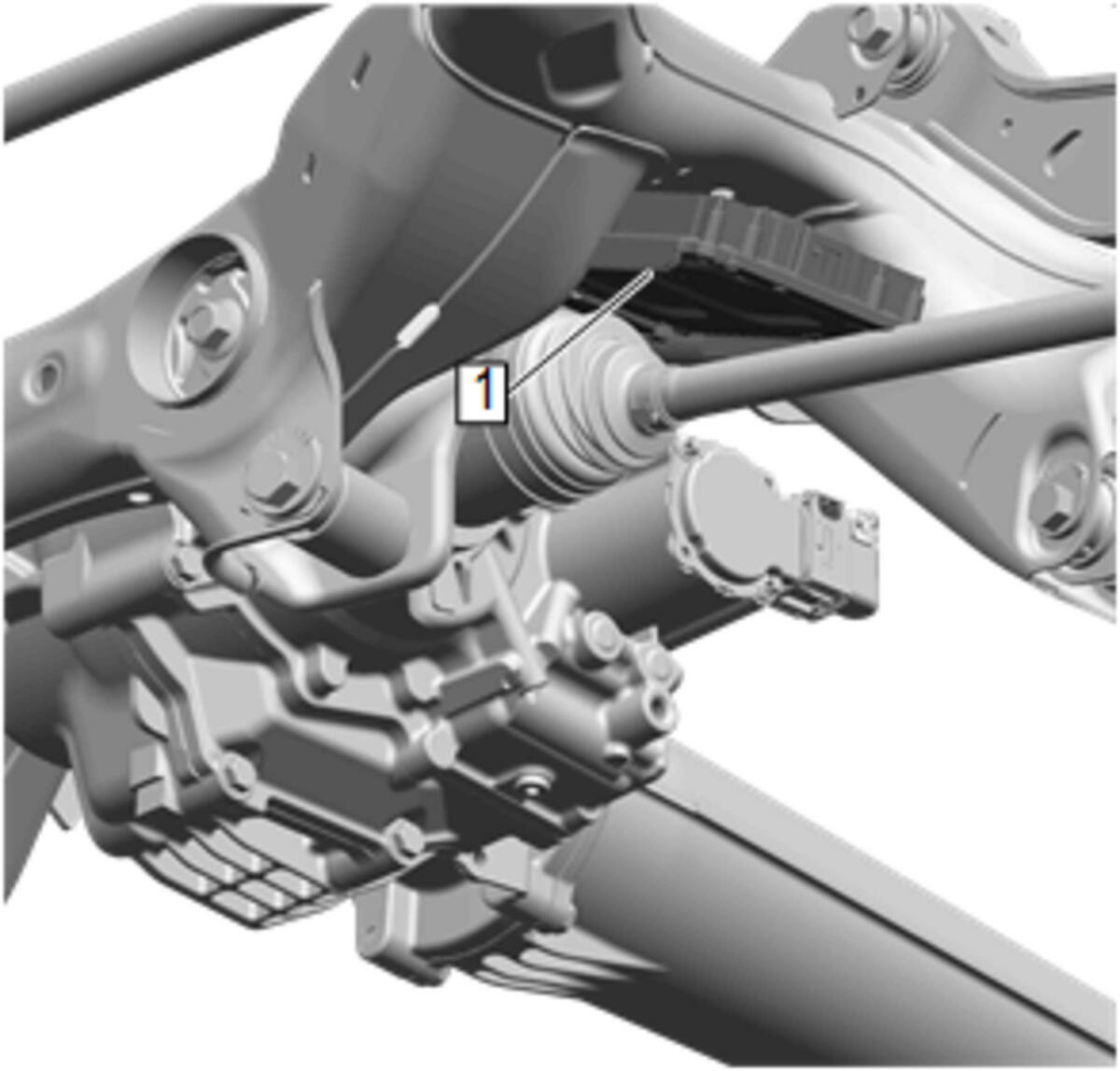

Install the control module bracket bolts (1). Tighten to 10 N.m (89 lb in).
Courtesy of GENERAL MOTORS COMPANY

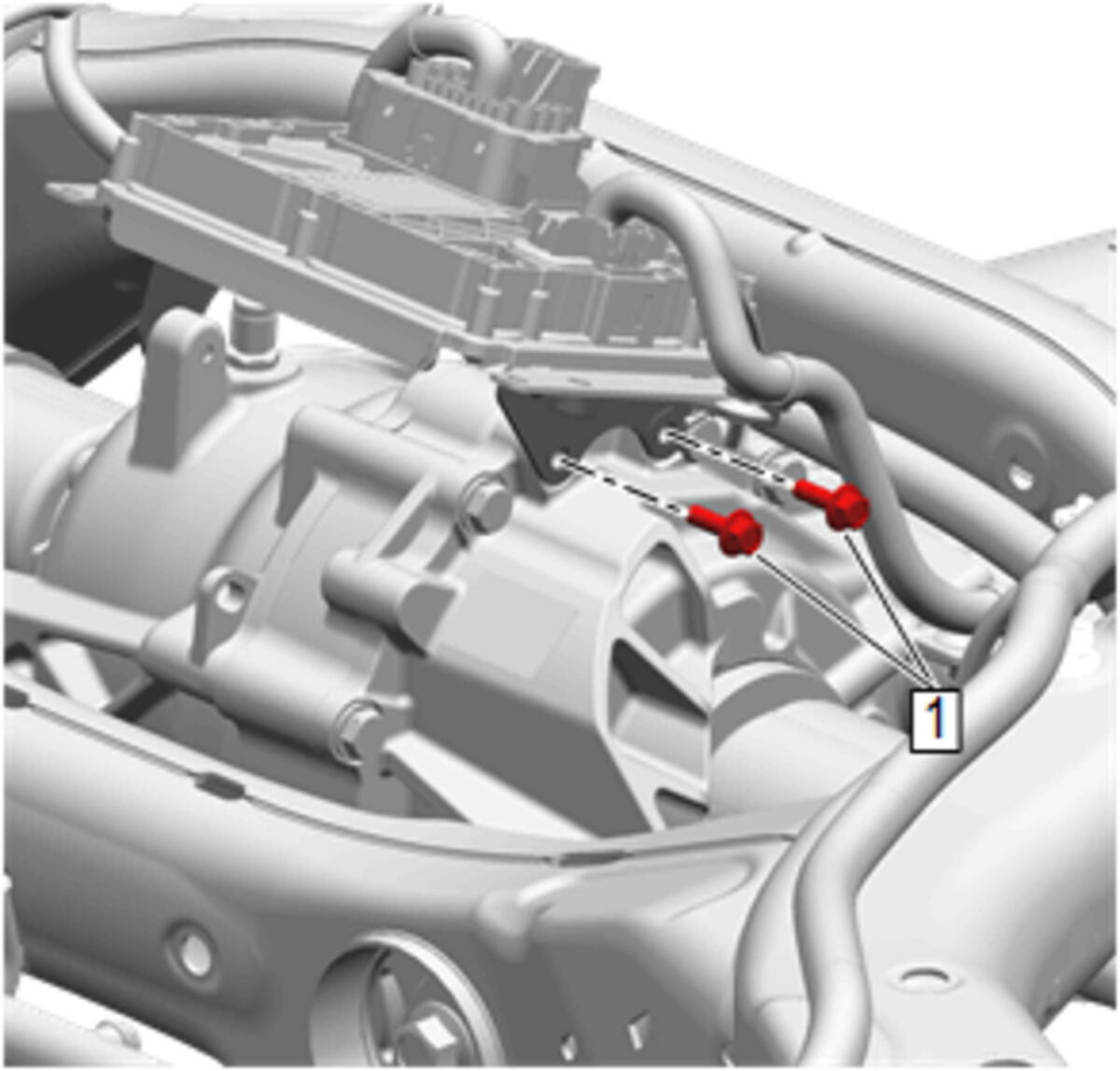

Install the control module bracket bolt (1). Tighten to 10 N.m (89 lb in).
Remove the support and lower the vehicle.
Reprogram the K47 Rear Differential Clutch Control Module. Control Module References
