Installation Procedure

WARNING: This page is about a different car, the 2020 GMC Terrain and 2020 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

Connect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

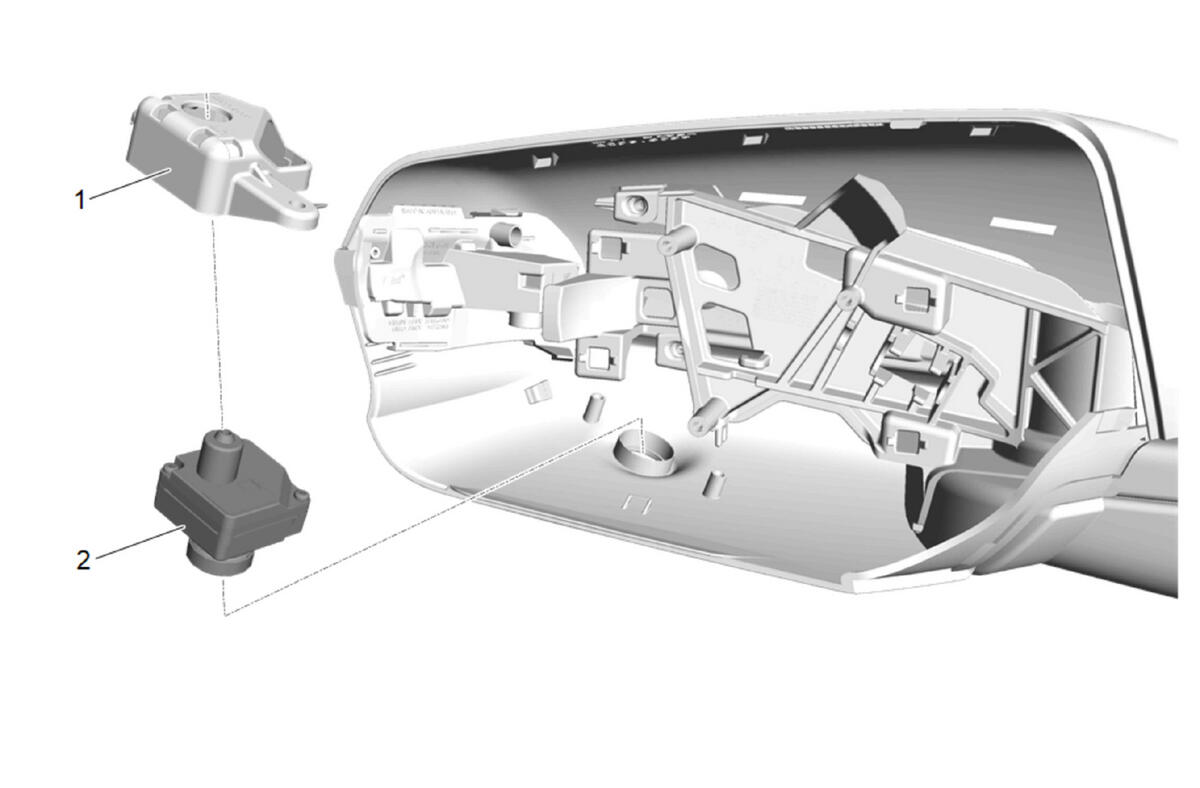

Side View Driver Information Camera(2) - Install
Side View Driver Information Camera Bracket (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

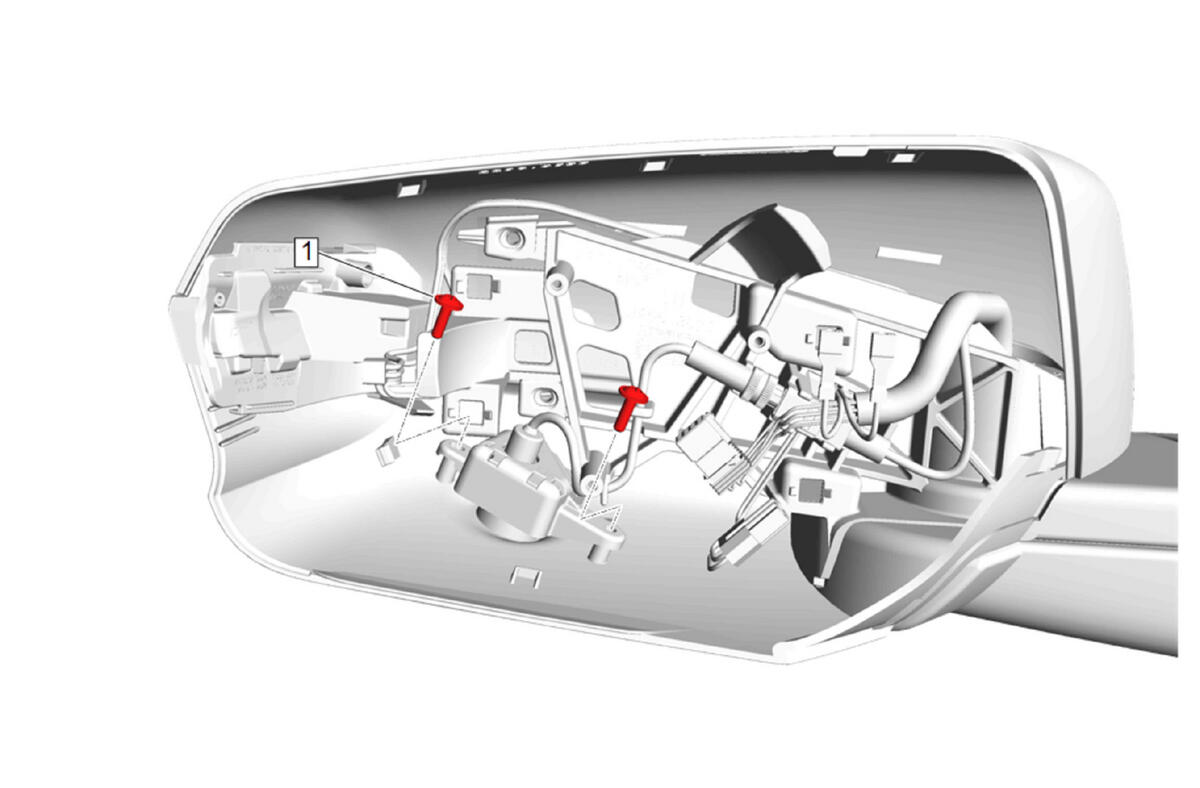

Side View Driver Information Camera Bracket Bolt (1) - Install and tighten [2x] 0.5 N.m (4 lb in)
Courtesy of GENERAL MOTORS COMPANY

Push the outside rearview mirror housing bezel (1) into the retaining clips until seated.
Courtesy of GENERAL MOTORS COMPANY

Outside Rearview Mirror Inner Actuator(2) - Install - Outside Rearview Mirror Actuator Replacement
Connect the electrical connectors.
Courtesy of GENERAL MOTORS COMPANY

Outside Rearview Mirror Glass (1) - Install - Outside Rearview Mirror Glass Replacement

NOTE:
Inspect the outside rearview mirror for proper operation.
Perform the necessary calibration and setup procedure: Video Processing Control Module Calibration
