Rear Seat Belt Retractor Replacement

Courtesy of GENERAL MOTORS COMPANY

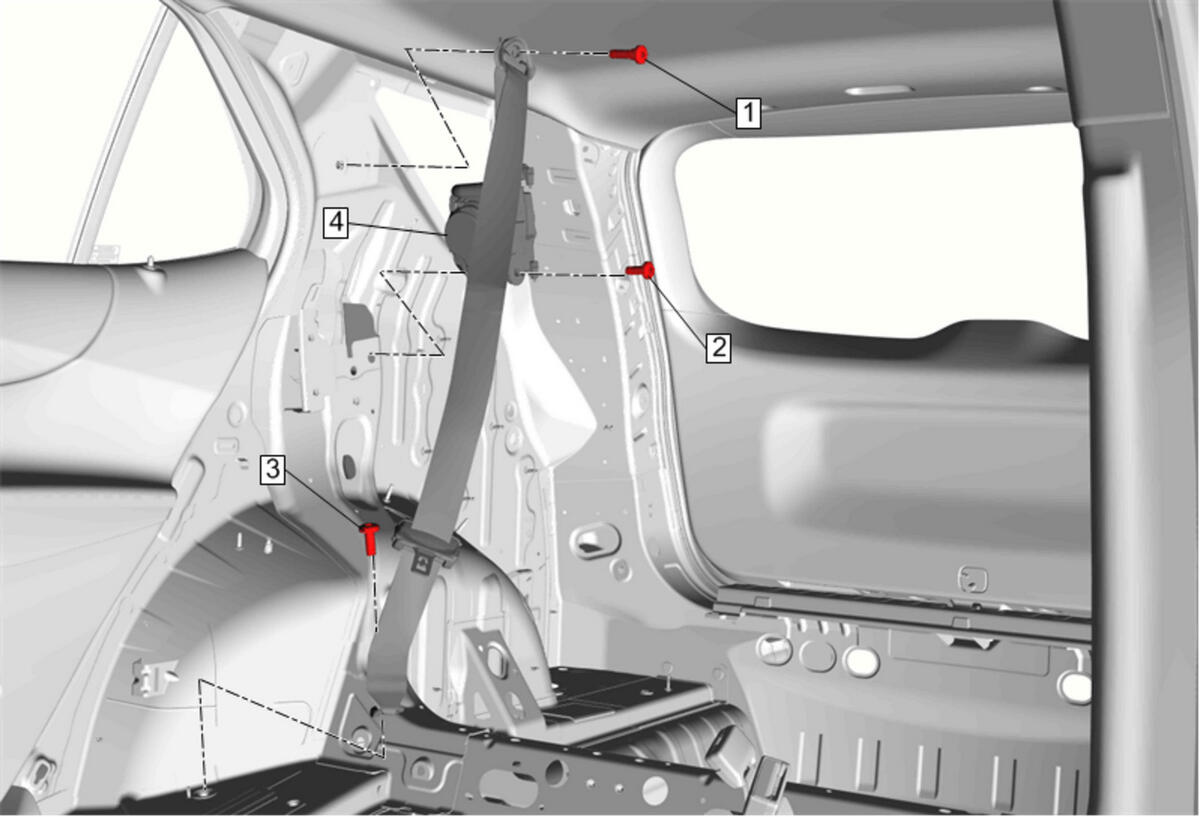

Callout	Component Name
Preliminary Procedures Quarter Window Trim Finish Panel Replacement Remove the front bolts and fold the seat up. Rear Seat Removal and Installation
1	Rear Seat Belt Upper Guide Bolt CAUTION: Refer to Fastener Caution . Tighten 45 N.m (33 lb-ft)
2	Rear Seat Belt Retractor Bolt Tighten 45 N.m (33 lb-ft)
3	Rear Seat Belt Anchor Bolt Tighten 45 N.m (33 lb-ft)
4	Rear Seat Belt Retractor
