Forward Range Radar Bracket Replacement
WARNING: This page is about a different car, the 2021 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

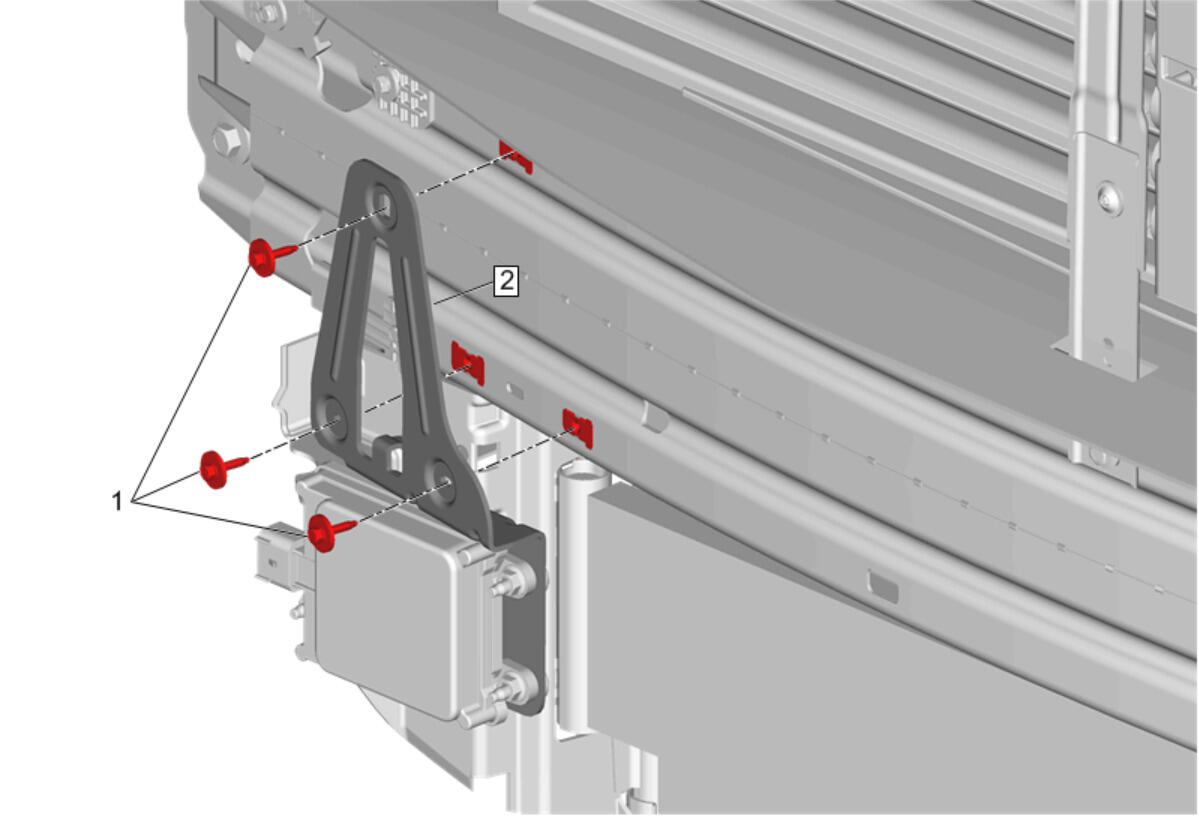

| Callout | Component Name |
|---|---|
| Preliminary Procedure Front Bumper Fascia Replacement |
|
| 1 | Forward Range Radar Bracket Bolt [ 3x ]
CAUTION:
Tighten 2.5 N.m (22 lb/in) |
| 2 | Forward Range Radar Bracket Procedure
|
