Installation Procedure

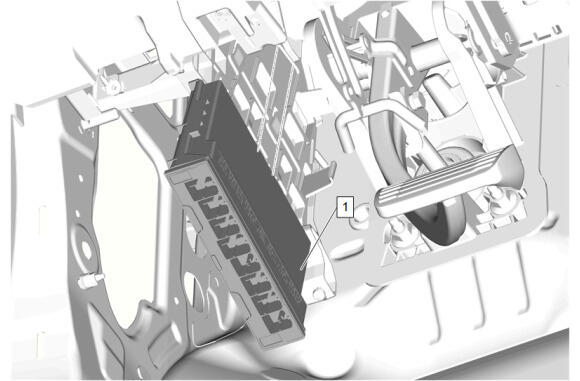

  1. GM5568788Courtesy of GENERAL MOTORS COMPANY

    Body Control Module (1) - Install

  2. Secure the retaining tabs.
  3. Connect the electrical connectors.
  4. GM5515685Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Trim Panel Insulator (1) - Install

  5. GM5515684Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Insulator Retainer (1) - Install [ 2x ]

  6. Perform the necessary programming and setup procedure: Control Module References
