Installation Procedure

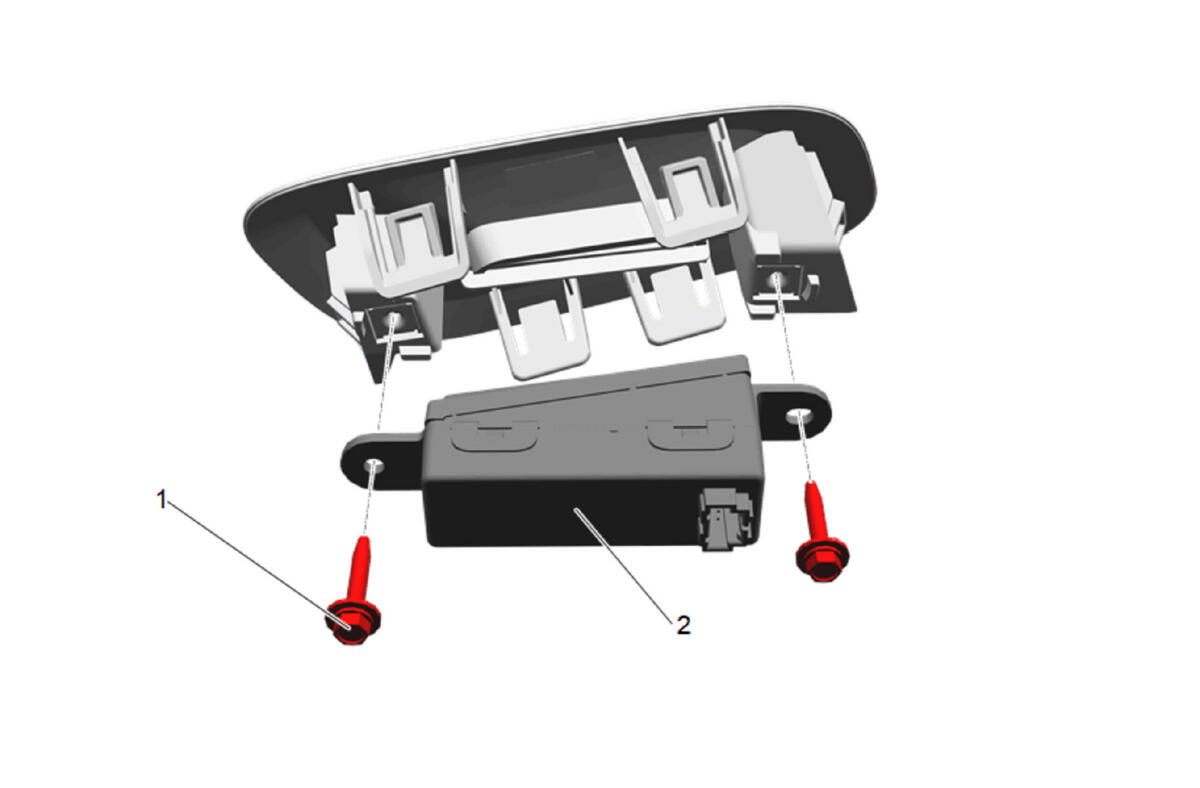

  1. GM5606175Courtesy of GENERAL MOTORS COMPANY

    Forward Collision Alert Display (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Forward Collision Alert Display Bolt (1) - Install and tighten [ 2x ] - Fastener Specifications

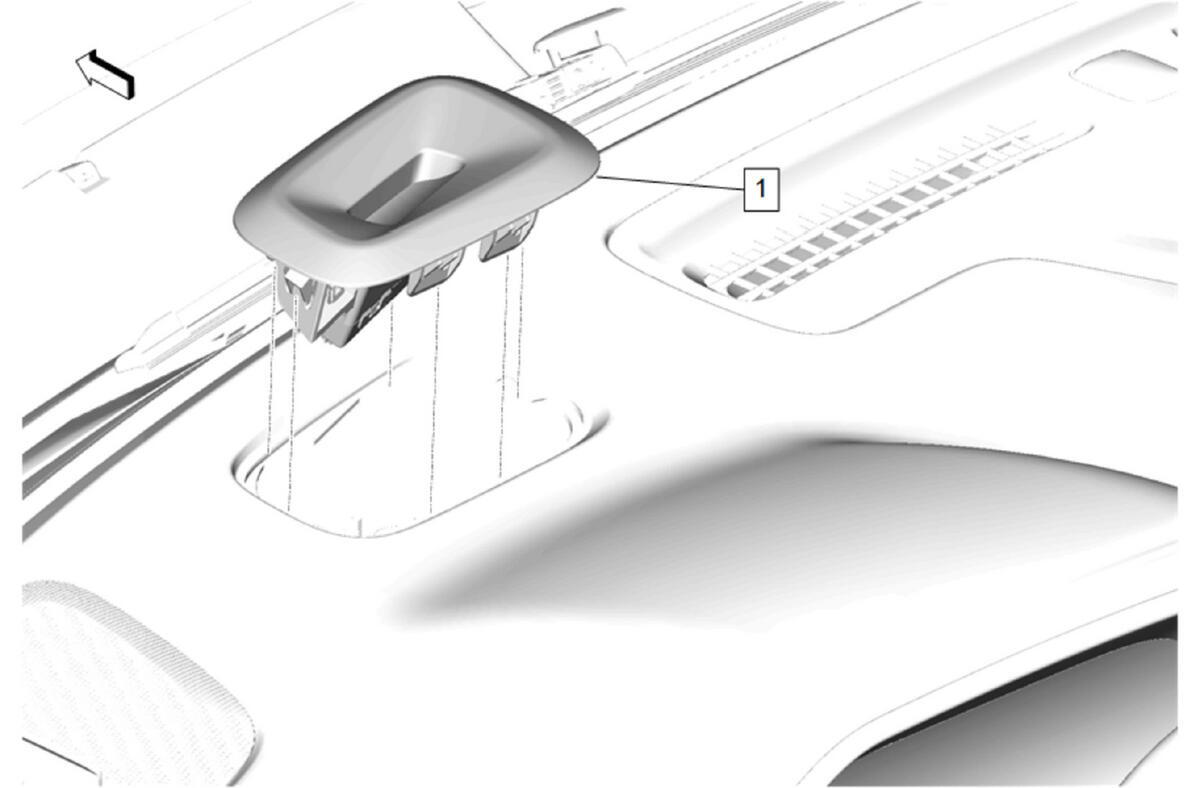

  3. GM5550591Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  4. Forward Collision Alert Display Bezel (1) - Install
