Installation Procedure

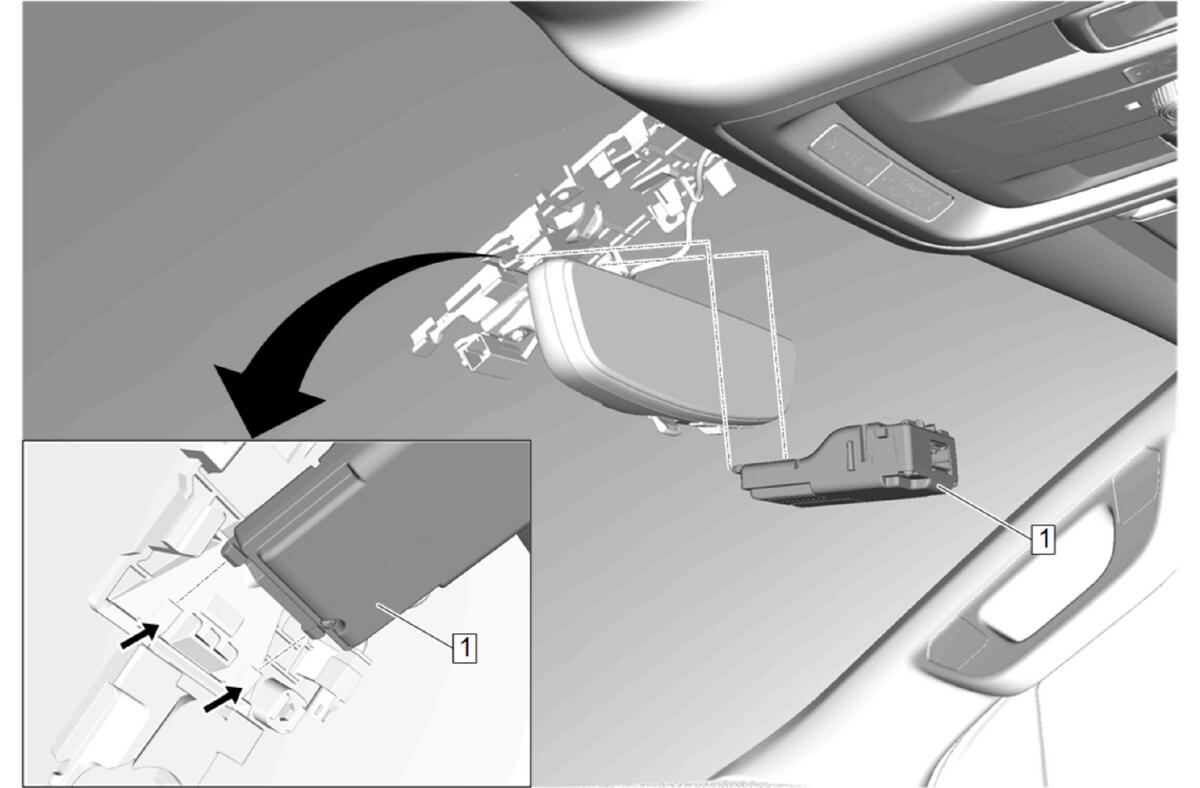

  1. GM5582519Courtesy of GENERAL MOTORS COMPANY

    Front View Camera (1) - Install

  2. Slide the front view camera (1) forward to engage.

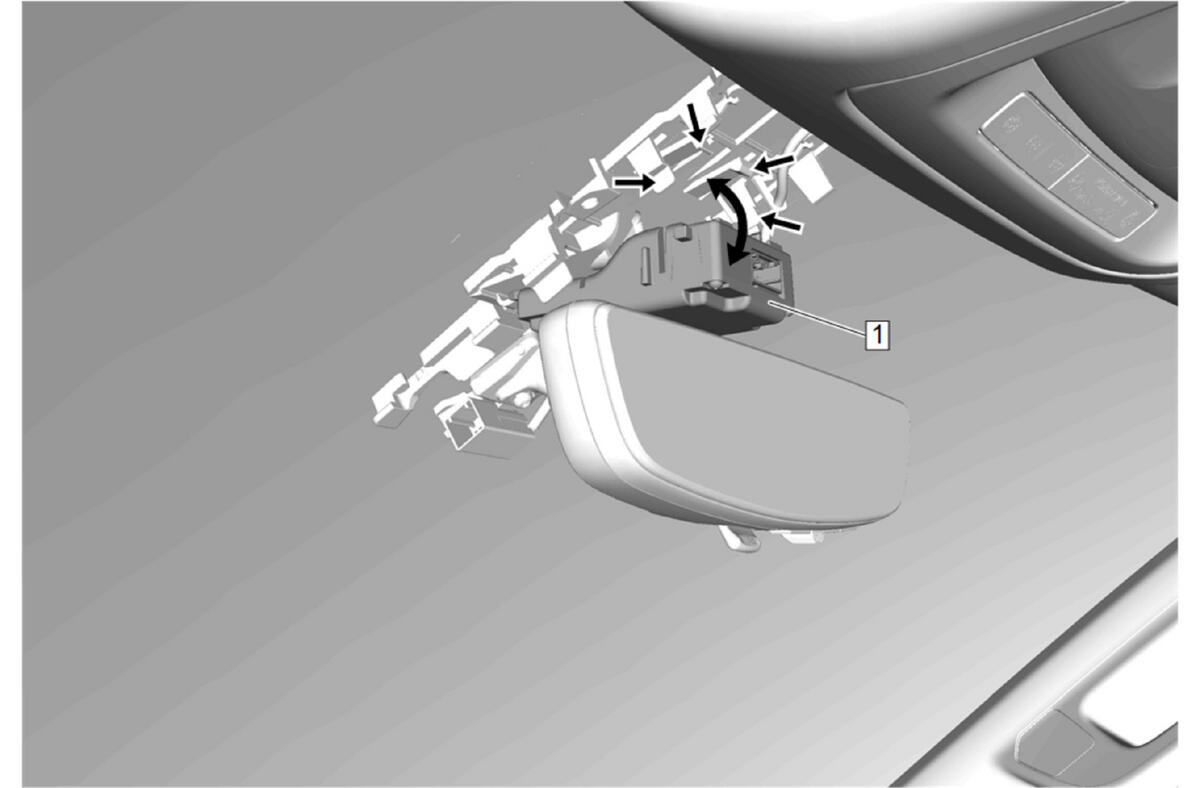

  3. GM5582518Courtesy of GENERAL MOTORS COMPANY

    Rotate the front view camera (1) upward and secure the retaining tabs.

  4. Connect the electrical connector.

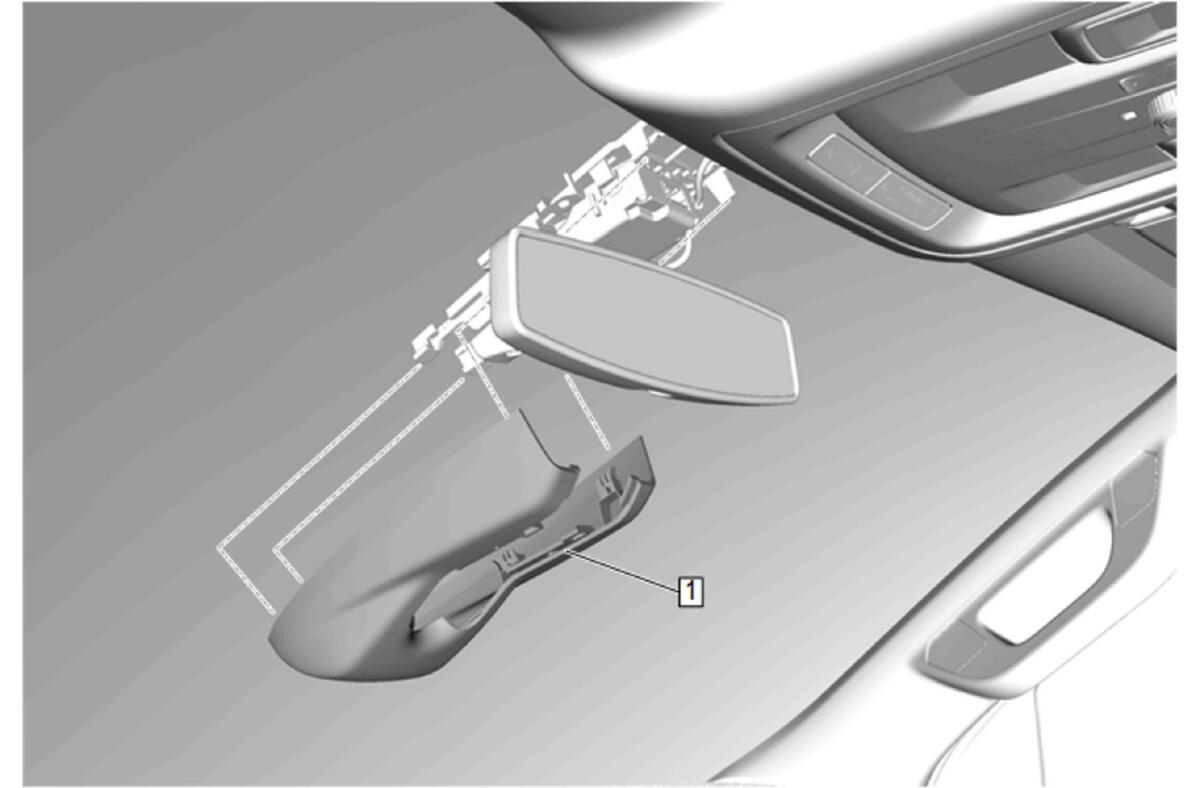

  5. GM5579676Courtesy of GENERAL MOTORS COMPANY

    Install the windshield multifunction sensor mount bracket cover (1) ensuring the retaining tabs are fully seated.

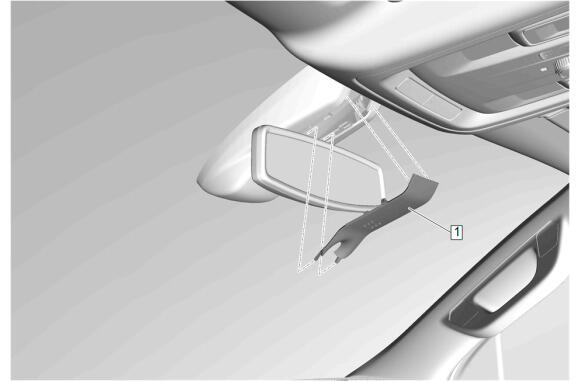

  6. GM5579675Courtesy of GENERAL MOTORS COMPANY

    Windshield Multifunction Sensor Mount Bracket Cover Insert (1) - Install

  7. Apply pressure upward on the windshield multifunction sensor mount bracket cover insert (1) to engage the retaining tabs.
  8. Perform the camera calibration procedure. Front View Camera - Windshield Learn
