Installation Procedure

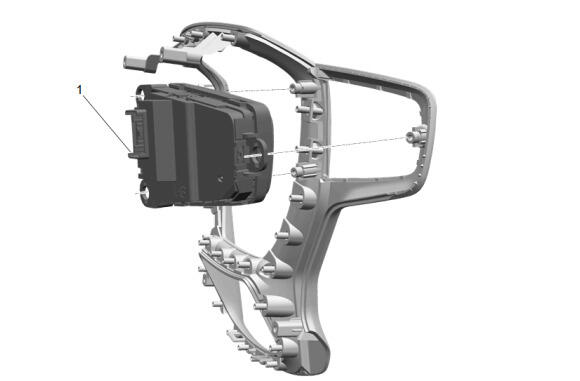

  1. GM5539732Courtesy of GENERAL MOTORS COMPANY

    Cruise Control Switch (1) - Install

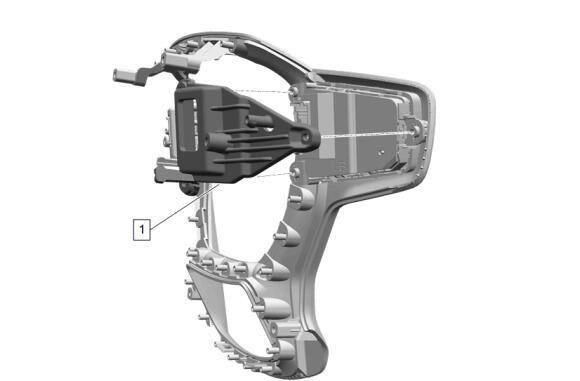

  2. GM5539731Courtesy of GENERAL MOTORS COMPANY

    Cruise Control Release Switch Bracket (1) - Install

  3. GM5539730Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Steering Wheel Bolt (1) @ Cruise Control Switch - Install and tighten [ 3x ] - Fastener Specifications

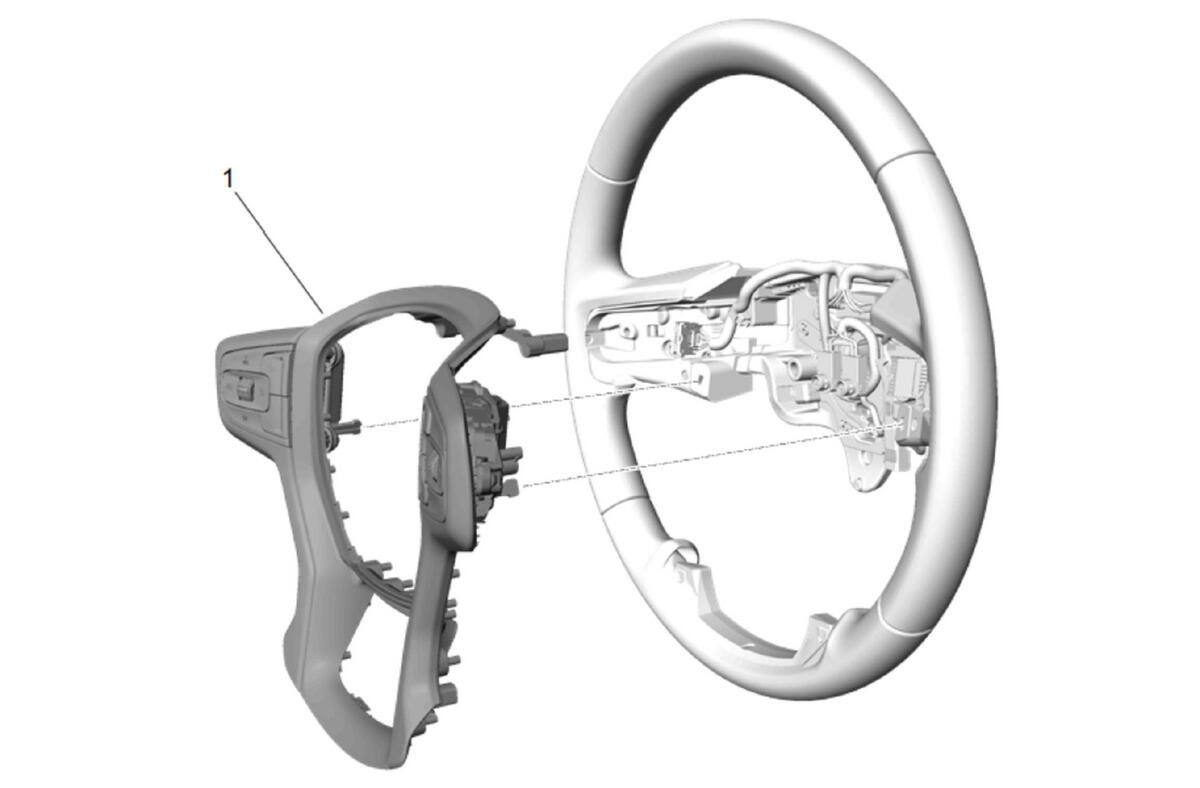

  4. GM5539627Courtesy of GENERAL MOTORS COMPANY

    Steering Wheel Spoke Cover (1) - Install

  5. Connect the electrical connectors.
  6. GM5539624Courtesy of GENERAL MOTORS COMPANY

    Steering Wheel Spoke Cover Bolt (1) - Install and tighten [ 2x ] - Fastener Specifications

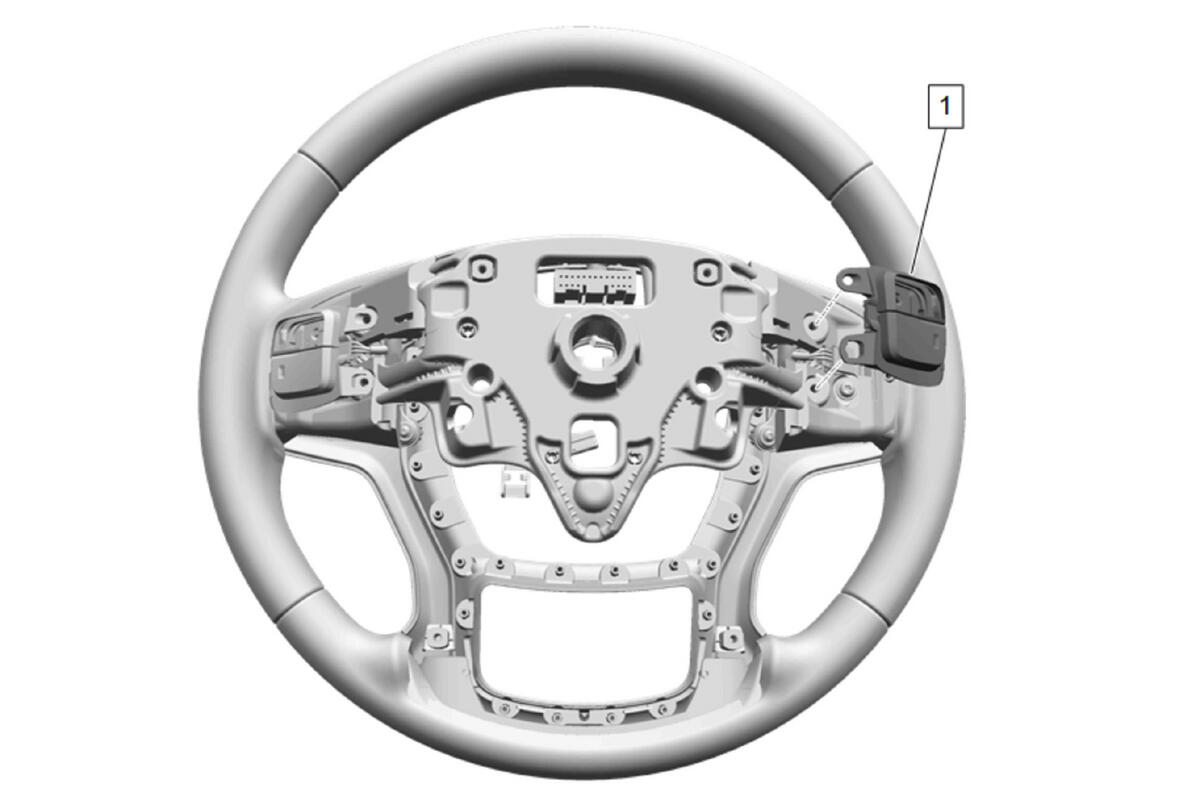

  7. GM5539306Courtesy of GENERAL MOTORS COMPANY

    Radio Favorites Switch (1) - Install

  8. Connect the electrical connector.

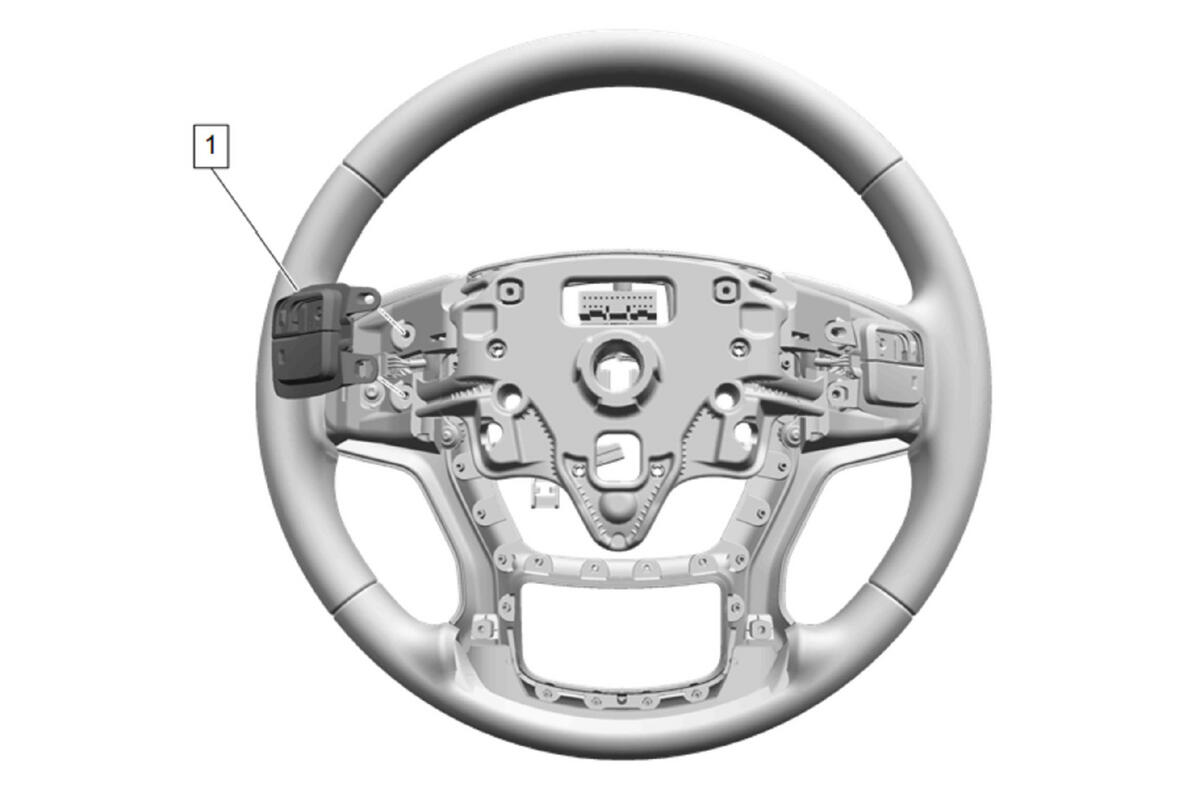

  9. GM5539281Courtesy of GENERAL MOTORS COMPANY

    Radio Volume Switch (1) - Install

  10. Connect the electrical connector.
  11. GM4994172Courtesy of GENERAL MOTORS COMPANY

    Steering Wheel Shroud (1) - Install

  12. Connect the heated steering wheel module electrical connectors, if equipped.
  13. GM4994120Courtesy of GENERAL MOTORS COMPANY

    Install and tighten the 4 steering wheel spoke cover bolts (1). Fastener Specifications

  14. Install and tighten the 4 steering wheel bolts (2). Fastener Specifications
  15. GM5525860Courtesy of GENERAL MOTORS COMPANY

    Steering Wheel (2) - Install

  16. If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps:
    1. Remove any loose cured adhesive from the external threads of the component using a lint free cloth.
    2. Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Apply thread locking adhesive to the external threads of the component. Adhesives, Fluids, Lubricants, and Sealers
    4. Ensure there are no gaps in the thread locking adhesive once applied to the component.
  17. Steering Wheel Bolt (1) - Install and tighten - Fastener Specifications
  18. GM5525856Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  19. Install any connector position assurance (CPA) devices or secondary locks.
  20. Steering Wheel Airbag (2) - Install
  21. Steering Wheel Airbag Bolt (1) - Install and tighten [ 2x ] - Fastener Specifications
  22. GM5520780Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Install the 2 steering wheel airbag access hole covers (1).

  23. Enable the SIR System. SIR Disabling and Enabling
