Installation Procedure

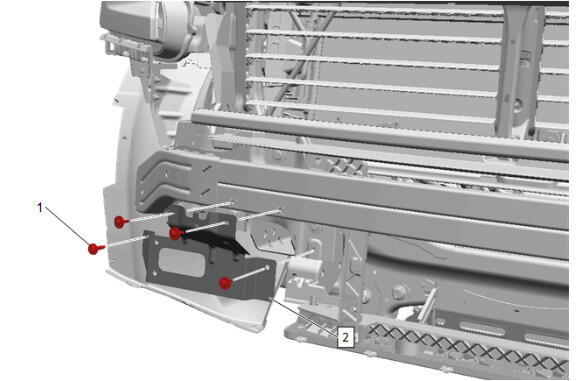

  1. GM5551290Courtesy of GENERAL MOTORS COMPANY

    Forward Range Radar Bracket (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Forward Range Radar Bracket Bolt (1) - Install [ 4x ] - Fastener Specifications
  3. GM5475535Courtesy of GENERAL MOTORS COMPANY

    Forward Range Radar Sensor (2) - Install

  4. Forward Range Radar Sensor (1) - Install and tighten [ 3x ] - Fastener Specifications
  5. Connect the electrical connector.

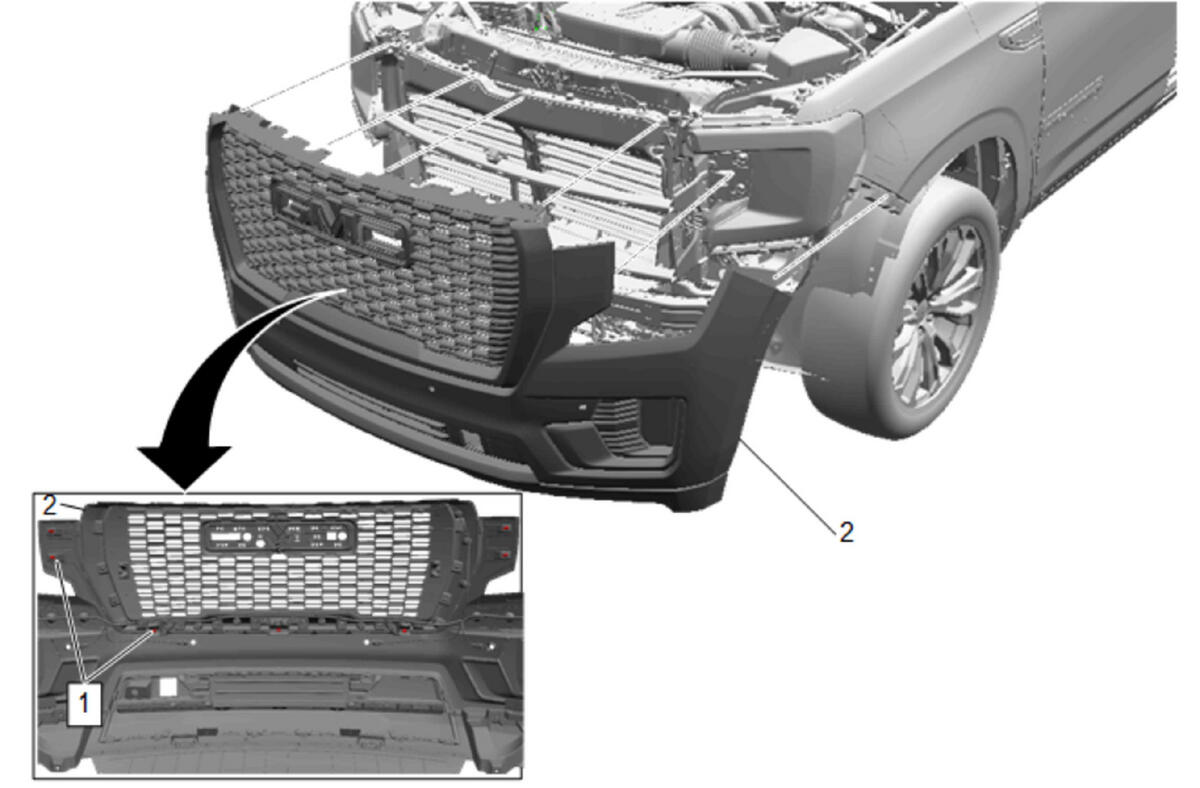

  6. GM5589691Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Fascia (2) - Install - Front Bumper Fascia Removal and Installation (with WTX) , or Front Bumper Fascia Removal and Installation (with RC1)

  7. Perform the forward range radar sensor module learn. Radar Sensor Module - Long Range Learn
