Fastener Specifications

GM5657039Courtesy of GENERAL MOTORS COMPANY
Back Body Opening Side Molding

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Back Body Opening Side Molding Bolt - - 2.5 N.m (22 lb in) Back Body Opening Side Molding Replacement (Manual Liftgate) , or Back Body Opening Side Molding Replacement (Power Liftgate)

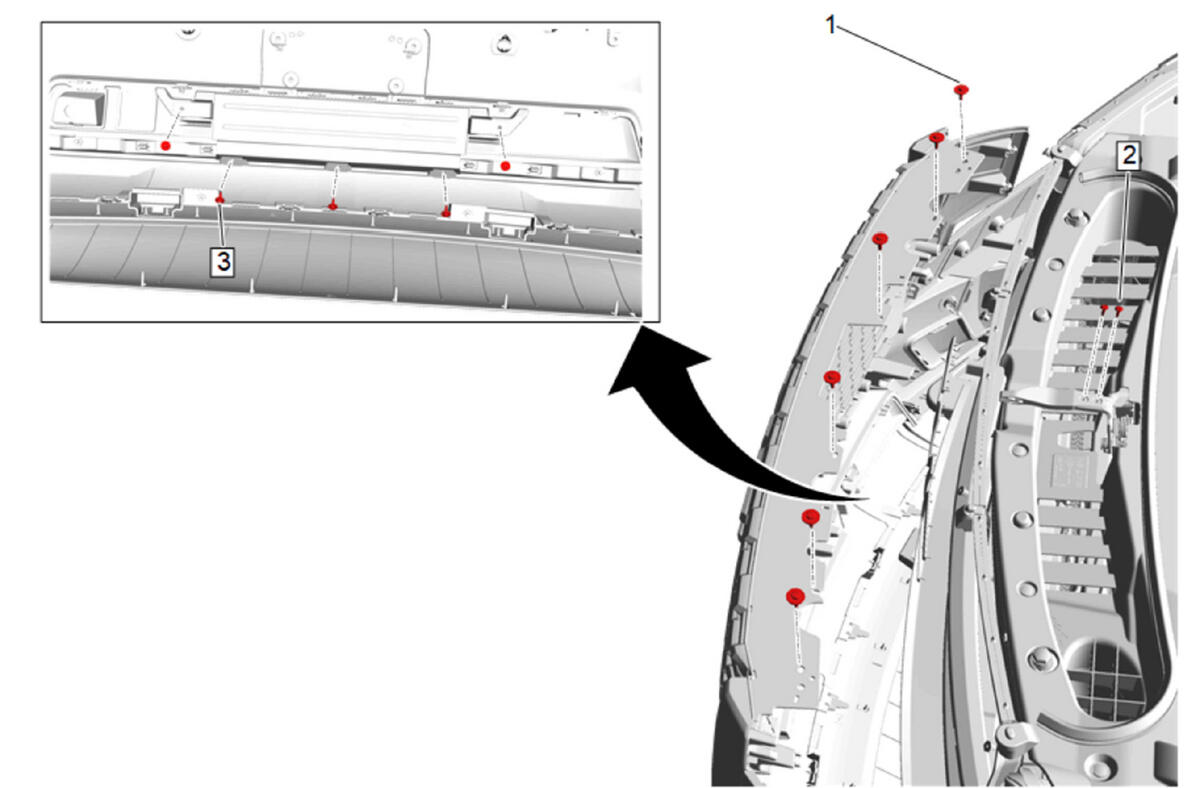

GM5600890Courtesy of GENERAL MOTORS COMPANY
Front Grille

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Grille Bolt [ 6x ] - - 7 N.m (62 lb in) Front Grille Replacement
2 Hood Latch Actuator Bolt [ 2x ] - - 2.5 N.m (22 lb in) Front Grille Replacement
3 Front Bumper Fascia Lower Bracket Bolt [ 5x ] - - 2.5 N.m (22 lb in) Front Grille Replacement

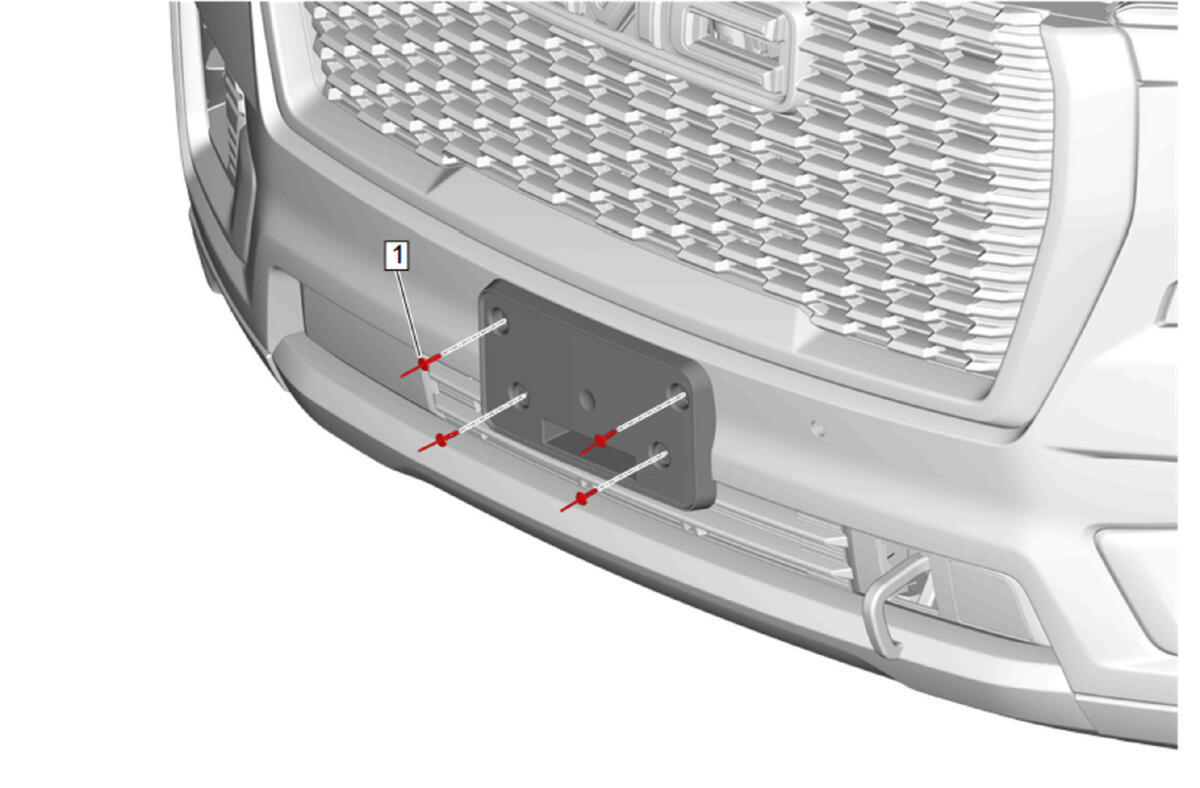

GM5606221Courtesy of GENERAL MOTORS COMPANY
Front License Plate Bracket

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front License Plate Bracket Rivet [ 4x ] Yes - - Front License Plate Bracket Replacement

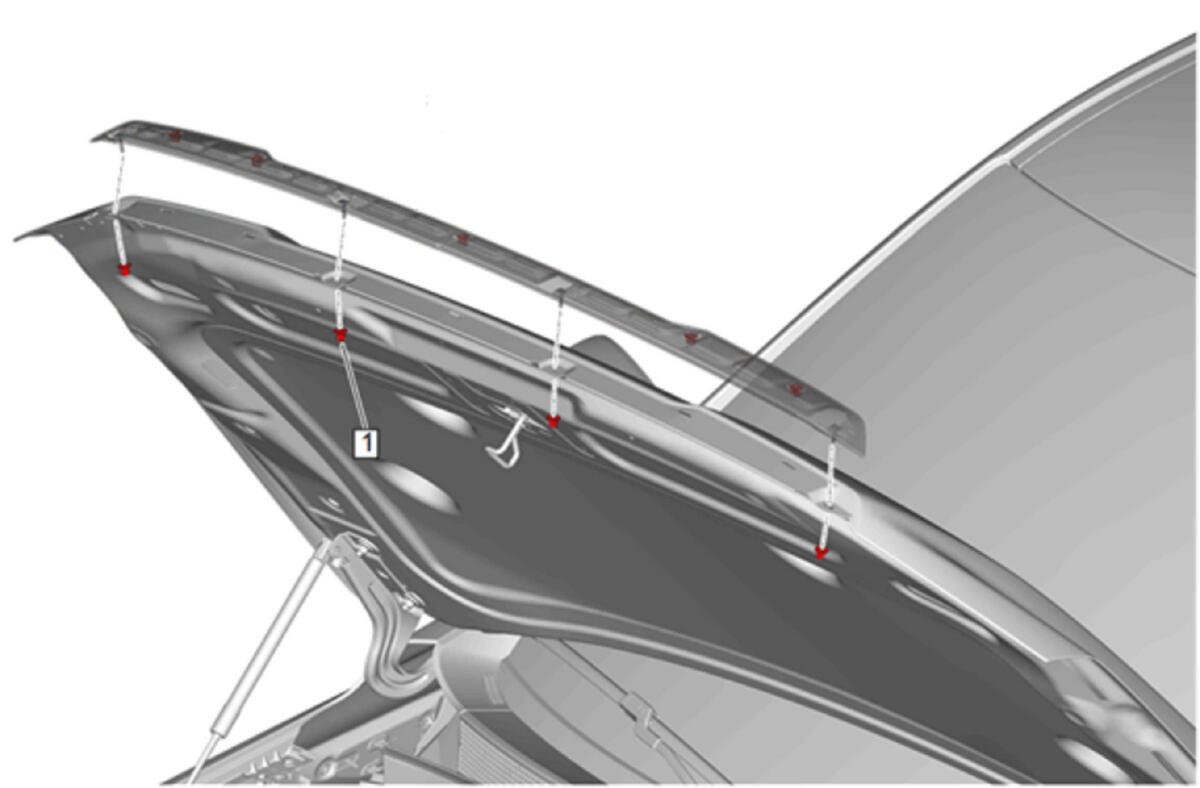

GM5765182Courtesy of GENERAL MOTORS COMPANY
Hood Front Molding

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Hood Front Molding Nut [ 4x ] - - 2.5 N.m (22 lb in) Hood Front Molding Replacement

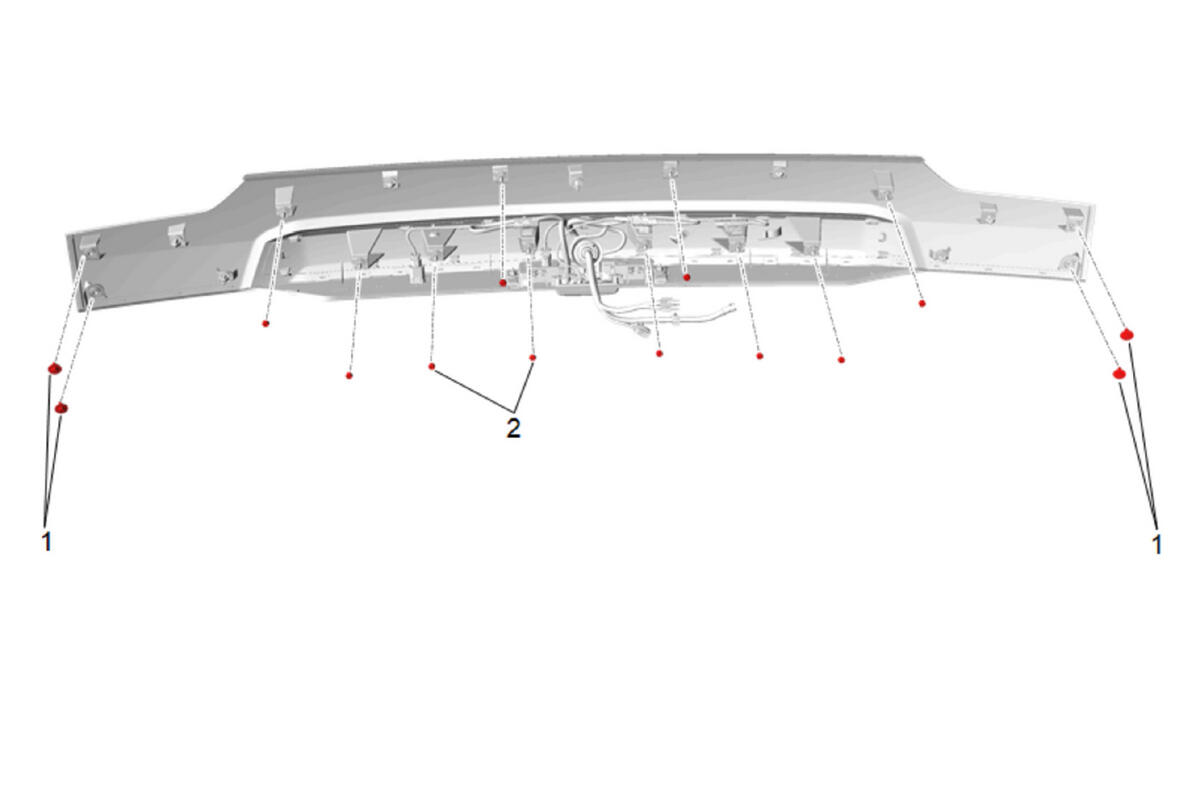

GM5606073Courtesy of GENERAL MOTORS COMPANY
Rear Applique

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Closure Center Applique Bolt [ 4x ] - - 4.7 N.m (42 lb in) Rear Closure Center Applique Replacement
2 Rear Closure Center Applique Nut [ 10x ] - - 4.7 N.m (42 lb in) Rear Closure Center Applique Replacement
GM5600892Courtesy of GENERAL MOTORS COMPANY
Rear Spoiler

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear End Spoiler Bolt [ 4x ] - - 7 N.m (62 lb in) Rear End Spoiler Replacement
2 Rear End Spoiler Bolt [ 11x ] - - 9 N.m (80 lb in) Rear End Spoiler Replacement
3 Roof Rear Spoiler Bolt [ 8x ] - - 2.5 N.m (22 lb in) Rear End Spoiler Replacement
GM5600628Courtesy of GENERAL MOTORS COMPANY
Rocker Panel

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rocker Panel Molding Bolt [ 3x ] - - 2.5 N.m (22 lb in) Rocker Panel Rear Molding Replacement (B3L) , or Rocker Panel Rear Molding Replacement (BVE)
GM5606800Courtesy of GENERAL MOTORS COMPANY
Upper Rear Side Door Opening Reveal Molding

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Upper Rear Side Door Opening Reveal Molding Rivet Yes - - Upper Rear Side Door Opening Reveal Molding Replacement
