Installation Procedure

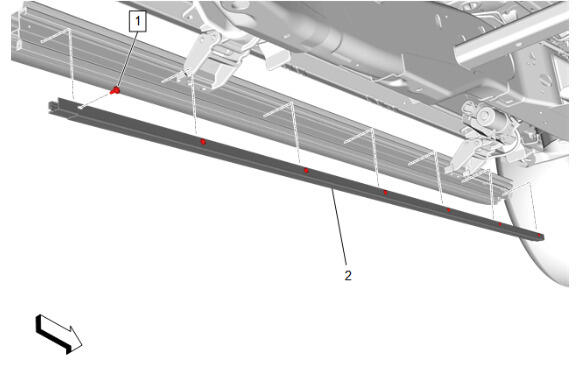

Assist Step Insert (2) - Install
- Assist Step Shield Bolt (1) - Install and tighten [ 7x ] - Fastener Specifications

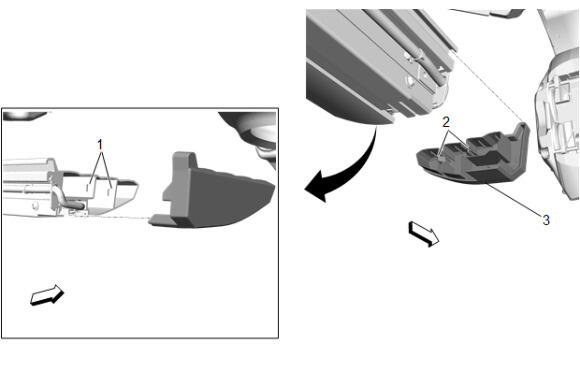

Engage the retaining tabs (2), to the slots (1) in the assist step.
- Assist Step Front Finish Cap (3) - Install

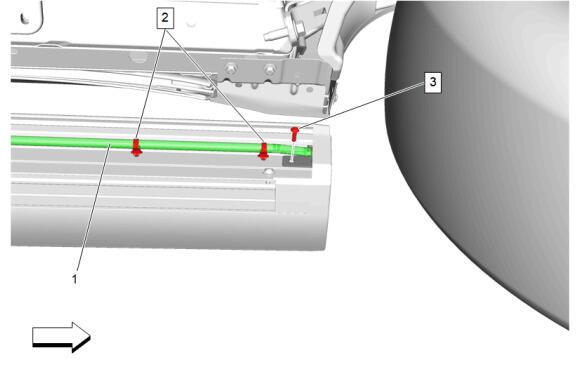

Assist Step Finish Cap Bolt (3) - Install and tighten - Fastener Specifications
- Retainer (2) - Engage [ 2x ]

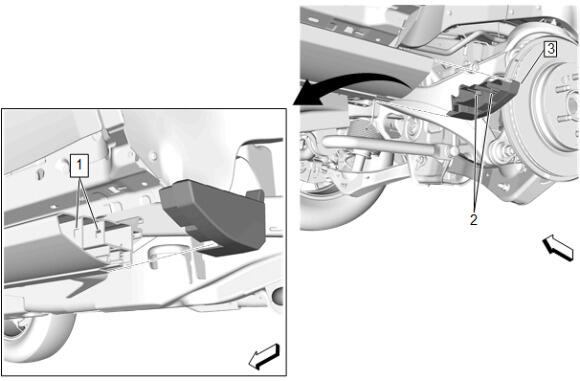

Engage the retaining tabs (2), to the slots (1) in the assist step.
- Assist Step Rear Finish Cap (3) - Install

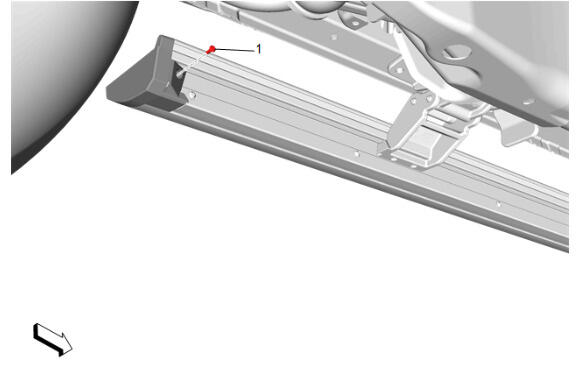

Assist Step Finish Cap Bolt (1) - Install and tighten - Fastener Specifications
- Lower the vehicle.
- Perform the assist step learn procedure. Assist Step Learn
CAUTION:
Refer to Fastener Caution .
