Installation Procedure

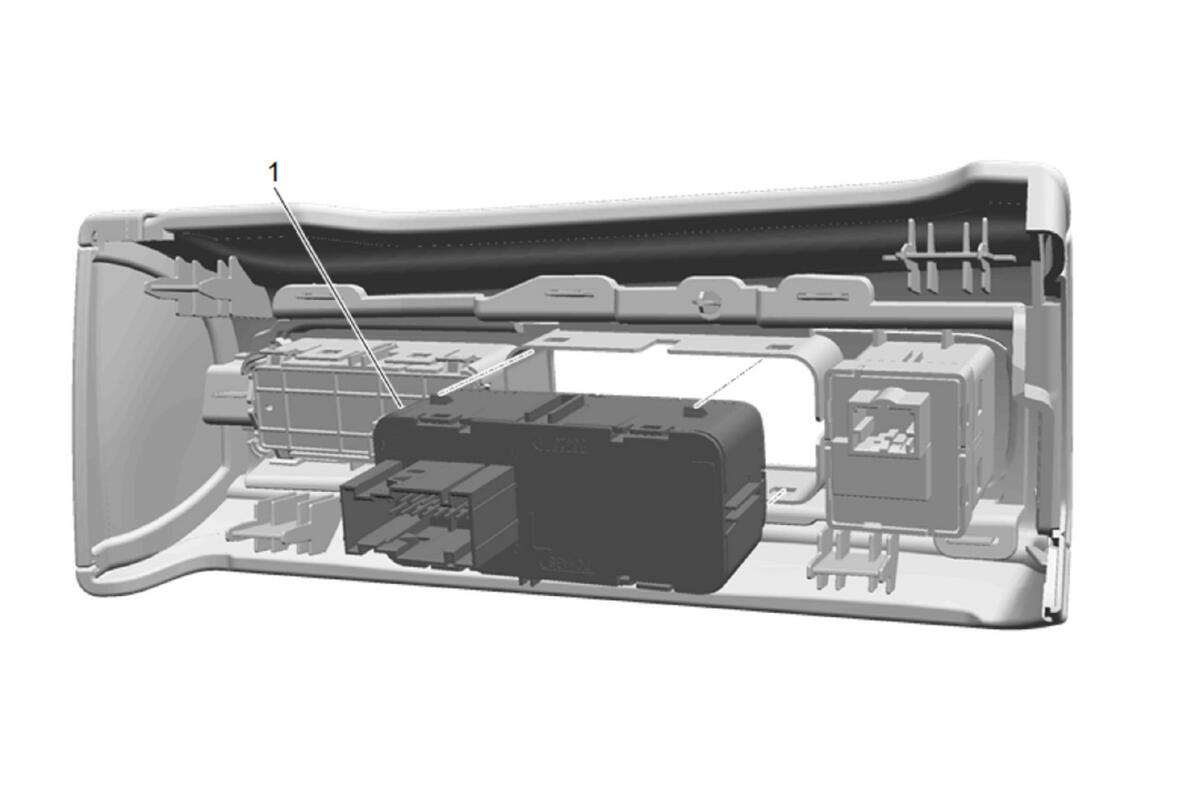

  1. GM5591859Courtesy of GENERAL MOTORS COMPANY

    Vehicle Stability Control System Switch (1) @ Instrument Panel Trim Pad - Install

  2. GM5596337Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  3. Instrument Panel Trim Pad (2) - Install
    4. CAUTION:

    Refer to Fastener Caution .

  4. Instrument Panel Trim Pad Bolt (1) - Install and tighten - Fastener Specifications
  5. GM5596335Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Fuse Block Access Hole Cover (1) - Install

  6. GM5515686Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Trim Panel Outer Filler (1) - Install
