Fastener Specifications

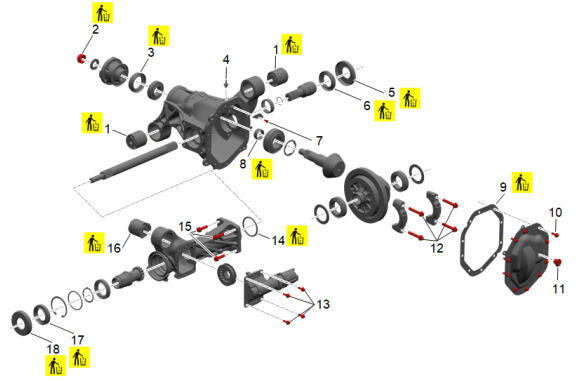

Differential Carrier and Components
| Callout | Component Name [ Component Quantity ] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Differential Carrier Bushing [ 2x ] | Yes | - | - | Front Differential Carrier Bushing Replacement (without F47)
, or Front Differential Carrier Bushing Replacement (with F47) . |
| 2 | Front Differential Drive Pinion Gear Nut | Yes | - | Used Bearings Tighten the pinion nut, in small increments, as needed, until the torque required to rotate the pinion is 0.40-0.57 N.m (3-5 lb/in) greater than the torque recorded during removal. |
Front Differential Drive Pinion Gear Yoke Replacement |
| New Bearings Tighten the pinion nut, in small increments, as needed, until the torque required to rotate the pinion is 2.9-3.9 N.m (26-35 lb/in). |
Front Differential Drive Pinion Gear Inner Bearing Replacement (without F47)
, or Front Differential Drive Pinion Gear Inner Bearing Replacement (with F47) . |
||||
| 3 | Front Differential Drive Pinion Gear Seal | Yes | - | - | Front Differential Drive Pinion Gear Seal Replacement |
| 4 | Front Differential Carrier Vent Hose Connector | - | Yes | 28 N.m (21 lb-ft) | Front Differential Carrier Assembly Replacement (without F47)
, or Front Differential Carrier Assembly Replacement (with F47) . |
| 5 | Front Wheel Drive Shaft Slinger | Yes | - | - | Front Wheel Drive Shaft Slinger Replacement - Left Side |
| 6 | Front Drive Axle Inner Shaft Seal | Yes | - | - | Front Drive Axle Inner Shaft Seal Replacement - Left Side |
| 7 | Front Differential Carrier Shield Bolt | - | - | 13 N.m (115 lb/in) | Front Differential Carrier Assembly Replacement (without F47)
, or Front Differential Carrier Assembly Replacement (with F47) . |
| 8 | Front Differential Drive Pinion Gear Bearing Spacer | Yes | - | - | Front Differential Drive Pinion Gear Outer Bearing Replacement (without F47)
, or Front Differential Drive Pinion Gear Outer Bearing Replacement (with F47) . |
| 9 | Front Differential Carrier Cover Gasket | Yes | - | - | Front Differential Carrier Gasket Replacement |
| 10 | Front Differential Carrier Cover Bolt [ 10x ] | - | Yes | First Pass: 25 N.m (18 lb-ft) Final Pass: 30 degrees |
Front Differential Carrier Cover and Gasket Replacement |
| 11 | Front Differential Carrier Oil Filler Plug | - | - | 35 N.m (26 lb-ft) | Front Axle Lubricant Replacement |
| 12 | Front Differential Bearing Cap Bolt [ 4x ] | - | - | First Pass: 30 N.m (22 lb-ft) Final Pass: 40 degrees |
Front Differential Assembly Replacement (without F47)
, or Front Differential Assembly Replacement (with F47) . |
| 13 | Front Drive Axle Actuator Bolt [ 4x ] | - | Yes | 22 N.m (16 lb-ft) | Front Drive Axle Actuator Replacement |
| 14 | Front Wheel Drive Intermediate Shaft Seal | Yes | - | - | Front Wheel Drive Intermediate Shaft Seal Replacement |
| 15 | Front Drive Axle Inner Shaft Housing Bolt [ 4x ] | - | Yes | First Pass: 40 N.m (30 lb-ft) Final Pass: 30 degrees |
Front Drive Axle Inner Shaft Housing Replacement |
| 16 | Front Differential Carrier Bushing | Yes | - | - | Front Differential Carrier Bushing Replacement (without F47)
, or Front Differential Carrier Bushing Replacement (with F47) . |
| 17 | Front Wheel Drive Shaft Seal | Yes | - | - | Front Wheel Drive Shaft Seal Replacement - Right Side |
| 18 | Front Wheel Drive Shaft Slinger | Yes | - | - | Front Wheel Drive Shaft Slinger Replacement - Right Side |

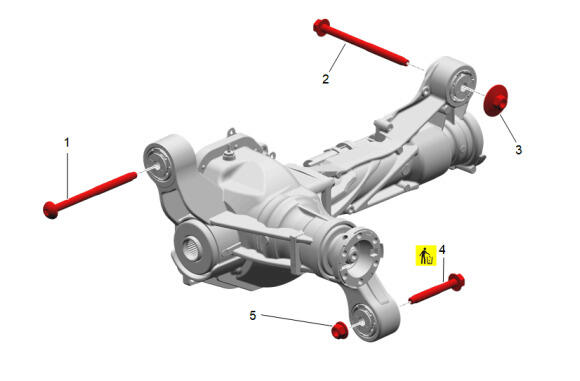

Differential Carrier Mounting
| Callout | Component Name [ Component Quantity ] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Differential Carrier Bolt | - | - | 95 N.m (70 lb-ft) | Front Axle Replacement (without F47)
, or Front Axle Replacement (with F47) . |
| 2 | Front Differential Carrier Bolt | - | - | - | Front Axle Replacement (without F47)
, or Front Axle Replacement (with F47) . |
| 3 | Front Differential Carrier Bracket Nut | - | - | 130 N.m (96 lb-ft) | Front Axle Replacement (without F47)
, or Front Axle Replacement (with F47) . |
| 4 | Front Differential Carrier Bolt | Yes | - | - | Front Axle Replacement (without F47)
, or Front Axle Replacement (with F47) . |
| 5 | Front Differential Carrier Nut | - | - | First Pass: 115 N.m (85 lb-ft) Final Pass: 68 degrees |
Front Axle Replacement (without F47)
, or Front Axle Replacement (with F47) . |
