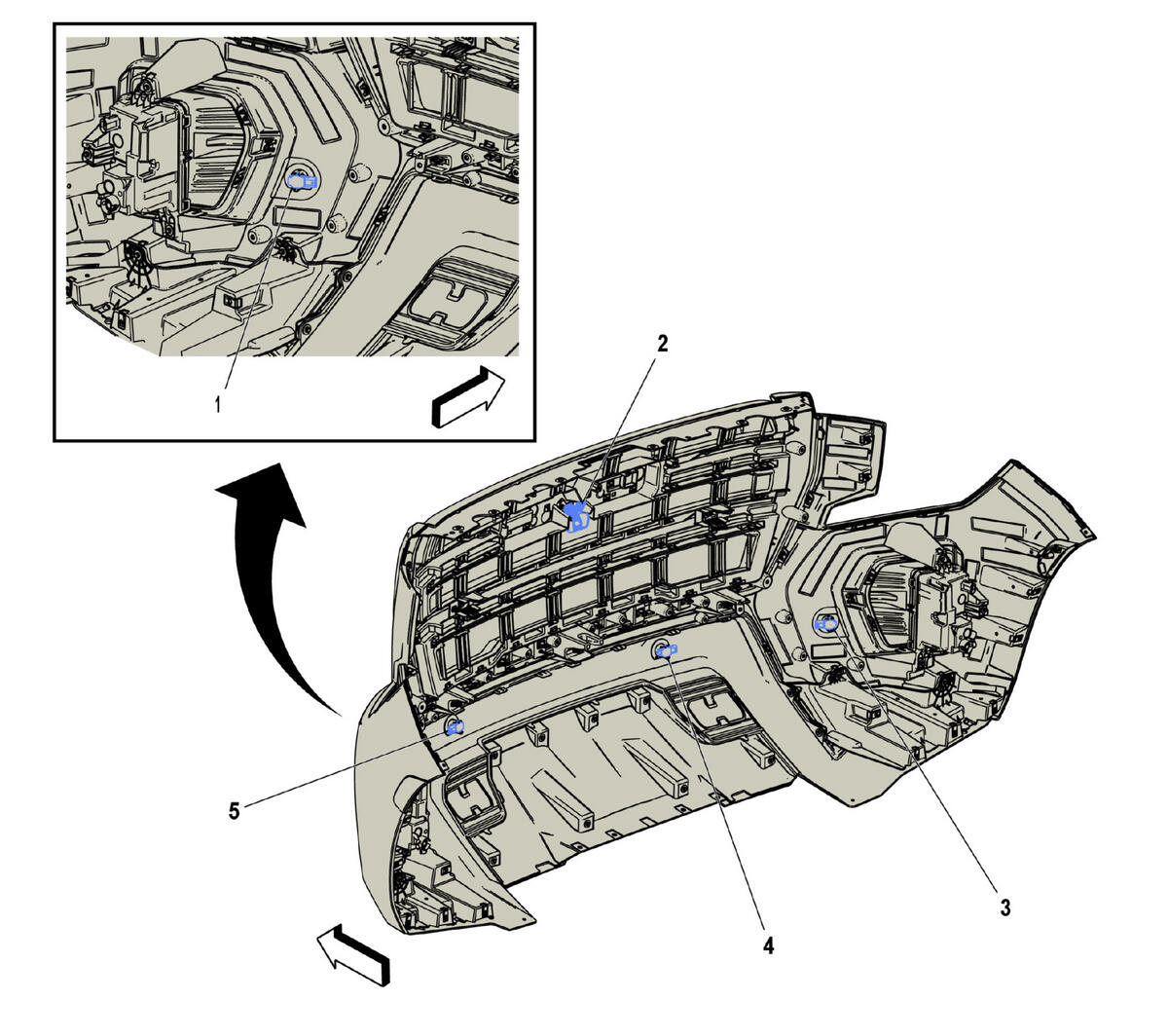

Front Fascia Components
Front Fascia Components
| Component Name | Callout |
|---|---|
| B306A Parking Assist Alarm Sensor - Front Left Outer (UD5) B306A Parking Assist Alarm Sensor - Front Left Outer (UD5/UD7) | 1 |
| B174G Front View Driver Information Camera - Grille (UV2) B174G Front View Driver Information Camera - Grille (UV2/UVS) | 2 |
| B306D Parking Assist Alarm Sensor - Front Right Outer (UD5) B306D Parking Assist Alarm Sensor - Front Right Outer (UD5/UD7) | 3 |
| B306C Parking Assist Alarm Sensor - Front Right Middle (UD5) B306C Parking Assist Alarm Sensor - Front Right Middle (UD5/UD7) | 4 |
| B306B Parking Assist Alarm Sensor - Front Left Middle (UD5) B306B Parking Assist Alarm Sensor - Front Left Middle (UD5/UD7) | 5 |
