Fastener Specifications

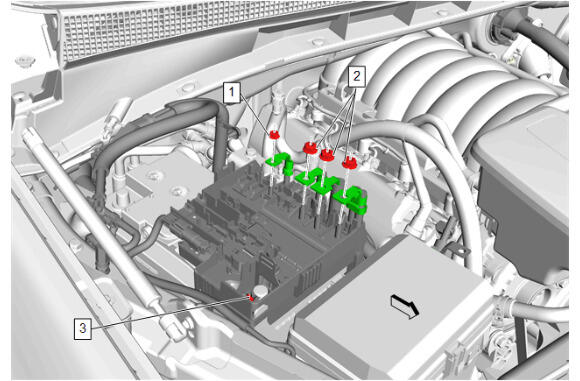

GM5590583Courtesy of GENERAL MOTORS COMPANY
Battery Distribution Engine Compartment Fuse Block (L84, L87)

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Battery Positive Cable Nut - - 6 N.m (53 lb/in) Battery Distribution Engine Compartment Fuse Block Replacement (L84, L87) , or Battery Distribution Engine Compartment Fuse Block Replacement (LM2)
2 Battery Positive Cable Nut [ 3x ] - - 15 N.m (11 lb-ft) Battery Distribution Engine Compartment Fuse Block Replacement (L84, L87) , or Battery Distribution Engine Compartment Fuse Block Replacement (LM2)
3 Battery Positive Post Clamp Nut - - 4.5 N.m (40 lb/in) Battery Distribution Engine Compartment Fuse Block Replacement (L84, L87) , or Battery Distribution Engine Compartment Fuse Block Replacement (LM2)

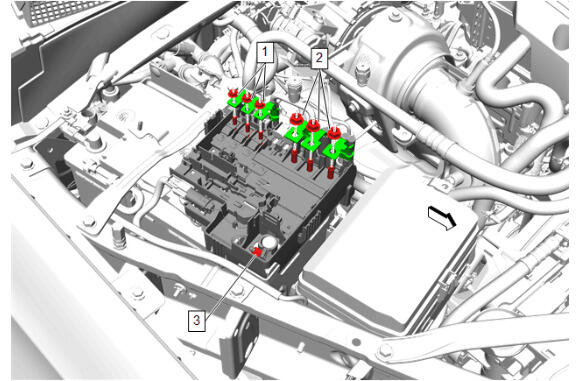

GM5619259Courtesy of GENERAL MOTORS COMPANY
Battery Distribution Engine Compartment Fuse Block (LM2)

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Battery Positive Cable Nut [ 3x ] - - 6 N.m (53 lb/in) Battery Distribution Engine Compartment Fuse Block Replacement (L84, L87) , or Battery Distribution Engine Compartment Fuse Block Replacement (LM2)
2 Battery Positive Cable Nut [ 3x ] - - 15 N.m (11 lb-ft) Battery Distribution Engine Compartment Fuse Block Replacement (L84, L87) , or Battery Distribution Engine Compartment Fuse Block Replacement (LM2)
3 Battery Positive Post Clamp Nut - - 4.5 N.m (40 lb/in) Battery Distribution Engine Compartment Fuse Block Replacement (L84, L87) , or Battery Distribution Engine Compartment Fuse Block Replacement (LM2)

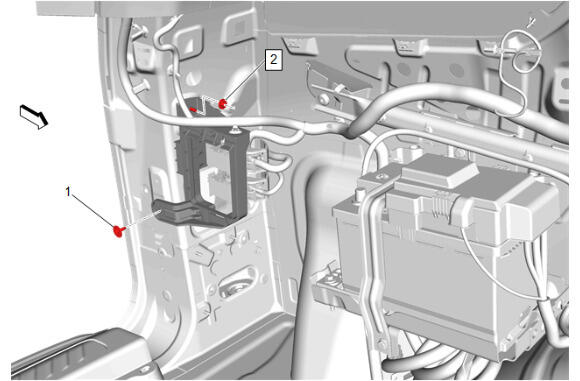

GM5591331Courtesy of GENERAL MOTORS COMPANY
Rear Body Fuse Block Bracket

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Rear Body Fuse Block Bolt - - 9 N.m (80 lb/in) Rear Body Fuse Block Bracket Replacement
2 Body Wiring Harness Junction Block Bracket Nut - - 9 N.m (80 lb/in) Rear Body Fuse Block Bracket Replacement
